Wireless Backup Camera System for Farm Tractor, Combine, Cultivator, Plough, Trailer, Truck, Barn Vision

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Western Union

Model NO.:DF-5362362

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DF-5362362

Technology:Infrared

Style:Bullet Camera

Type:CCTV Camera

Sensor:CCD

Horizontal Resolution:420tvl

Kind:Autofocus Lens

Certification:CE, FCC, RoHS, ISO9001: 2000

Feature:Waterproof / Weatherproof, High Definition, Mini Size

Sensor Size:1/3 inch

Remote Control:Without Remote Control

Export Markets:Global

Product Description

Wireless Backup Camera System for Farm Tractor, Combine,Cultivator,Plough,Trailer,Truck,Barn Vision

Digital Wireless Camera Monitor Systems
5"Digital Screen TFT LCD Monitor Built-in 2.4GHz Digital Wireless Receiver,Graphical
menu Image automatic cycle mode, night mode settings, reversing ruler settings,
reversing the priority function is triggered;
Picture Mode sub-screen, two screens
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing
DC14~+87V(Td400mS) 5pulses Load Dump,300cd/m2 Brightnes
2.4GHz Digital Wireless Camera Aluminum Camera IP69K Waterproof and 10G Vibration,
IR LEDs for Night Vision
Free Operating Voltage: DC10~32V
Wireless Backup Camera System for Farm Tractor, Combine, Cultivator, Plough, Trailer, Truck, Barn Vision

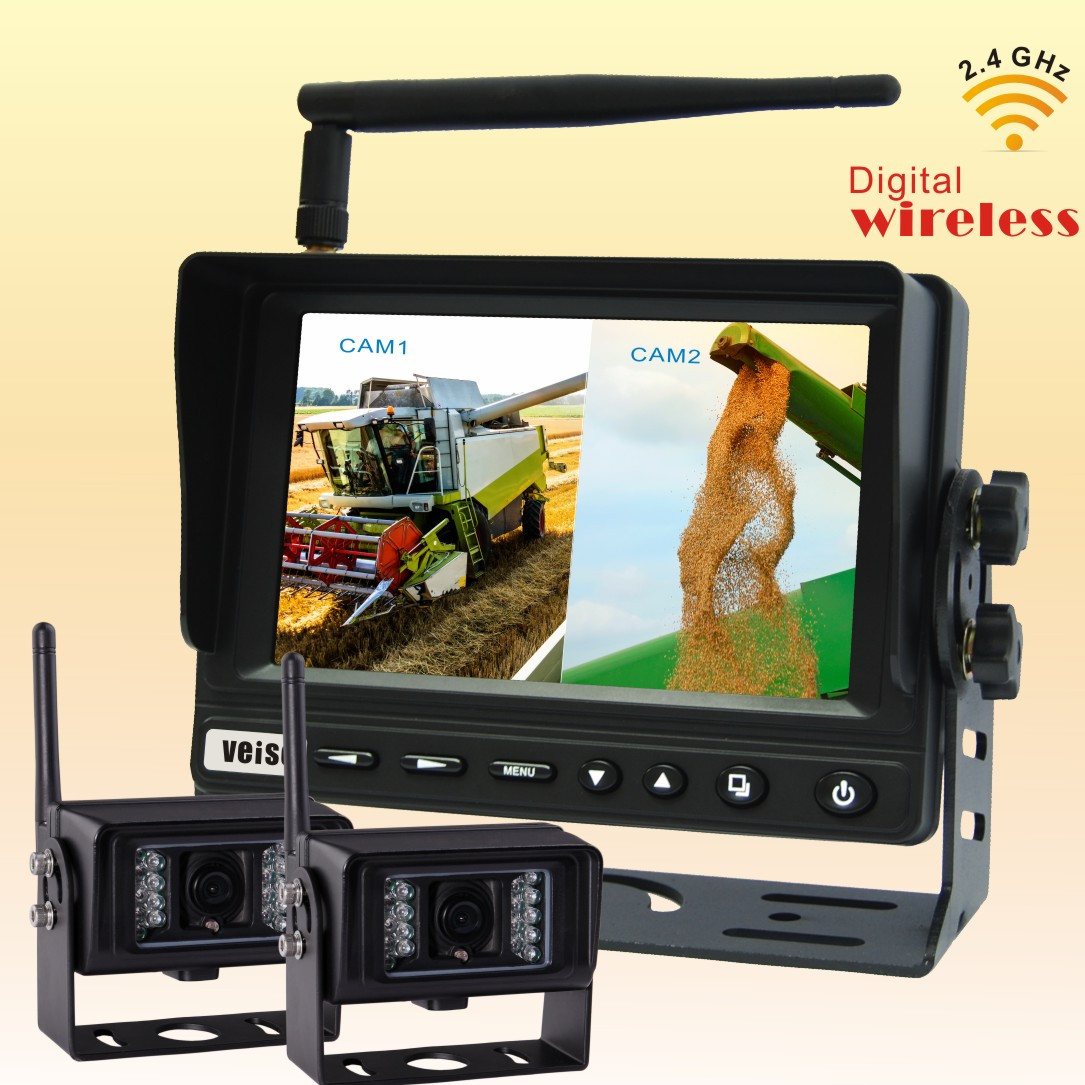

Digital Wireless Monitor Camera system

Digital Wireless Receive Monitor(Model:SP-536)

5" Digital Screen TFT LCD Monitor

Built in 2 CH 2.4GHz Digital Wireless Receiver

Operation Frequency:2400 ~ 2483.5MHz

Receiving Sensitivity:?-86dBm(1MHZ QPSK MD300RE)

Overlapping Hopping Channel:80

Color System:PAL/NTSC

Display Resolution: 800RGB(H) X 480(V) dot

Wide view angle(CR>10):(up/ down): 70/70 (left/right): 50/70

Brightness (cd/m2): 300

Contrast ratio: 500:1

Operating temperature: -20ºC to +70ºC

Storage temperature: -30ºC to +80ºC

Free Operating Voltage: DC10~32V

External dimensions:(L x W x T) (139X100X49mm)

Weight Approx: 450g

Digital Wireless Waterproof IR Camera(MODEL:DF-8275H-SFS*2)

Image Type: 1/3 inch Color CMOS

Built in 2.4GHz Digital wireless transmitter

Transmission Power:18dBm with Power control

Line of Sight Range:?100M

Horizontal Resolution:500TV Lines

Effective pixel:NTSC:720(H)X480(V);PAL:720(H)X480(V)

Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark)

Free viewing angle: 120°

Waterproof: IP69K

Shockproof: 10G

Free Operating Voltage: DC10-32 Volts

Dimensions: 106(W) x 75(H) x 70.4(D) mm (without mounting)

Weight : 450g

Accessorie

U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,Antenna*3,User's Manual
