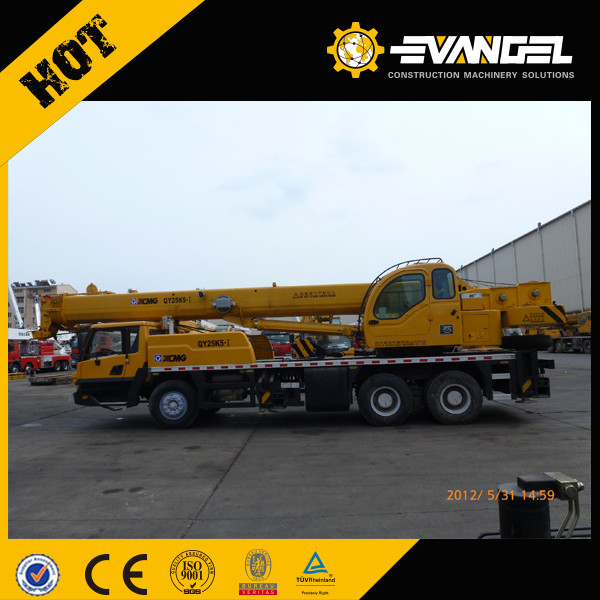

XCMG 25 Ton Truck Crane New Model Qy25k-II

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1000.0-20000.0/ Piece

Price:$1000.0 - $20000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jun 01, 2015 To Sep 20, 2020

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QY25K-II

Type:Small Crane

Application:Construction Usage, Workshop Usage, Container Usage, Mineral Area Usage

Power Source:Hydraulic

Moving Type:Wheel

Certification:ISO9001: 2000, CE

Condition:New

Color:Yellow

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Seaworthy Packing

Standard:ISO

Origin:Xuzhou, China

Production Capacity:50 Sets/Month

Product Description

XCMG 25 Ton Truck Crane New Model QY25K-II

We are constantly devoting ourselves to the development of the new cranes by applying the latest techniques. The new products will have strong functions and be more adaptive to the customers. QY25K truck crane was developed by our company in 2000. Through constant upgrade, the travel and working performance are greatly improved. The chassis is three-axle which has strong power and cross-country capacity. The jib is optimized octagon section, which has excellent lifting capacity. The control system adopts hydraulic proportional (mechanical) control technique.

Dimension	Unit	QY25K-II
Overall length	mm	12550
Overall width	mm	2500
Overall height	mm	3380
Weight
Total weight in travel	kg	29400
Front axle load	kg	6200
Rear axle load	kg	23200
Power
Engine model		SC8DK280Q3 / WD615.329(domestic III)
Engine rated power	kW/(r/min)	206/2200 213/2200
Engine rated torque	N.m/(r/min)	1112/1400 1160/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	22
Min. ground clearance	mm	260
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	30
Fuel consumption for 100km	L	?37
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	1000
Base boom	m	10.6
Fully extended boom	m	34
Fully extended boom+jib	m	42.15
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	75
Boom full extension time	s	100
Max. swing speed	r/min	?2.5
Max. speed of main winch (single rope)	m/min	?120
Max. speed of aux. winch (single rope)	m/min	?120
