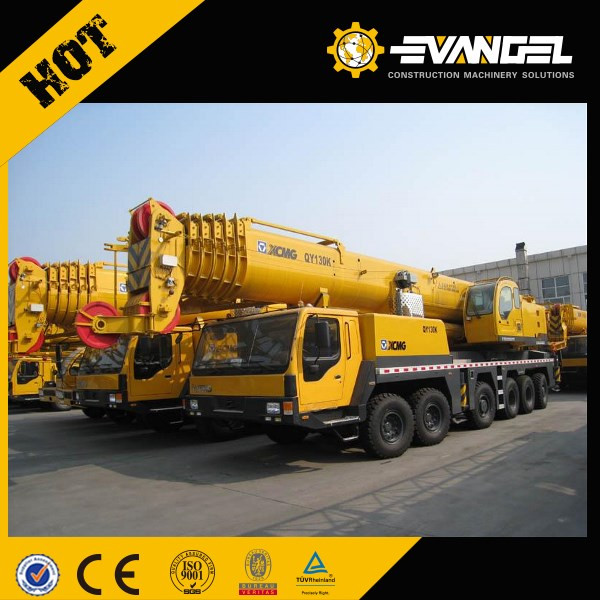

XCMG Construction Equipment , 130 Ton All Terrain Crane (QAY130)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 300000/ Piece

Price:US $300000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Nov 23, 2014 To Feb 21, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QAY130

Type:Single Girder Crane

Application:Construction Usage, Workshop Usage, Container Usage, Mineral Area Usage

Sling Type:Cable

Power Source:Hydraulic

Certification:ISO9001: 2000

Condition:New

Size:15028*3000*3950mm

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Suitable Package for Shipment

Standard:ISO, CE

Origin:Xuzhou, China

HS Code:87051091

Production Capacity:5000sets/Month

Product Description

XCMG QAY130 Features:

QAY130 All Terrain Crane is a new generation high performance all terrain crane designed on the absorption of the world advanced crane technology and combination of international modern all terrain crane development with advanced design idea and methods. The crane product features beautiful appearance, reasonable arrangement, compact structure, excellent performance and high competition. In design and manufacture process, lots of top-ranking technical problems in the industry have been settled, and these technology are applied in the crane such as computer integrated control, single cylinder telescoping and pinning, oviform boom profile, hydro-pneumatic suspension, all-wheel steering and multi-axle drive, etc. The overall machine performance reaches the world advanced level.

Classificatory	Item					Unit	Parameter
Outline dimension	Overall length					mm	15028
	Overall width					mm	3000
	Overall height					mm	3950
	Wheel base			Axle 1		mm	2750
				Axle 2			1620
				Axle 3			2000
				Axle 4			1620
	Track					mm	2610
Mass	Total mass in travel state					kg	57000
	Axle load		Axle 1			kg	11000
			Axle 2			Kg	11000
			Axle 3			Kg	11000
			Axle 4			Kg	12000
			Axle 5			Kg	12000
Power	Engine rated output					kW/(r/min)	324/1800
	Engine rated torque					N.m/(r/min)	2100/1200
	Engine rated speed					r/min	1800
Travel performance	Travel speed	Max. travel speed				km/h	76
		Min. stable travel speed				km/h	0~7.5
	Turning radius	Min. turning diameter			Front axle steering	m	24
					All axles steering	m	18
		Min. turning diameter at boom tip			Front axle steering	m	29.6
					All axles steering	m	23.6
	Min. ground clearance					mm	300
	Approach angle					°	24
	Departure angle					°	17
	Braking distance (at 30km/h with full load)					m	?10
	Max. grade-ability					%	45
	Fuel consumption for 100km					l	70

Classificatory	Item			Unit	Parameter
Main performance	Max. rated lifting capacity			t	130
	Min. rated radius			m	3
	Turning radius at turntable tail			mm	3958
	Swing radius at counterweight tail			mm	4450
	Swing radius at auxiliary winch tail			mm	4878
	Max. load moment	Base boom		kN.m	4120 ( 4m *105t)
		Fully extended boom		kN.m	1420 ( 12m*12.1t)
		Fully extended boom + Jib		kN.m	1377 ( 26m*5.4t)
	Outrigger span (fully extended)	Longitudinal		m	8.0
		Lateral		m	7.5
	Hoist height	Base boom		m	12.2
		Fully extended boom		m	50
		Fully extended boom + Jib		m	70
	Boom length	Base boom		m	12.8
		Fully extended boom		m	50
		Fully extended boom + Jib		m	70
	Jib offset			°	0 , 15 ,30
Working speed	Boom elevating time	Boom rising		s	60
	Boom telescoping time	Full extension/retraction		s	360/320
	Max. swing speed			r/min	2
	Outrigger telescoping time	Outrigger beam	Synchronous extension	s	30
			Synchronous retraction	s	25
		Outrigger jack	Synchronous extension	s	40
			Synchronous retraction	s	35
	Hoist speed (single rope at 4th layer)	Main winch		m/min	100
		Auxiliary winch		m/min	100
Noise	Crane exterior noise			dB (A )	?118
	At seated position			dB(A )	?90
