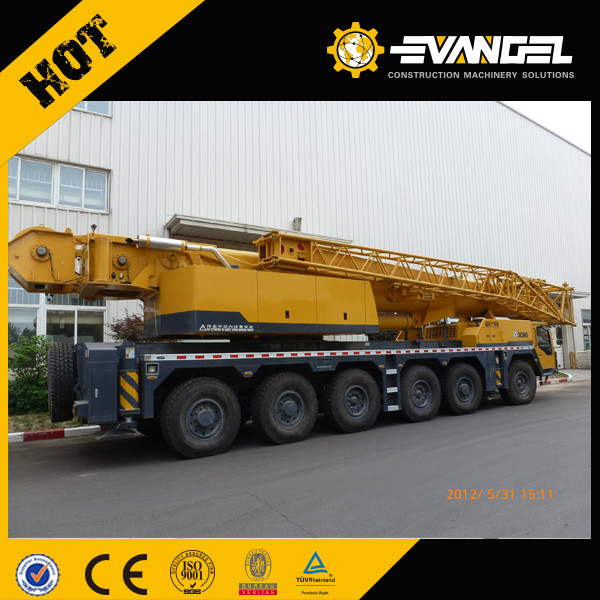

XCMG Lifting Machinery 35ton Truck Crane (QY35K5)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 160000/ Piece

Price:US $160000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jun 11, 2015 To Sep 11, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QY35K5

Type:Bridge Crane

Application:Construction Usage

Sling Type:Wire Rope

Power Source:Hydraulic

Moving Type:Wheel

Installation:Assembled

Certification:CE

Condition:New

Color:Golden Yellow

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Nude

Standard:ce

Origin:Jiangsu, China

Production Capacity:200 Sets/Month

Product Description

Feature

Wide cab
Five-segment U section boom
Single cylinder luffing and double-winch
Manual mechanical control
Spacious and luxury streamline cab

U boom system
Constantly optimize the boom section, completely releasing the carrying capacity of the plates, which makes the lifting more reliable and safer.

Compact boom head
Extend the jib length, which can extend the working radius to the most.

Hydraulic pipeline
The pipeline adopts high-precision cold drawing steel pipe, matching with the cutting ferrule, which is good looking and easy to maintain.

Operating cab
It has large space and wide views. The control levers and instrument buttons are at hand.

Torque limiter
The colorful LCD display of the torque limiter can shows all the important operating information.

Engine
Reasonable matching, energy efficiency and environmental protection, and strong power meet the economical running of the required power.

Dimension	Unit	QY35K5
Overall length	mm	12620
Overall width	mm	2500
Overall height	mm	3350
Weight
Total weight in travel	kg	36930
Front axle load	kg	12330
Rear axle load	kg	24600
Power
Engine model		SC9DK320Q3
Engine rated power	kW/(r/min)	235 / 2200
Engine rated torque	N. m/(r/min)	1250 / 1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	19.5
Min. ground clearance	mm	260
Approach angle	°	17
Departure angle	°	15.7
Max. grade ability	%	40
Fuel consumption for 100km	L	30
Main performance
Max. rated total lifting capacity	t	35
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.055
Max. lifting torque	kN. m	1200
Base boom	m	10.5
Fully extended boom	m	39.6
Fully extended boom+jib	m	54.6
Longitudinal outrigger span	m	5.35
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	68
Boom full extension time	s	? 155
Max. swing speed	r/min	? 2.5
Max. speed of main winch (single rope)	m/min	? 130
Max. speed of aux. winch (single rope)	m/min	? 130
