XCMG QY50K-II Truck Crane for Sale

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 210000/ Piece

Price:US $210000.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Paypal

Price Valid Time:From Mar 28, 2014 To Jun 28, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QY50K-II

Type:Truck Crane

Application:Construction Usage

Sling Type:Wire Rope

Power Source:Hydraulic

Certification:ISO9001: 2000

Condition:New

Engine Model:D6114

Max. Travel Speed:72km/H

Engine Rated Output:158/2200 Kw/(R/Min)

Max. Total Rated Lifting Capacity:12ton

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:N/P

Standard:CE Certification, ISO9001

Origin:Jiangsu, China

HS Code:87051092

Production Capacity:30sets/ Month

Product Description

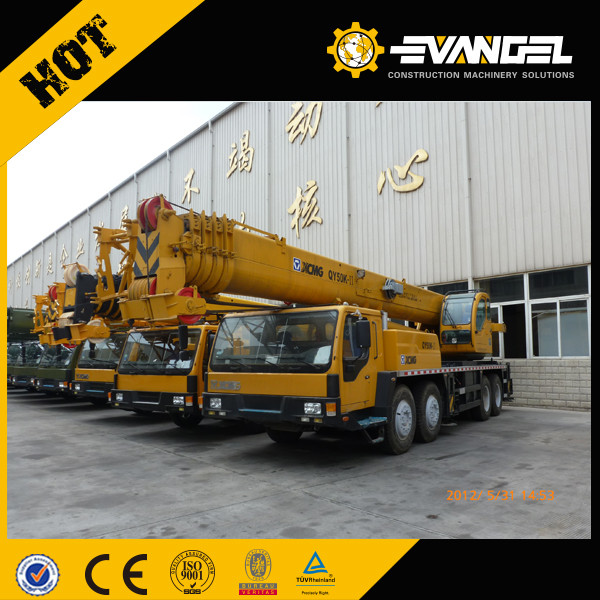

50TON lifting machinery XCMG Truck Crane QY50K-II
1. Four axles
2. Hangzhou (247KW) EURO III, full coverage board and strengthened chassis parts
3. 5-section U-shape mast booms 42.7m and two jibs 15m, dual independent winch, Hirschman force limiter
4. Cooling and heating air conditioner and heat emitter and five outriggers
5. Full head cab, hydraulic pilot.

Dimension	Unit	QY50K-II
Overall length	mm	13750
Overall width	mm	2800
Overall height	mm	3520
Weight
Total weight in travel	kg	41000
Front axle load	kg	15000
Rear axle load	kg	26000
Power
Engine model		WD615.334(domestic III)
Engine rated power	kW/(r/min)	247/2200
Engine rated torque	N. m/(r/min)	1350/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	291
Approach angle	°	17
Departure angle	°	11
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Main performance
Max. rated total lifting capacity	t	50
Min. rated working radius	m	3
Turning radius at turntable tail	m	3.482
Max. lifting torque	kN. m	1764
Base boom	m	11.3
Fully extended boom	m	42.7
Fully extended boom+ jib	m	57.7
Longitudinal outrigger span	m	5.91
Lateral outrigger span	m	6.9
Working speed
Boom luffing time	s	88
Boom full extension time	s	180
Max. swing speed	r/min	? 2.0
Max. speed of main winch (single rope) (no load)	m/min	? 110
Max. speed of aux. winch (single rope) (no load)	m/min	? 110
