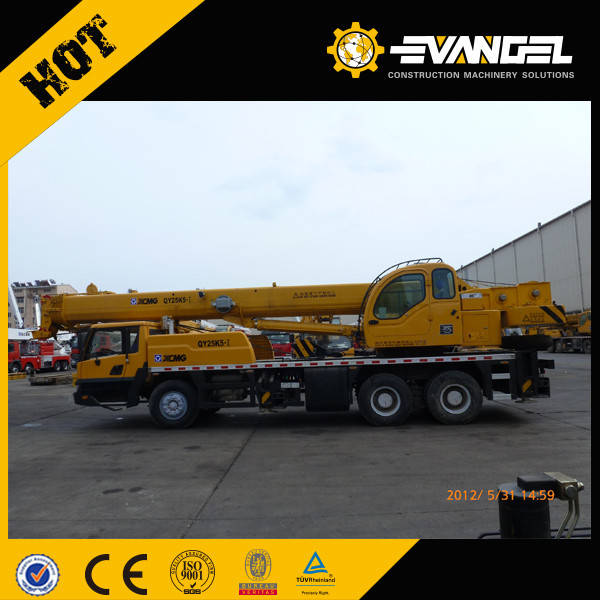

XCMG Truck Crane (QY25K)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 100000/ Piece

Price:US $100000.0 / Piece

Trade Terms: CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 17, 2015 To Jul 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QY25K

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:XCMG

Packing:Nude

Standard:Domestic II

Origin:Jiangsu, China

Production Capacity:30 Sets Per Month

Product Description

Xcmg 25 ton truck crane qy25k
1. Three axles
2. Shangchai (206kw) or hangzhou (213kw) euro ii, full coverage board
3.4-section dodecagon main boom
33m and one jib 8.15m, dual independent winch, hirschman force limiter
4. Cooling and heating air conditioner and heat emitter and five outriggers
5. Full head cab, mechanical manipulation
6. Total dimension(mm): 12360*2500*3380
7. Max. Operation weight(kg): 26400
The imported engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve the use security of the machine.

Dimension	Unit	QY25K
Overall length	mm	12550
Overall width	mm	2500
Overall height	mm	3380
Weight
Total weight in travel	kg	29400
Front axle load	kg	6200
Rear axle load	kg	23200
Power
Engine model		SC8DK280Q3 / WD615.329(domestic II)
Engine rated power	kW/(r/min)	206/2200 213/2200
Engine rated torque	N.m/(r/min)	1112/1400 1160/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	22
Min. ground clearance	mm	260
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	30
Fuel consumption for 100km	L	?37
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	1000
Base boom	m	10.6
Fully extended boom	m	33
Fully extended boom+jib	m	41.15
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	75
Boom full extension time	s	100
Max. swing speed	r/min	?2.5
Max. speed of main winch (single rope)	m/min	?120
Max. speed of aux. winch (single rope)	m/min	?120
