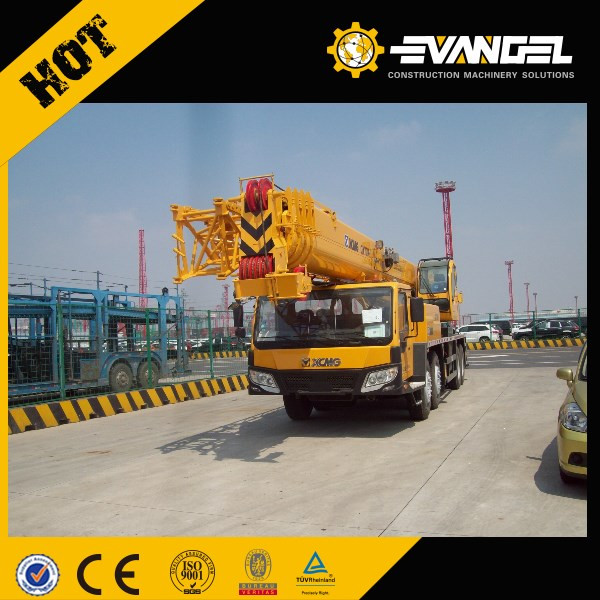

XCMG Truck Crane (QY80) 80ton CUMMINS Euro III

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Set)	Unit Price
1.0	US $ 10000/ Piece

Price:US $10000.0 / Piece

Payment Terms: L/C, T/T

Price Valid Time:From Nov 23, 2014 To Feb 21, 2015

Trademark: XCMG

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QY80

Max. Travel Speed:85 Km/H

Engine Rated Output:158/2200 Kw/(R/Min)

Max. Total Rated Lifting Capacity:80 Ton

L*W*H:14550*2750*3750

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Suitable for Ocean Shipment

Standard:CE Certification, ISO

Origin:Jiangsu, China

Production Capacity:30sets/ Month

Product Description

XCMG Truck Crane (QY80)
1. Five axles three for steering and three for driving
2. CUMMINS EURO III electric injection engine for carrier, ZF Gear box, PAT force limiter, control room on the elevation-20 °
3. 5-section U-shape mast booms and two jibs, dual independent winch, Hirschman, Electric pilot control system
4. Centralized lubrication systems, hydraulic oil radiator, full head cab, power ratio of pilot,
5. PLC integrated control system, heating and cooling air-conditioning on and off.

Classificatory	Item		Unit	Parameter
Outline dimension	Overall length		mm	14550
	Overall width		mm	2750
	Overall height		mm	3750
	Wheel base	Axle 1, Axle 2	mm	1520
		Axle 2, Axle 3	mm	2600
		Axle 3, Axle 4	mm	1600
		Axle 4, Axle 5	mm	1350
		Axle 5, Axle 6	mm	1350
	Track	Axle 1, Axle 2, Axle 3	mm	2300
	Track	Axle 3, Axle 4, Axle 5	mm	2055
Mass	Total mass in travel state		kg	60000
Travel performance	Travel speed	Max. travel speed	km/h	85
	Travel speed	Min. stable travel speed	km/h	4
	Turning radius	Min. turning radius	m	13
	Turning radius	Min. turning radius at boom tip	m	15
	Min. ground clearance		mm	270
	Approach angle		(°)	19
	Departure angle		(°)	20
	Braking distance (at 30km/h with full load)		m	?12
	Max. grade-ability		percent	22
	Fuel consumption for 100km		L	75
Power	Upper engine rated output		kW/(r/min.)	158/2200
	Upper engine rated torque		N.m/(r/min.)	770/1540
	Upper engine rated speed		rpm.	2200

Main Technical Data for Lifting Operation

Classificatory	Item				Unit	Parameter
Lifting performance	Max. total rated lifting capacity				t	80
	Min. rated working radius				m	3
	Turning radius at turntable tail				m	4.35
	Max. load moment		Base boom		kN.m	2669
			Fully extended boom + Jib		kN.m	578.8
	Outrigger span		Longitudinal		m	6.6
			Lateral		m	7
	Lifting height		Base boom		m	11.1
			Fully extended boom		m	43
			Fully extended boom + Jib		m	60
	Jib offset angle				°	0, 15, 30
Working speed	Max. swing speed				r/min	1.6
	Hoist speed (single line at 4th layer)	Main winch		Full load	m/min	55
				No load	m/min	82
		Aux. winch		Full load	m/min	70
				No load	m/min	86
