1. Introduction
The iProg Programmers are affordable, reliable, and fast universal device programmers. Supports more than 72,000 models of IC. They are designed to operate with the Intel Pentium-based IBM-compatible desktop computers and laptops. No interface card is necessary to plug the module into a PC (this feature is especially handy for laptop users).The menu-driven software interface makes them easy to operate.

1.1 Hardware Features

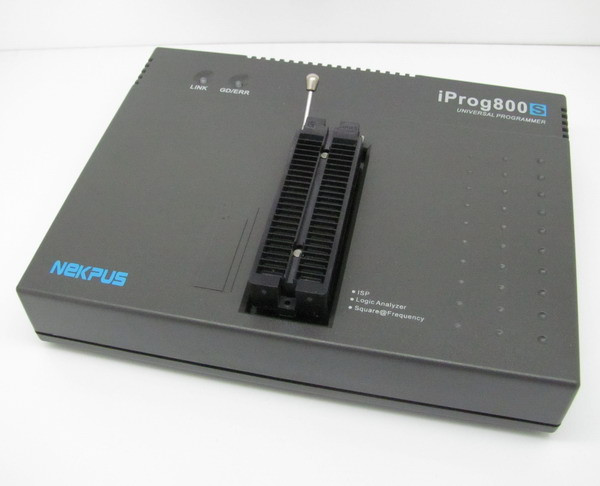

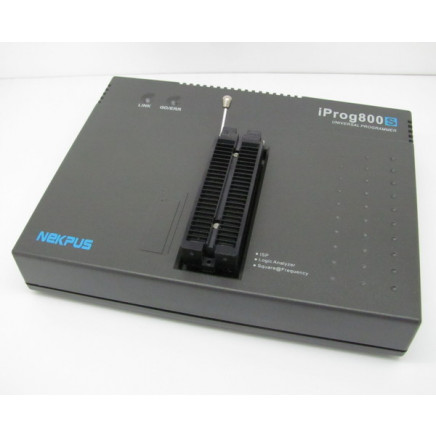

1 This programmer includes a 48-pin ZIF socket & supports 8-pin to 48-pin DIP package device.
2 With an adapter, it will support from 6 pin to 208 pin device packages like PLCC, SOIC, TSOP, PSOP,
BGA,QFP e.g.

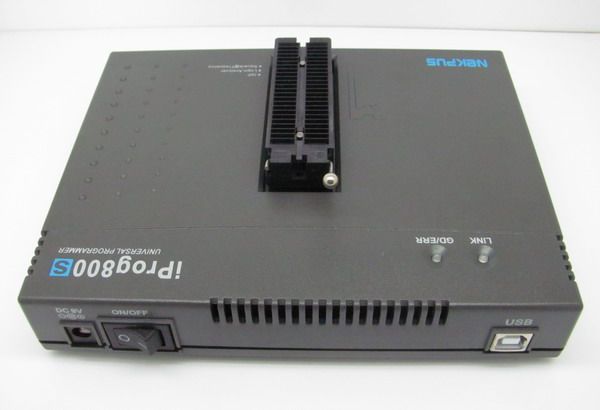

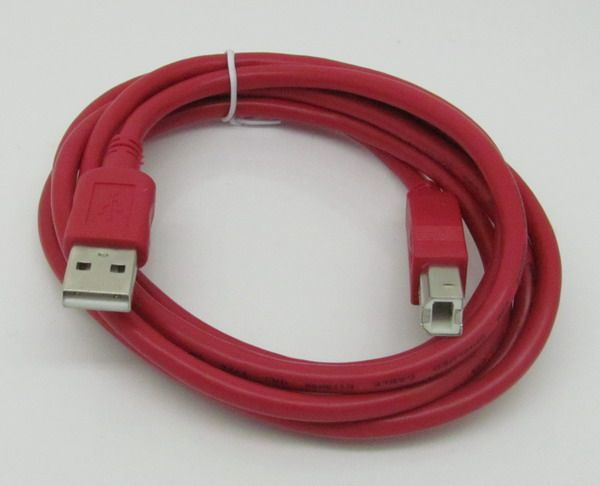

3 USB port .
4 System Update by software.

1.2 Software Features
1 Works on WINDOWS7 XP Vista Operating System.
2 User-friendly interfaces with pull-down menus, pop-up dialogue box and help.
3 Device insertion test.
4 Modify algorithm parameters.
5 Support all operations, such as program, verify, blank check, read, secure, erase and so on.
6 Set addresses intelligently, such as device start address, device end address, from buffer address and
so on.
7 Support of BINARY, Intel (linear & segmented) HEX, Motorola S, HOLTEK type, EMC(.CDS) type, INTEL
HEX16 and Tektronix (linear & segmented) formats and auto find format(except HOLTEK type and
EMC(.CDS) type).
8 Integrated editors for modifying JEDEC files, HEX files, and test vectors.
9 Auto select E(E)PROM’s manufacturer and device.
10 Select chip from manufacturer or individual device.
11 Set auto increment.
12 IC test capability for TTL and CMOS Logic ICs and auto find IC mode for unknown IC’s.
13 Open & edit and test pattern, user can also add their own test pattern.
14 Edit auto program.
15 Auto System Test.
16 Mass Production mode.
17 Signal generator.
18 Frequency Meter.
19 Logic Analyzer.
