Short description:

• 8388 supported devices from 142 manufacturers by 2.88 version of SW (4. Apr. 2012)
• small and powerful portable programmer of all 8-pins serial EEPROMs
• supports interfaces IIC (24Cxx), Microwire (93Cxx), SPI (25Cxx)
• supports programming LV (3.3V) EEPROM

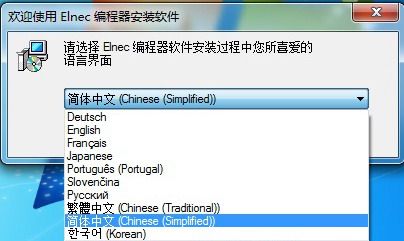

• comfortable and easy to use control program, work with all versions of MS Windows from Windows 2000 to Windows 7 64-bit
• free SW update, download from Internet

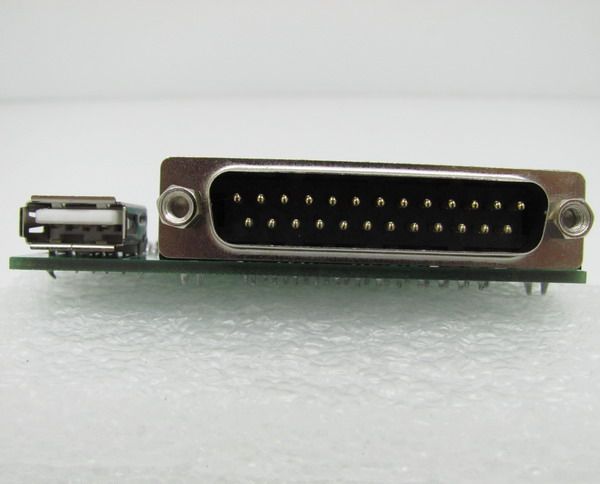

• connection to PC - VIA PRINTER PORT ONLY
• power supply, cable and SW included

Features

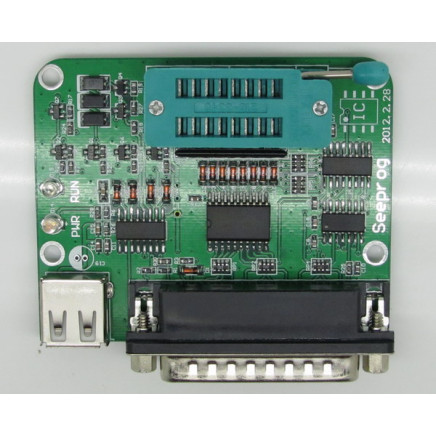

• SEEprog is universal programmer of all types of serial EEPROMs in 8-pin package. SEEprog enables programming EEPROMs with interface types IIC (24Cxx), Microwire (93Cxx) and SPI (25Cxx). Programmer supports programming LV EEPROMs (3.3V). The programmer is equipped by ZIF socket. The quality of programmer is completed by comfortable control program. SEEprog is computer peripheral, it is connecting to PC via standard parallel port.
• Free software updates are available by download

Specifications

Socket and control of pins:

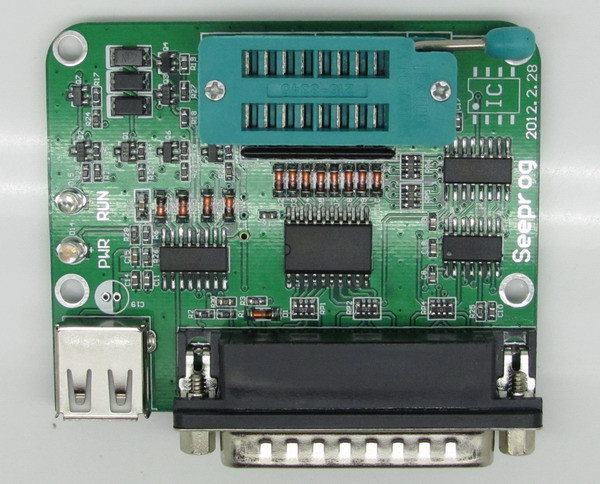

• ZIF (Zero Insertion Force) DIL socket (300mil wide)
• each pin is possible to set in position Low and H/Pull-up
• from each pin is possible to read
• support of Low Voltage devices

Supported devices:

• EEPROM I2C (24Cxxx)
• EEPROM Microwire (93Cxxx)
• EEPROM SPI (25Cxxx, 25LVxxx, 25Fxxx, 25Pxxx)
• Configuration (EE)PROM: AT17xxx, LV series including
• speciall devices (digital thermometers, ...)

Accessories including

Universal SEEPROG Programmer x 1
Parallel data line x 1
USB Cable x 1
