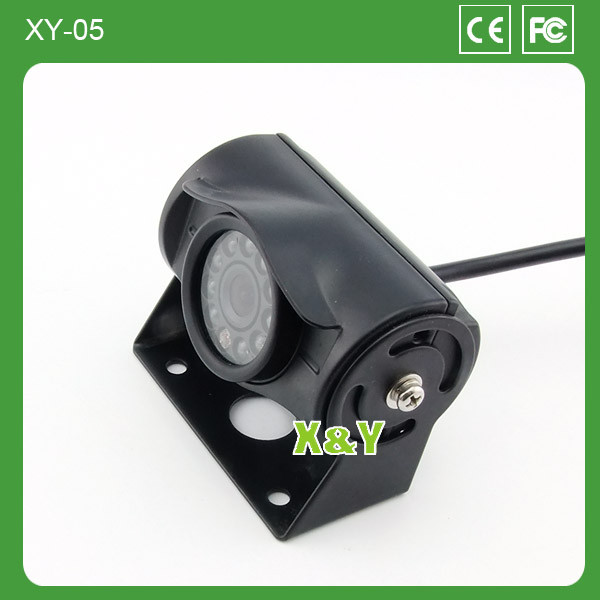

12V~24V Night Vision Car Bus Rear View Video Camera Xy-05

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$14.0 - $16.0 / Piece

Min. Order (Pieces)	Unit Price
20.0	US $ 16/ Piece
50.0	US $ 15.5/ Piece
100.0	US $ 15/ Piece
200.0	US $ 14.5/ Piece
500.0	US $ 14/ Piece

Trade Terms: FOB, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Oct 16, 2014 To Jan 16, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:XY-05

Shell Material:Alloy

Probe Number:1

Display Type:Reverse Image

Interface:RCA

Function:Night Vision

Definition:420TVL

Chip:CCD

Waterproof Grade:IP67

Alarming Distance:View

Probe Diameter:6X6X5cm

Power Supply:12V~24V DC Adaptable

Mirror/Normal Switch:Optional

Parking Line Switch:Optional

TV System:NTSC/PAL

Current Consumption:Max. 200mA

Lens Angle:120 Degrees

IR Night Vision:Support

Export Markets:Global

Additional Info.

Trademark:X&Y

Packing:Color Box

Standard:CE FCC

Origin:China

HS Code:8525801390

Production Capacity:30000set/Month

Product Description

12V~24V Car Bus Rear View Video Camera With IR LED night vision XY-05
Rear /Front view camera for Bus Truck Van and large vehicles

12V~24V Adaptable

Night vision car camera with bright LED good profomance in the dark

Image Sensor: 1/4" CCD/CMOS
TV System: NTSC/PAL
Effective Pixels: 640*480 pixels
Sensing Area: 4.9mm × 3.6mm
Sync. System: Internal
Horizontal Resolution: 420TV Lines
Minimum Illumination: 0 Lux
Video Output: 1.0V p-p, 75ohm
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50(PAL)or 1/60(NTSC)~1/10, 000 Second
BLC: Auto
Current Consumption: Max. 200mA
Power Supply: DC 12V~24V
Operating Temperature: -10oC~50oC, RH 95%MAX
Storage Temperature: -20oC~60oC RH 95%MAX
Lens: F=2.8mm/F=2.0
Lens Angle: 120 degrees

Image Sensor:	1/4" CCD/CMOS
TV System:	NTSC/PAL
Effective Pixels:	640*480 pixels
Sensing Area:	4.9mm × 3.6mm
Sync. System:	Internal
Horizontal Resolution:	420TV Lines
Minimum Illumination:	0 Lux
Video Output:	1.0V p-p, 75ohm
