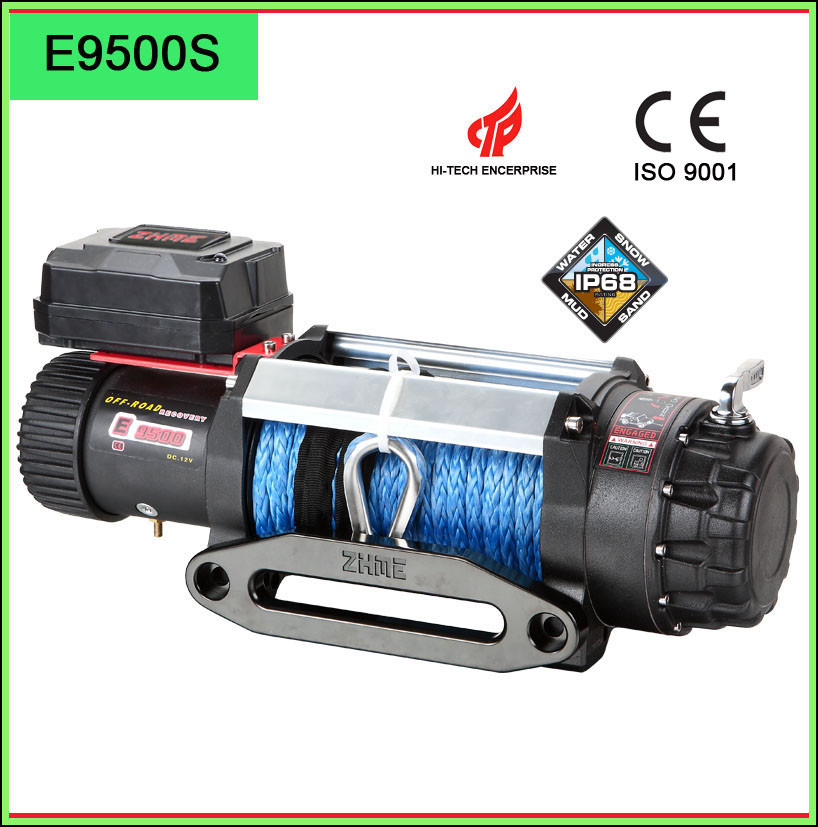

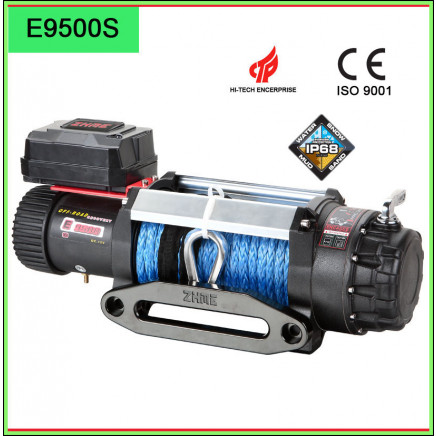

12V Heavy Duty Electric Winches with Synthetic Rope

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$290.0 - $310.0 / Piece

Min. Order (Pieces)	Unit Price
15.0	US $ 310/ Piece
400.0	US $ 290/ Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Jul 25, 2015 To Oct 25, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E 9500 s electric winches

Type:Electric Winch

Power Type:Series Motor DC

Pull Direction:Forward

Manual Winch Type:Electric Winches

Electric Winch Model:SUV

Working Voltage of Electric Winch:Low Voltage

Brand:Zhme Winches

Applicable Environment:Snow

Certification:CE

Voltage:12V Winches

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Strong Carton Box, Optional Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:6000PCS / Month

Product Description

Rated line pull: 9500lbs (4310 kgs) Single line.
Motor: Seires Wound 6.0 HP/4.4 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 212: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: Synthetic rope 9.5mmX26m
Drum size: 2.5"X 9.0" ( 63mm X 224mm)
Dimensions: 23"X6.7"X8.4"(552mm X 170mm X 214mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 25 Square mm, 72" ( 1.83m)
N. W: 79lbs (36 kg)
Packing: 620mm X 200mm X 390mm / Carton

One 20 feet container covers 400 cartons, If need, Use pallets.

12V Heavy Duty Electric Winches with Synthetic Rope

How to Prevent Overheating

Unlike hydraulic winches, electric winches are not designed for long, continuous pulls. If you need to winch over a long distance, stop winching and let the motor cool down every so often to prevent overheating. If the motor becomes uncomfortably hot to the touch, that means you need to take a break. Wait five minutes or so-until the motor feels cooler to the touch-and continue winching.
