1500lbs Fast Line Speed Electric Winch for Sale

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
15.0	US $ 300/ Piece

Price:US $300.0 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 16, 2015 To Aug 16, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E15000S

Type:Electric Winch

Power Type:Series Motor DC

Pull Direction:Forward

Brand:Zhme

Applicable Environment:Mountain Road

Certification:CE

Heavy Duty:Black Textured

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Strong Carton Box, Optional Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:600PCS / Month

Product Description

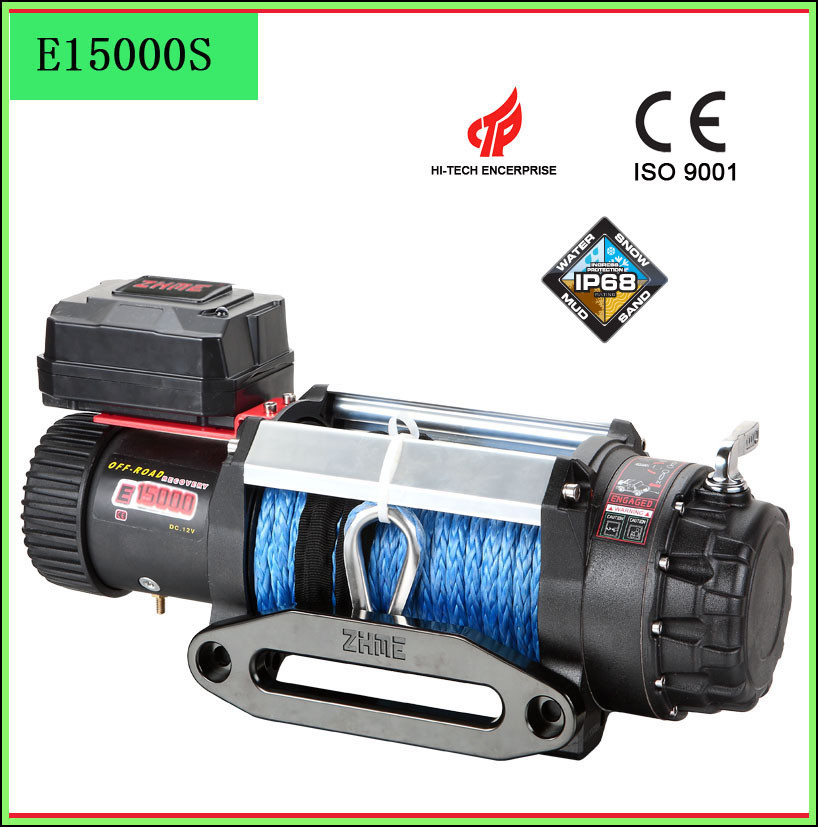

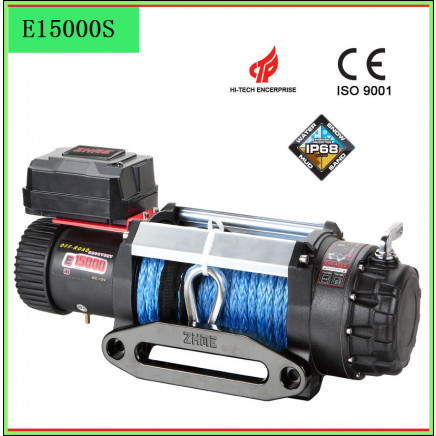

1500LBS FAST LINE SPEED ELECTRIC WINCH FOR SALE

Rated line pull: 15000lbs (6804 kgs) Single line.
Motor: Seires Wound 6.8HP/5.0 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 262.: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead:Aluminum hawse Fairlead
Rope: Synthetic rope 11mmX24m
Drum size: 3.0"X 8.8" ( 76mm X 224mm)
Dimensions: 23. "X6.7"X8.4"(584mm X 170mm X 214mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 32Square mm, 72" ( 1.83m)
N. W: 97 lbs (46 kg)
Packing: 640mm X 210mm X 400mm / Carton

One 20 feet container covers 300 cartons, If need, Use pallets.

PERFORMANCE
Line speed and motor current (first layer)	Line pull	Lbs	0	2000	6000	8000	12000	15000
	Line pull	Kgs	0	907	2722	3629	5443	6804
	Line speed	FPM	19.7	10.2	8.5	7.9	5.9	3.9
	Line speed	MPM	6	3.1	2.6	2.4	1.8	1.2
	Motor current	Amps	70	150	200	250	330	420

Line pull and cable capacity	Layer of cable		1	2	3	4
	Rated line pull per layer	Lbs	15000	12800	11000	9800
	Rated line pull per layer	Kgs	6804	5806	4990	4445
	Cable capacity per layer	Ft.	15.1	35.1	59.7	85.3
	Cable capacity per layer	M	4.6	10.7	18.2	26
