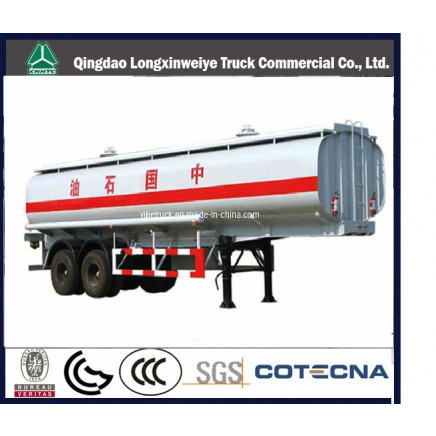

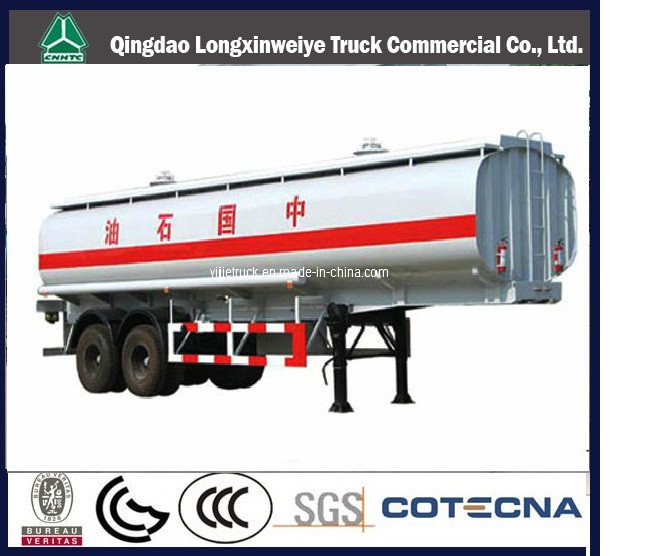

2 Axles 400000L Fuel Tanker Semi Trailer
Tank Volume are 40000 L-50000L
Overall Length: 12000, 12980mm
Overall Width: 2500mm
Overall height: 3850mm
Fuel tanker semi trailer
Tank Water Volume are of 40000L-50000 L,
DIMENSION:
Overall Length: 12, 000-12, 980mm
Overall Width: 2, 500mm
Overall height: 3, 800mm
Axle Spacing: 1, 310 mm
Axle: BPW / FUWA axle, X 3PCS
Brake: WABCO Dual line pneumatic brake system.
Wheel: 10 holes 8.0-20 steel Disc wheel, 12 PCS, brand. Chineses famous.
Tire: 11.00R20/1200R20/1100R22.5 steel radius tyre 12PCS, brand. Chineses famous.
King Pin: 3.5" king pin, made in China.
LANDING LEG: JOST D200T
ELECTRICAL:
Voltage: 24 Volt.
Receptacle: 7 way
Light: Front marker lamp: White
Side marker lamp: White and red
Rear lamp: Red
Turn signal lamp: Amber
Product
Name |
Model |
NO. of Axle |
Outside
Dimension L×W×H |
Capacity
(m³) |
Rated Loading Capacity(T) |
Total
Weight |
Distance of each Axle(mm) |
Fuel Transport
Semi Trailer |
STY9320GJY |
2 |
13000*2500*3950
12500*2500*3950 |
30 |
20 |
11.9
11.55 |
8050+1300
7650+1300 |
STY9340GJY |
2 |
13000*2500*3900 |
36 |
23 |
11.2 |
8050+1300 |
STY9350GJY |
2 |
12500*2490*3800 |
33.9 |
22.6 |
12.4 |
7700+1300 |
STY9330GJY |
3 |
13000*2500*3950
12500*2500*3950 |
30 |
20 |
12.75
12.5 |
6960+1310+1310
6660+1310+1310 |
STY9400GJY |
3 |
13000*2490*3900
12500*2490*3900 |
40.64 |
27.1 |
12.8 |
6980+1310+1310
6580+1310+1310 |
STY9400GYY |
3 |
13000*2500*3950 |
43 |
27.39 |
12.3 |
6980+1310+1310 |
Chemical Liquid Product Carriage |
STY9400GHY |
3 |
13000*2500*3900 |
48.79 |
27.4 |
12.6 |
6660+1310+1310 |
STY9402GHY |
3 |
13000*2500*3980 |
54.4 |
30.2 |
9.8 |
6960+1310+1310 |
STY9407GHY |
3 |
13000*2500*3950
|
52.4 |
30.48 |
9.5 |
6560+1310+1310 |
| Manufacturer Name | Shandong Liangshan Tongya Automobile Co.,Ltd |
| Type | tanker semi trailer |
| Product Name | Fuel/Oil tanker semi trailer |
| Shipping Terms | Shipping by bulk cargo because its huge body. |
| Delivery time | Production Term 15 workdays for one set oil tank semi trailer |
| Weight |
|
| Tare Weight | From 11550kg to 12800kg |
| Tanker capacity | From 30m3 to 55m3 for your choose |
| Loading Capacity | 30-60ton |
| Axle Weight Load | 13/16/20T |
| Specification |
|
| Axle No./ specs. | 2 or 3 FUWA or BPW brand |
| Tire | 11.00R22.5/12.00R22.5 Vacunnm tire /Triangle or Double Cone brand |
| King Pin | JOST 50# or 90# traction pin |
| Outside dimensions (L*W*H) | 11000×2490×3950mm,12500×2490/2500×3950/3800mm,
13000×2490/2500×3950/3900mm |
| Support legs | 28Tons (Tongyada Brand)/Jost D200T |
| Rear ladder | With ( as in the picture) |
| Rim | 8.25×22.5/9.00*22.5 Vacunnm tire Zhengxing Brand |
| Wheelbase | 8050/7650+1300mm ,5060/6660/6960/6580+1310+1310mm |
| Steel Spring | 10 pieces per axles |
| Compartment | Three |
| Manhole | 2/3/4 pieces(Diameter is 500mm) |
| Discharge mouth | diameter is 280mm |
| Number of Tire | can be choose freely |
| Fire Extingguisher | Two pieces |
| Spare Tire Carriers | 2pieces |
| Tool box | 2pcs |
| Frame: |
|
| The material of
Tanker body | The tanker body made of 5mm steel plate,
the forside head and back side head made of 6mm steel plate,the shape can be column or TV square shape. |
| Brake: |
|
| Brake Chamber | Four double and two single chambers( TKL brand ) |
| ABS system | Without ( Can be choose freely) |
| Emergency Valve | WABCO |
| Electriacl: |
|
| Voltage | 24V |
| Receptacle | 7ways (7wire harness) |
| Miscellaneous |
|
| Painting | According to the requirement of the buyer |
| Marking | According to the requirement of the buyer |
| Side Guard | According to the requirement of the buyer |
| Tools box | One pieces or According to the buyer |
