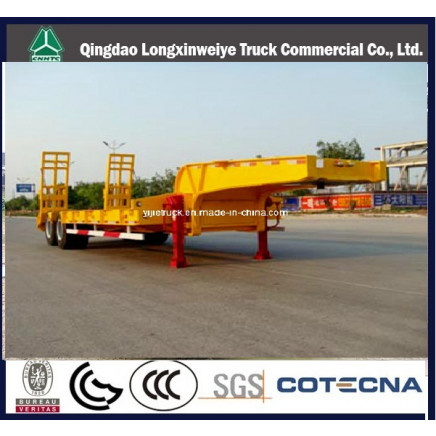

2 Axles 40ton Low Bed Semi Trailer (CQS9390TDP)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

2 Axles 40ton Low Bed Semi Trailer (CQS9390TDP)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 16000/

Price:US $16000.0 / Unit

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 21, 2015 To Jul 21, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CQS9390TDP

Type:Semi-Trailer

Load Capacity:50T

Certification:CE, CCC, ISO, SGS

Wheel Base:9000-10000mm

Tread:2240mm

Grade:Heavy Duty

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Less Metal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Connecting Type:Semi-trailer

Shape:Flatbed

Axle Number:3

Tire Number:12

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Condition:New

No.Axles:2

Overall Dimension:13000X2500X1680mm

Scale:Heavy Duty

Components:Trailer Axles

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:Nude Packing

Origin:Qingdao, China

Production Capacity:80000 Sets/Year

Product Description

3 Axles 40ton Low Bed Semi Trailer

Information:
1. Components: Chassis, suspension, tyre and wheel, landing gear.
2. Payload: 20ton, 30ton, 40ton, 60ton, 100ton.
3. MOQ: 1 units.
4. Lead time: In stock or 30 days production
5. Payment terms: T/T or L/C at sight
6. Production ability: 60 sets per month
7. Quality level: Excellent quality for international market, made in China
8. Certificate: ISO9001; TS16949; CIQ; BV; C/O; FORM E.
9. Area suitable: America, Europe, Asia

Brand	2 Axles 40ton Low Bed Semi Trailer
Manufacturer	Lianshan CIMC dongyue vehicles Co.,lt
Model	2 Axles Low Bed Semi Trailer/40ton Truck Trailer CQS9390TDP
Loading capacity	40 tons
Overall Dimension(mm)	11000x2500x1750
Deck length and height (mm)	7700x1350
Wheel Base(mm)	7390+1310+1310
Main beam	@ Constructed of original main beams electrically welded with corresponding extra strong cross member. @ Heavy duty fixed type goose neck insuring maximum strength and durability incorporating thick sliding plate. @ Platform covered with checkered steel sheet over recurrent members, thickness of 4mm. @ " I" type main beam, high strength steel, of type Q345B. @ Top flange 20mm, bottome flange 20mm, while the middle is 12 mm.

Specification	Suspension	Independent stamping steel rigid suspension, with a set of tri-axle leaf spring.
	King Pin	2' ' , factory brand.
	Rim	Local brand 12 pieces
	Leaf Spring	10 pieces
Axle	Heavy duty type axle, 3 X 13 ton type, brand of FUWA. And with twin tyres formation.
Tire	Size	1100R20 18pr
	Number	12 sets
Brake	2-Line compressed air brake system on all wheels with additional parking brake.
Landing gear	Heavy-duty landing gear mechanically (telescopic) operated.
Electrical	24 volts electrical system to international standards includes taillights, sidelights and direction indicators.
	7-pin socket fixed at the front of trailer.
Painting	Blasting before painting, one coat of primer then two coats of high quality paint. Color: according to customer.
Others	@ Heavy-duty rear bumper. @ One spare wheel carriers. @ Rubber mud flaps. @ One lockable tool box.
