2 Seaters Electric Utility Cart with Hydraulic Lifted Cargo Box, Eg2048zt2

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

2 Seaters Electric Utility Cart with Hydraulic Lifted Cargo Box, Eg2048zt2

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, EXW

Payment Terms:L/C, T/T

Trademark:eagle

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EG2048ZT2

Type:Buggy/Golf Carts

Seats:1-2

Power:4kw

Power Fuel:Electric

Maximum Speed:>30 km/h

Gradeability:20-30%

Suitable for:Golf Course

Certification:CE

Voltage of Battery:48V

Color:Black,White,Yellow,Green,Blue,Red etc.

Range:up to 90km

Max Speed:40kph

Overall Dimensions (Mm):3180X1180X1890 (Lxwxh)

Max.Climbing Ability(Loaded):20%

Rear Cargo Bed Dimensions (Mm):1400X1100X250 (Lxwxh)

Max Loading Weight:450kgs

Battery:8xt105(185ah@5hr Rate)

Controller:Curtis Controller 1268

Motor Power:3.8kw

Description:2 Seaters Electric Utility Cart

Export Markets:Global

Additional Info.

Trademark:eagle

Packing:Assembly or CKD

Standard:CE

Origin:China

HS Code:8703101900

Production Capacity:2500 Units Each Month

Product Description

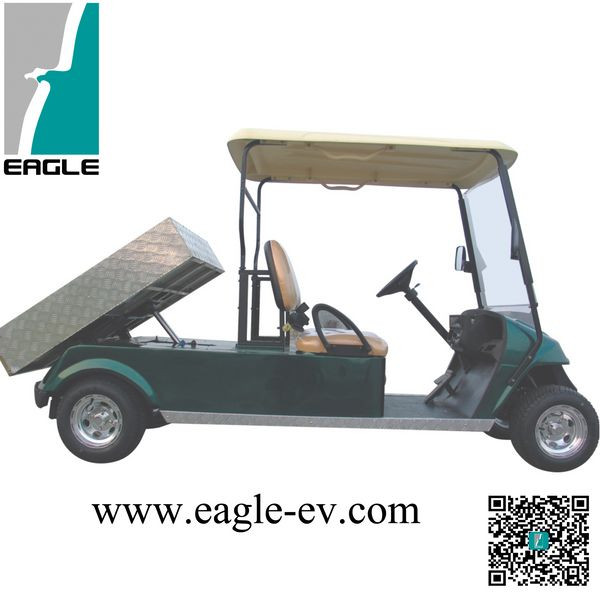

Electric utility cart with hydraulic lifted cargo box
Model: EG2048ZT2

Key Components

Item	Description
Controller	Curtis controller, 400A, imported from USA directly
Motor	Rated 4KW-5KW (5.44HP-6.8HP), ADC brand or Chinese brand Both DC motor and AC motor are available
Battery	Trojan battery, T105+, imported from USA directly
Charger	High Frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)

Performance

Item	Description
Passenger Capacity	2
Range (loaded) (km)*	up to 90
Max.speed (km/h)	up to 40
Min.turning radius (m)	4.5
Max.climbing ability(loaded)	up to 20%
Max. movement after brake at speed of 20km/h	?4m
Max.loading weight (kgs)	450
Charging time (hour)	8-10
Battery lifespan (cycles)	750

Dimensions

Item	Description
Overall dimensions (mm)	3180x1180x1890 (LxWxH)
Rear cargo bed dimensions (mm)	1400x1100x250 (LxWxH)
Min.ground clearance (mm)	120
Wheelbase (mm)	2450
Front wheel tread (mm)	855
Rear wheel tread (mm)	975

Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front and rear body cover, injected
Roof	Injected plastic
Windshield	One-piece organic glass (PMMA)
Roof supports	Carbon steel, powder coated, black
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Formed
Floor mat	Skidproof rubber
Dashboard	Black plastic, with F/R switch, battery power indicator, ignition key on it
Beverage holders	4 cups holders, 2 big and 2 small
Side trim	Extruded aluminum
Rear cargo bed	STS frame with diamond aluminum fenders and bottom board, with hydraulic lifted function
Score card holder	On the steering wheel

Electric System

Item	Description
Lights	12V, headlight, front turning light, taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	\
DC/DC converter	48V/12V

Steering & suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, with automatic compensation function
Brake System	Rear wheel mechanical brake with foot park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Cylinder hydraulic shock absorber and leaf spring
Rear suspension	Cylinder hydraulic shock absorber and leaf spring
Driving model	Rear axle two stage deceleration, motor direct driving
Rear axle	Aluminum differential cage, integrated, 12.76:1 gear ratio
Wheel & Tyre	10x6 Alumimum wheel & 205/50-10 4PR

Option Accessories
To increase the sales value of our vehicles, we also provide many optional accessories.

Item	Option description	Item	Option description
1	Hinged windshield	11	Enclosure
2	Laminated windshield with wiper	12	Digital meter
3	2-point seatbelt	13	12V plug
4	Backrest cover in wood finish	14	Hour meter
5	Steering wheel in wood finish	15	Solar panel
6	Inner rear view mirror	16	Battery watering pipe
7	Side rear view mirror	17	Water pump (handle)
8	STS or aluminum roof supports	18	4-wheel hydraulic front drum or disc, rear drum brake with hand park brake
9	Wooden finish dashboard,steering wheel and dashboard	19	8x7 steel rim with 18x8.5-8 tyre or 6J-10 steel rim with 205/50-10 tyre
10	Glove box with door and lock
