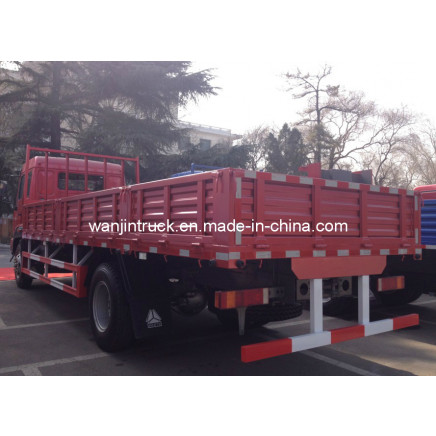

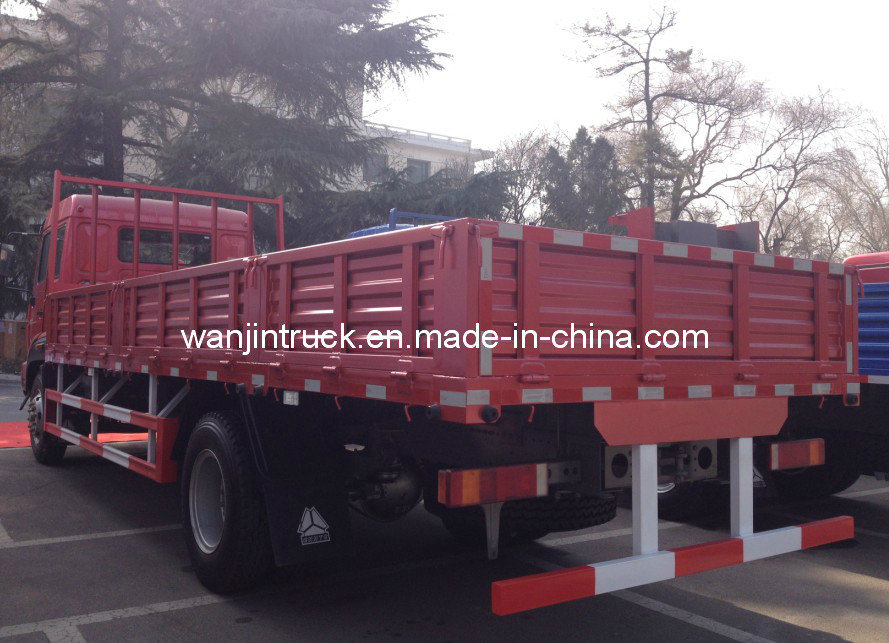

20 Ton 4X2 HOWO Cargo Truck (7 TON)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 17000.0-40000.0/ Piece

Price:$17000.0 - $40000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 26, 2015 To Aug 26, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:7 TON

Gross Vehicle Weight:19000

Size:8400*2496*3048 Mm

Horsepower:150 - 250HP

Rear Axle:Hw12

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:Sinotruk

Packing:Nude

Standard:CCC

Origin:China

HS Code:8704230090

Production Capacity:20000 Units

Product Description

Cargo Truck (7 ton)
Driving type: 4*2
Cab: L2000 lengthed, 2 seats with 1 bed,
Engine: 140hp
Transmission: DC6J48TC
Front axle: Model: 1090
Driving axle: Model: 1118
Tire: 9.00-20

Truck Model					ZZ1167M4617C
Dimension(Lx W xH)(unloaded)(mm)					840024963048 mm
Cargo body size (LWH, mm)(mm)					56002300600mm
Approaching angle/Departure angle(°) (°)					16/15
Overhang(front/rear) (mm)					1500/2200
Wheel base (mm)				4600
Max speed(km/h)(km/h)				102
Curb weight(kg)				8000
Fuel tanker capacity (L)				300
Fuel consumption(L/km)				20-40 L/100 km
Clutch				Dry single plate with damper springs. Reinforceddiaphragm clutch, diameter 430mm
Engine Model (Steyr technology, made in China)	Fuel type			Diesel
	Horse Power, max(kw/rpm)			266HP
	Emission			EURO II
	Model			WD615.62
Transmission		Model		HW15710 10 forwards and 2 reverse
Brake system		Service brake		Dual circuit compressed air brake
		Parking brake		spring energy, compressed air operating on rear wheels
		Auxiliary brake		Egine exhaust brake
Steering system		Model		ZF8098 hydraulic steering with power assistance
Front axle		HF7
Rear axle		HW12
Color		According to the customer
Tyre		295/80R22.5 9PC
Electrical system		Battery	2X12V/165Ah
		Alternator	28V-1500kw
		Starter	7.5Kw/24V
Cab		HOWO70 cab, with air conditioner, no sleeper, all-steel forward control, 55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers

Condition:	New	Capacity (Load):	11 - 20t	Drive Wheel:	4x2
Horsepower:	150 - 250hp	Transmission Type:	Manual	Emission Standard:	Euro 2
Fuel Type:	Diesel	Engine Capacity:	> 8L	Size:	840024963048 mm
Gross Vehicle Weight:	19000	Place of Origin:	Shandong, China (Mainland)	Brand Name:	HOWO
Model Number:	ZZ1167M4617C	Rear axle:	HW12
