2015 New HOWO 6X4 60ton Tractor Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Piece)	Unit Price
1.0	US $ 30000.0-40000.0/

Price:$30000.0 - $40000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jun 10, 2015 To Sep 10, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4257V3241W

Transmission Type:Manual

Power:Diesel

Load Capacity:?50t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SNIOTRUK-HOWO 7

Packing:Nude Packing

Production Capacity:60000pieces/Year

Product Description

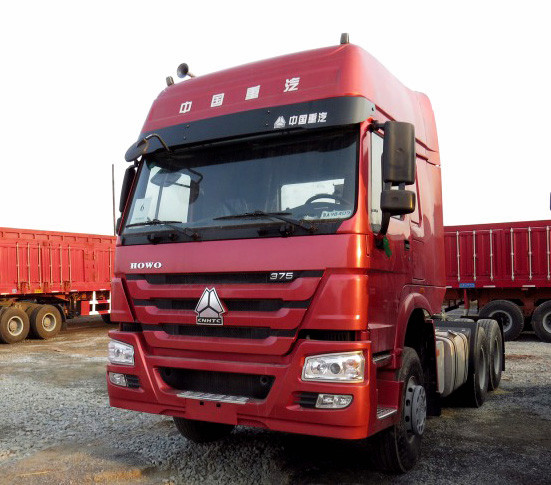

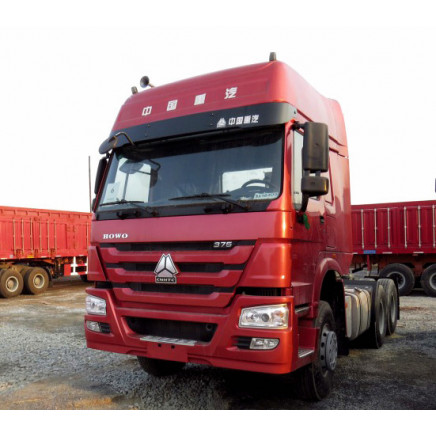

2015 New HOWO 6x4 60ton Tractor Truck

ZZ4257S3241V
Traction type: 6X4
Driving type: LHD (RHD is optioned)
Cabin: HOWO cab, flat head, double sleepers, tippable, high-roof

Engine brand: Sinotruk(Steyr technology)
Engine model: WD615.47
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 371HP@2200RPM
Max torque: 1100-1600
Bore/Stroke(mm): 126/130
Mean Position Speed: 9.53m/s
Compression ratio: 15.5: 1
Specific fuel consumption: 198g/Kwh

Gear box
Model: HW79
No. Of speeds: 9 forward, 1 reverse
Forward ratio: 12.42, 8.29, 6.08, 4.53, 3.36, 2.47, 1.81, 1.35, 1.00
Reverse ratio: 12.99

Clutch: 430 Diaphragm type
Steering: ZF8098 integral type power-steering
Fuel consumption (L/100km): 36
Fuel tank capacity (L): 400
Max. Speed (km/h): 90
Max. Gradeability(%): 25
Kerb. Mass: 9180kg
Total mass: 25000kg
Max towing load: 39800kg
Max load on 5th wheel: 15690kg
Turning circle diameter: 24m
Approach angle: 16 degree
Departure angle: 70 degree

Descriptions & Specifications

HOWO 6x4 Tractor ZZ4257S3241W LHD ;

Engine: CNHTC brand WD615.47, 371hp , Euro II emission;

Transmission: 10 speeds (HW15710);

Steering: ZF8098 hydraulic steering with power assistance;

Front axle: HF9 drum, rated loading 9T;

Rear axle:HC16 double reduction driving axle;

Cab: HW76 length cab, with A/C , with one sleeper;

Rim/Tyres: 12.00-20 bias tire;

Brake: with ABS system;

Wheelbase(front/rear):2022/1850mm;

Max speed: 102 km/h;
