250t Crawler Crane, Competitive Hydraulic Crane Manufacture, XCMG Quy250

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1/ Piece

Price:US $1.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DAP, CIP, CPT, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From May 29, 2015 To Aug 29, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:Quy250

Model No.:Quy250

Type:Small Crane

Application:Construction Usage, Workshop Usage, Container Usag

Power Source:Hydraulic

Sling Type:Cable

Certification:ISO9001: 2000, CE

Max Load Moment:1994kn

Gradeability:40%

Fixed Jib Length:9.15~15.25m

Overall Weight:48.5m

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Nude

Standard:CE, RoHS, SGS, GMP

Origin:Jaingsu China

HS Code:84295100

Production Capacity:50, 000 PCS/Year.

Product Description

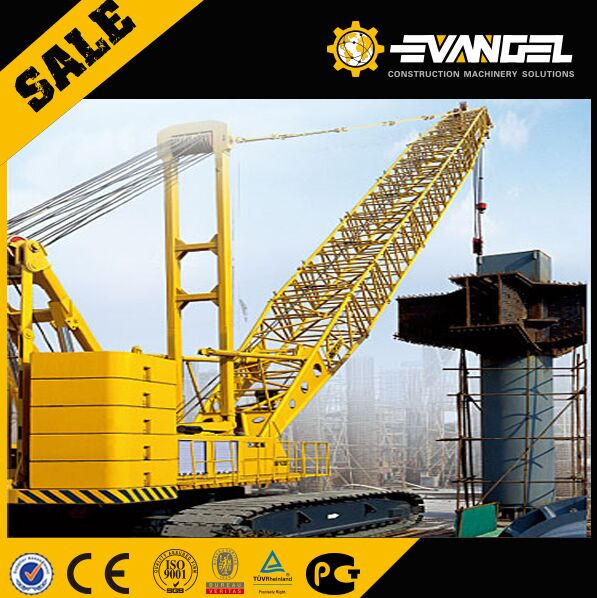

XCMG crawler crane 250 ton QUY250
1. Rated load: 250t
2. Engine: 242kw
3. Basic boom: 18-87m
4. Fixed jib: 12~36m, tower jib: 27-57m.
5. Operation weight: 230t

XCMG Crawler Crane(QUY250) is designed and developed independently in absorption of foreign advanced technology and combined with China domestic work conditions. It features hydraulic drive, full swing and lattice boom, and also the first one adoption of pilot proportional control in China domestic crawler cranes. This crane is easy operation, stable travel and reasonable arrangement in structure. This crane is suitable for lifting and installation job in construction site, mine, factory and dockside. Optional mechanical grab is available for earth moving and stacking work.

1. Safety Device: Safety devices comprise: Load moment limiter, turntable lock pin, boom backstop, hoist limit switch, anemometer, level gauge, hydraulic overflow valve, counterbalance valve, two-way hydraulic lock, slewing warning lamp and travel warning lamp, etc.

2. Crawler track tension: The reset bypass switch is used for switch-over of installation made and operation mode for the overall machine assembly, in operation made, hoist limit switch, position check switch and tension sensor have a normal work, and meanwhile the bypass switch is reset.

3. Hoist limit switch: With a hoist limit switch, tension sensor can prevent the compactor from high limit and for overload protection. Several access switches are used by interlocking to monitor cylinder position so as to control the cylinder speed. The PLC controller is used to prevent accidents.

4. Emergency stop: Press the emergency stop switch to stop the engine, and stop all the hoist and lowering movements.

5. Function lock: If start the compactor without pressing the system pressure switch, the handle and foot travel pedal become invalid, in order to prevent accidental operation by operator carelessly touching the handle and the foot pedal. The cylinder raising and lowering must be carried our by the operator pressing the dead-man button on the handle.

tem	Unit	Parameter
Max. lifting capacity	Boom	t	250
	Fixed jib	t	35
	Tower jib	t	52
Max. lifting moment		kN.m	13330
Boom length
	Boom	m	18-87
	Fixed jib	m	12-36
	Tower jib	m	27-57
Boom elevating angle		°	-3-83
Winch single line hoisting speed(with no load,at 6th layer )		m/min	120
Boom max. single line elevating speed(at 1st layer)		m/min	2*23.8
Tower attachment single line elevating speed(at 1st layer)		m/min	41.8
Max. swing speed		r/min	1.22
Max. travel speed		km/h	1.0
Grade-ability			30%
Mean ground pressure		MPa	0.1
Engine output		KW	242
Total mass (with main hook block,18m boom)		t	230
Max. weight of single part in transport state		t	55
Dimension of single part(turntable) in transport state(L×W×H)		m	12.02×3.4×3.4
