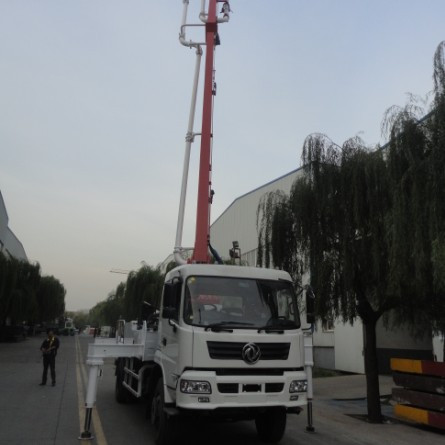

25m Concrete Pump with Boom, Truck Mounted Boom Pump

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T, D/P

Trademark:TRUEMAX

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:TP25

Transmission Type:Manual

Power:Diesel

Emission Standard:China III $Euro 1

Seats:?5

Tire Type:Inner Tube

Tire Certification:ECE

Condition:New

Chassis:Other Chassis Can Be Customized,Sinotruck/Dongfeng

Export Markets:Global

Additional Info.

Trademark:TRUEMAX

Packing:Standard or According to Your Detailed Requirement

Origin:Hangzhou, China

Production Capacity:5 Units/Month

Product Description

Be suited for different project application especially the small site and bridge projects. Upper parts can be designed according to customers' required chassis. And we could supply the chassis made in China.
Equipped with STIEBEL(from Germany) PTO box to connect engine with hydraulic oil pump, making the pump group run more stable and efficient.

Boom System:The boom system is designed by Multi physics analysis and testing. The steel is made by imported HSLA (High strength low alloy steel). All the welding are 100% inspected to ensure the structure rational and high reliability.

Adopt "R" type folding boom sections easy for special project. And the boom speed is adjusted
sleeplessly, with compensated pressure, proportion system of sensitive to loading, as assure the flexible working of the boom.Maximum shock-absorbing controlled by multiple valve controller.

Pumping System:Tungsten steel glass plate and cutting ring guarantee the long using life.Automatic retraction of the concrete piston provides a more convenient and easier maintenance for the pumping system.
Automatic accelerator tracking system adjust the accelerator according to the actual pumping condition to save more diesel oil.

Hydraulic & Electrical System:Adopt double pumps with double circuits system and world famous hydraulic components.Variable displacement axial piston pump make the swing cylinder more stable and powerful.Operated by manual/panel/radio remote controller(NBB)

Chassis Brand	DONGFENG	SINOTRUCK	FAW	ISUZU	ISUZU
Chassis Model	EQ5161TZZKJ	ZZ5347N4647D1	CA3312P2K2L4T4EA80	CYZ51Q	CYH51Y
Tail Gas Exhaust Standard	China III	China IV	China III	EuroIII	EuroIII
Engine Type	YC6J180-46	D10.34-40 340	WP10.380E32	6WF1A	6WF1D
Engine Power	132KW/2500RPM	249KW/2200rpm	276KW/1800rpm	265KW/1800rpm	287KW/1800rpm
Engine Displacement	6.494L	9.726L	9.726L	14.256L	14.256L
Drive Type	4*2	6*4	8*4	6*4	8*4
Wheel Base	4700MM	4600+1350MM	1860+3460+1350MM	4595+1310MM	1850+4605+1310MM
Max.Travel Speed	88km/h	80km/h	85km/h	85km/h	89km/h
Min.Turning Radius	8.8m	11.9m	11.9m	9.2m	11.9m
Approach/Departure Angle	20/12°	16/19°	24/39°	32/11°	32/8°
Tyre Type	10.00R20	12.00-20	12.00R20-18	295/80R22.5	295/80R22.5

Model	Unit	TP25M4U
Max.Vertical Reach	m	24.2
Max.Horizontal Reach	m	20.6
Reach Depth	m	10.4
Unfolding Height	m	6.1
Boom Length	m	6.5/4.59/4.59/4.8
Boom Section Articulation	°	90/180/240/240
Boom Control Mode	/	Manual,Cable & Radio remote control are all available
Boom Type	/	M
Slewing Range	°	361
Front Outriggers Spread	mm	5272
Rear Outriggers spread	mm	6442
Legs Opening	/	"X" front + "Swinging leg" real
End Hose Length	m	3
Arm Attached Pipeline Diameter	mm	125
Concrete Valve	/	S Valve
Max.Concrete Output	m³/h	50-100(L)/45-60(H)
Max.Pressure	MPa	10.3(H)/6.3(L)
Hydraulic Strokes	min-1	12-18(H)/18-26(L)
Cylinder Bore/Stroke	mm	230*1600
Hopper Charge Height	mm	?1450
Hopper Capacity	m³	0.7
Concrete Slump	mm	140-230
Max. Aggregate Dimension	mm	40
Hydraulic System Type	/	open loop
System Working Pressure	MPA	32
Main Hydraulic Pump Type	/	A11VLO190LRDUR/REXROTH
Hydraulic Oil Tank Capacity	L	600
Hydraulic Oil Cooling	/	Air cooling
Hydraulic Cylinder Bore/Stroke	mm	?125*1600
Water Tank Capacity	L	600
Overall Length	mm	7650
Overall Width	mm	2450
Overall Height	mm	3215
Total Weight	T	13.2

Truemax Overview
TRUEMAX was established in 2003 at Hangzhou, China. In the past 10 years, TRUEMAX has established over 10 manufacturing base, to offer the one-stop services in construction machinery filed, including R&D, designing, manufacturing, quality control and delivery.
With core principle of "True to Quality, Ture to Customer", our product has been exported to more than 100 countries with high customer appreciation & brand popularity.
TRUEMAX provide the full series of construction machinery and one-stop overall solution. Our product range covers pre-fabrication including aggregate crushing, dedusting and block making; concrete series including mixing, batching, pumping & placing; construction series, such as tower crane, building hoist, suspension platform and lifting basket; light construction machinery, including compacting, cutting, surface finishing machines & rebar processing machines.
Especially the concrete placing boom, we're the No. 1 in term of products variety, with top quality placing boom of placing radius ranging from 10 meters to 51 meters over 10 different series, the excellent quality & performance has been tested & approved by being used in lots of world famous high buildings.

The manufacturing base of TRUEMAX adopts 6S management system. Quality control system are implemented strictly in the whole procedures, including components purchasing, fabricating and manufacturing, packing and dispatch pre-inspection, ensuring the perfect quality assurance for all of our products. With international certificates like ISO9001:2008, CE & SGS, TRUEMAX guarantee the international first-class level for all of our products.
At present, TRUEMAX is the"Grade A Export Enterprise of China Customs", "Famous Export Brand of Zhejiang", " Famous Export Brand of Hangzhou", "High & New Technology Enterprise of Hangzhou", "Top 100 innovation-type foreign trade enterprise of Hangzhou"&" Key enterprises of Xiacheng district, Hangzhou", with support from Zhejiang Public Foreign Trade Service Platforms consecutively in 2012 and 2013.

"Quality achieves outstanding success, innovation leads the bright future", our working principle has leads the rapid expansion of TRUEMAX, with branches and spare parts distribution centers established oversea step by step. We're targeting to complete the global layout of TRUEMAX Agent within next 2 years, and "TRUEMAX 6S" stores within 5years.

In the coming days, TRUMAX will continue to forge ahead, make our best efforts to create the best platform for career performance, as well as to realize the maximized mutual benefit with all TUREMAX friends, partners, agents & clients. "View Broad, Ambitions Boundless", at a new height, we wish to join hands with all the ambitious friends together, contributing to the consummation of the first-class quality construction machinery industry, and creating the new glory constantly.
