2PCS Array LED Water-Proof CMOS Sensor IR-Cut Digital IP Camera

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

2PCS Array LED Water-Proof CMOS Sensor IR-Cut Digital IP Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:500 Pieces

Trade Terms:FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms:T/T

Trademark:Cayera

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:IPC-AP120

Technology:Pan / Tilt / Zoom

Style:Mini Camera

Type:IP Camera

Sensor:CMOS

HDMI Format:1080P

Horizontal Resolution:1080P

Kind:Autofocus Lens

Certification:CE, FCC

Feature:Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC

Effective Distance:10-30m

Remote Control:With Remote Control

CMOS:1/2.5""

Day and Night Function:IR-Cut

Minimum Illumination:0lux(IR on)

Network Transmission:P2p Penetrate Automatic Forwarding

Video Output:1-Channel

Power Supply:DC12V±10%

Synchronization:Internal

Export Markets:Global

Additional Info.

Trademark:Cayera

Packing:655mm*435mm*450mm; 45PCS

Standard:CE, FCC

Origin:Shenzhen, China

Production Capacity:50000 PCS/Year

Product Description

Quick Detail
1.1/4" Progressive Scan OV CMOS
2.P2P penetrate automatic forwarding
3.Wide Angle of view
4.128Kbps~8Mbps Video bit rate
5.Working Environment -10°C~+60°C, Less than 90% RH
6.Minimum illumination 0Lux(IR ON)
Application

Family,The school,Bank,The factory,The parking lot,Square,Shopping center,The airport,The bus station,The supermarket,Prison,Office Building,The meeting,Park,Chemical,

Oil,Mine,Community

Features

1.15M wired IR IP camera,
2. H.264HP compression,
3.RJ45, 12V DC output,
4.Support IE,mobilephone and CMS view
5.Support NVR
6.Support ONVIF2.0

SPECIFICATIONS
Product Type	IP Camera
Image Sensor	Hi 3518E+OV9712	Hi 3518C+AR0130
Effective Pixels	720P 1280×720	960P 1280×960
Video Compression	H.264
Video frame rate	25FPS
Video bit rate	128Kbps~8Mbps
safety performance	safety
Synchronization	Internal Synchronization
SNR	44DB
Minimum illumination	0Lux(IR ON)
Privacy	PrivacySupports four block area block
Exposure Contro	Automatic
White Balance	Automatic
Day and night function	With IR-CUT
IR Length	15m
Lens	3.6mm
Detection and alarm	E-mail alerts, alarm client
Ethernet	10/100M Ethernet, RJ45 port
Network protocol	Standard HTTP, TCP / IP, ICMP.RTSP, RTP, UDP, RTCP, SMTP,FTP, DHCP, DNS, PPPO
Network transmission	P2P penetrate automatic forwarding
Power Supply	DC12V±10%
Working Environment	-10deg~+60deg, Less than 90% RH

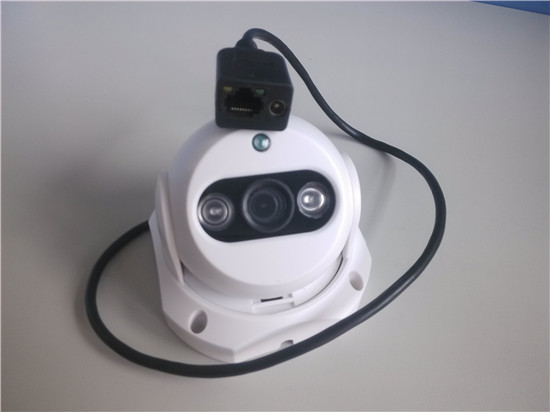

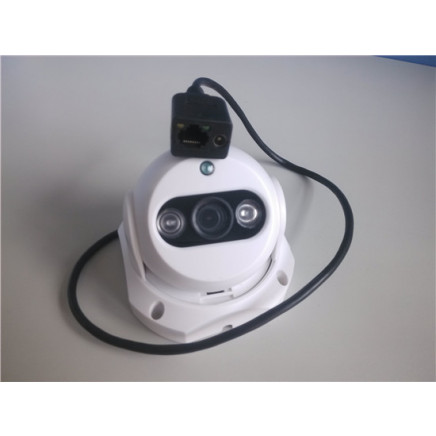

The following is the pictures show

2PCS Array LED Water-Proof CMOS Sensor IR-Cut Digital IP Camera
