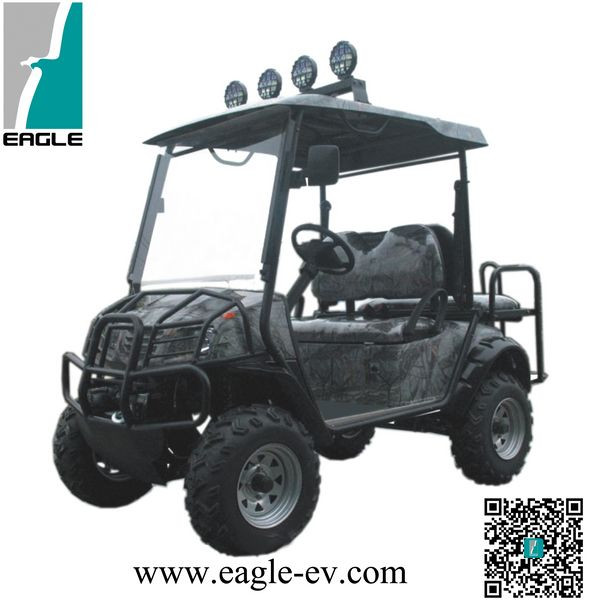

4WD Four Seats Electric Hunting Buggy with CE Approved, Lsv

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms:L/C, T/T, D/P, Paypal, Western Union

Trademark:Eagle

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EG6020A4D

Type:Buggy/Golf Carts

Seats:3-4

Power:600-1700W

Power Fuel:Electric

Maximum Speed:>30 km/h

Gradeability:20-30%

Suitable for:Tourist Area

Certification:CE, EEC, ISO, DOT

Voltage of Battery:48V

Color:Yellow

Description:Wd Four Seats Electric Hunting Buggy with CE Appro

Motor Type:AC or DC Motor

Battery Type:Lead Acid

Controller:Zapi or Curtis Controller

Suspension:Front and Rear Plate Spring + Cylinder Hydraulic S

Export Markets:Global

Additional Info.

Trademark:Eagle

Packing:Disassembled or Assemble

Standard:LSV

Origin:China

Production Capacity:1000

Product Description

Performances

Passenger capacity 4
Range (loaded) based on flat road at a speed of 20km/h (km)* >80
Max. speed @12.76:1 gear ratio 32
Max. speed @10.26:1 gear ratio 40
Minimum turning radius (m) 3.5
Max. climbing ability (loaded) @ 12.76:1 gear ratio 20%
Max. climbing ability (loaded) @ 10.26:1 gear ratio 15%
Max. movement after brake at speed of 20km/h ?4m
Max. loading weight 370kgs
Net weight 840kgs

Dimensions

Overall dimensions (mm) 3030x1395x1990(without searching light)mm
Min. ground clearance (mm) 415
Wheelbase (mm) 1660
Front wheel tread (mm) 850
Rear wheel tread (mm) 975

Body and Frame

Frame Welded steel framework with phosphate+electro-coating treatment
Body PP plastic front body + PP plastic rear body
Roof Injected plastic
Windshield one-piece Organic glass

Optons

1. Laminated windshield with wiper
2. Stainless steel package
3. Aluminum roof support
4. 2 point seat belt
5. Formed seat backrest vinyl
6. Backrest cover in wood finish
7. Dashboard in wood finish
8. Steering wheel in wood finish
9. Glove box door (include two locks) in black plastic
10. Glove box door (include two locks) in wood finish (inside and outside)
11. Inner rear view mirror
12. Side rear view mirror
13. Battery watering system ,48V &36V system
14. Manual Pump
15. Enclosure
16. Meter(only available for 48V system)
17. Police Light
18. 12V accessory plug
19. Hour meter
20. Solar Panel
21. on board charger
22. Right hand drive system(NO extra cost)
23. 4-wheel hydraulic brake + hand brake
24. 4-wheel hydraulic brake, front disc brake, rear drum brake
25. Rear axle: Integrated, Gear ratio 10.26:1
26. Customized color is available, but extra cost should be paid
