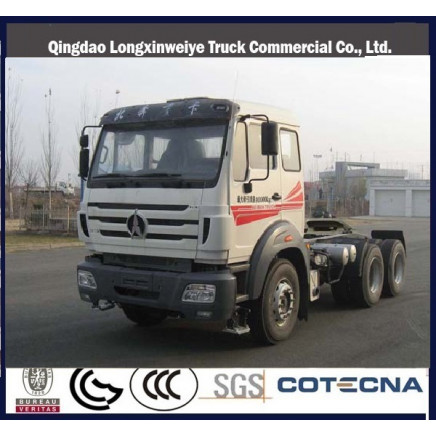

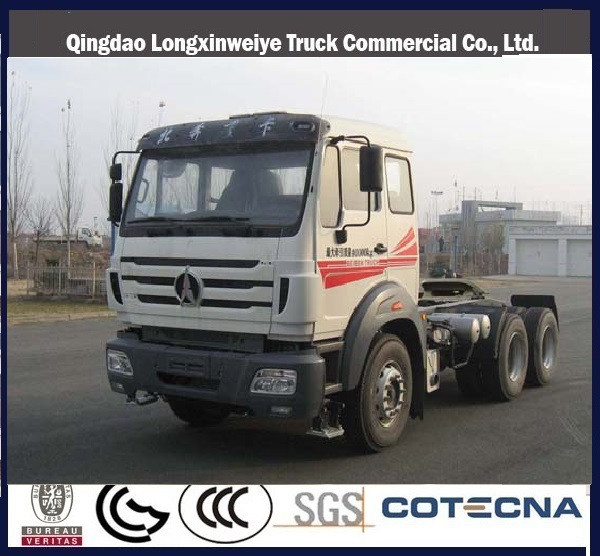

China Beiben Northbenz 6X4 336HP Tractor Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB

Payment Terms:L/C, T/T

Trademark:Northbenz

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ND4257B34J

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:Northbenz

Packing:Nude Package

Standard:Euro 2 or 3

Origin:Baotou, China

Production Capacity:3000 Sets/Month

Product Description

China Beiben Northbenz 6x4 336HP Tractor Truck

Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: North Benz (One Sleeper)

Engine
Engine brand: Weichai
Engine model: WD615.46 336HP Euro II
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 336HP@2200rpm
Max torque: 1460NM@1400-1600rpm
Bore/Stroke(mm): 126/130
Specific fuel consumption: 198g/Kwh

Gear box
Gear box: 12JS160T
Clutch: GF420 spring type
Steering: TAS85

Tyre
Tyre: 11.00-20
No. Of tyre: 10+1spare
Front axle: Benz
Rear axle: Benz ration 1: 4.7
Spring: 13/14
Fuel tank capacity (L): 330 Aluminium Alloy Tank
Max. Speed (km/h): 90
Kerb. Mass: 9000kg
Total mass: 25000kg
Wheel base (mm): 3200+1450
Front overhang (mm): 1410
Rear overhang (mm): 625
Front track (mm): 1995
Rear track (mm): 1800/1800
Approach angle: 20 degree
Departure angle: 64 degree
Dimension (mm): 6935x2495x3340
