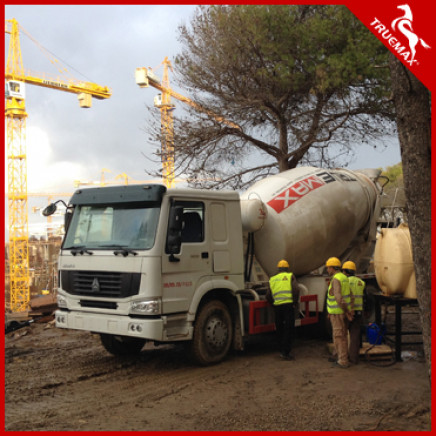

China High Quality Truck Mixer with Dongfeng

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

China High Quality Truck Mixer with Dongfeng

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB

Payment Terms:L/C, T/T

Trademark:Truemax

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CTM7

Type:Concrete Mixing Truck

Machining Process:Hydraulic

Certification:ISO9001: 2000

Condition:New

Vehicle:Dongfeng,Beiben,Sino

Mixing Capacity:3/6/7/8/9/10/12(M3)

Export Markets:Global

Additional Info.

Trademark:Truemax

Standard:ISO9001: 2000 and CE CERTIFICAT

Origin:China

HS Code:8479109000

Production Capacity:10 Units/Month

Product Description

MORE TRUEMAX PROJECTS ,PLEASE CHECK OUR SHOWROOM.

http://turemachines.en.made-in-china.com/

Multi Types of Chassis Match

1.The upper can match with different Chassis of 2, 3 or 4 axles

2.The upper can be designed to match with different Chassis as requirement.

Mixing Drum Structure

1.The drum body and blades are made by quality wearable exclusive steel plate with light weight of BaosteelB520JJ. And the drum is suit for transport both dry and wet materials.

2.The surface welding adopt manipulator double welding enables the strength structure and long service life.

3.Double pitch special designed blades ensure the fully mixing inside and low discharge surplus rate

4.Unique design of agitator inclined angle with the whole drum make the lower and stable center of gravity this makes the ,driving more steady and discharging more smooth, and gains better traffic ability.

5.The drum frame assembly adopt the flexible connection and reinforcing design. It ensures the load strength and safety driving.

Hydraulic System

1.Closed circuit hydraulic system and constant hydraulic oil temperature controller

2.Adopt world famous brand hydraulic pump, hydraulic motor,reducer and radiator. Also provide multi options for different requirement.

Water Supply

1.Pneumatic water supply system with large water tank which can wash different points including agitator drum, charging hopper and discharging hopper respectively

2.Rational layout and elegant appearance of washing pipes make the washing more convenient and rapid.

SPECIFICATIONS	7M³	9M³	10M³
Geometric volume of drum(m³)	11.3	14.91	16.2
Mixing capacity(m³)	7	9.64	10
Material of blades/drum	Q345MN	Q345MN	B520JJ
Inclination angle for drum(@)	15	12	13
Padding rate(%)	61.94%	64.65%	63%
Residual rate(%)	<0.16%	<0.16%	<1%
Charging speed(m³/min)	?3	?3	?3
Discharging speed(m³/min)	?1.2	?1.2	?2
Mixing speed(r/min)	50-220	0-14	70-260
Capacity for water tank(\|)	350	350	350
Air pressure(mpa)	0.4	0.4	0.4
Max.External diameter of drum(mm)	2118	2342	2432
Length of the drum(mm)	3868	4764	4811
A Upper-fixing Length(mm)	5930	6600	6685
B Subframe Length(mm)	5090	5760	5575
C Chute Position(mm)	840	840	850
D Center of Gravity when Fully Load(mm)	2385	2695	2750
E Hopper Height(mm)	2500	2570	2660
F Upper-fixing Height(mm)	2565	2635	2785
Overall dimension(LWH/mm)	593024902565	660024902635	668524902785
Weight(Kg)	3900	4500	5000
Water supple	Air pressure	Air pressure	Air pressure

Vehicle Model	DONGFENG	BEIBEN	SINO HOWO
Chassis Model	DFD1254GJ2	ND5254GJBZ	ZZ1257N3848W
Tail Gas Exhaust Standard	China III	China III	China III
Engine	YC6M290-33	WP10.290	WD615.69E
Engine Power	213KM	215KW	274KW
Overall Dimension(mm)	8910×2500×3760	8650×2500×3840	9800×2496×3850
Total Weight (kg)	25000	25000	25000
Equipment Weight(kg)	11815	12000	13220
Rated Load (kg)	12990	12870	11650
Drive Type	6x4	6x4	6x4
Max. Travel Speed	90km/h	85km/h	90km/h
Tyre Type	11.00R-20	11.00R-20	11.00R-20
Wheel Base	3650+1350MM	3450+1450MM	3800+1400MM
Others	Seat with air bag, Air conditioner
Applicable to concrete truck mixer	6m3	7m3	9m3
Other chassis can be customized
