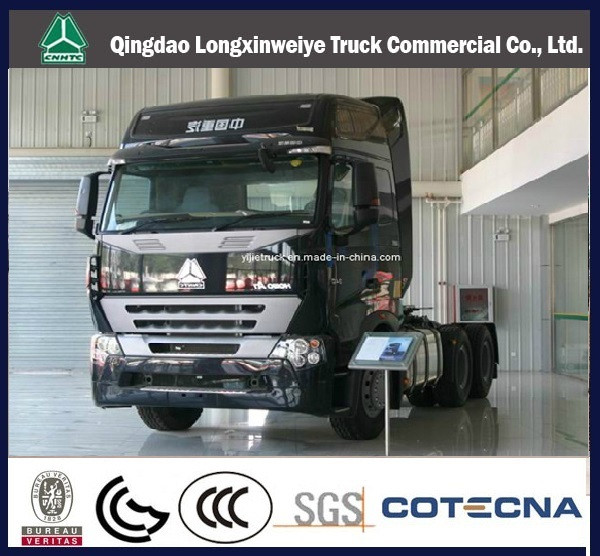

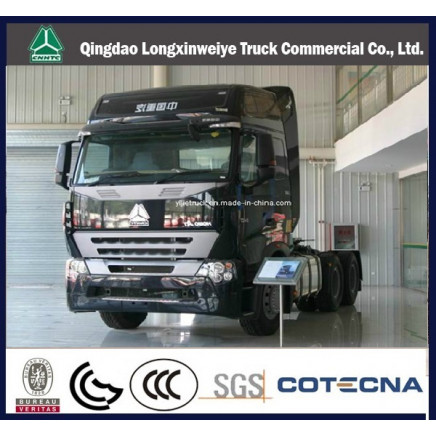

Cnhtc Sinotruck HOWO 380HP 6X4 Trailer Truck (ZZ4257N3247N1B)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Unit

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:SINOTRUK

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4257N3247N1B

Transmission Type:Manual

Power:Diesel

Load Capacity:?50t

Emission Standard:Euro 2

Drive Wheel:6×4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SINOTRUK

Packing:Nude Packing

Origin:Shangdong, China

Production Capacity:60000units/Year

Product Description

Cnhtc Sinotruck HOWO 380HP 6x4 Tractor Truck/Trailer Truck (ZZ4257N3247N1B)

Brand: Sinotruk-HOWO A7
Cab: A7-G/p, 2 seats with 2 beds or 1 bed, electric winodw and mirrors
Engine: 371HP
Transmission: 10 forward and 2 reverse
Front axle: HF7/HF9, loading capacity: 7000kgs/9000kgs
Driving axle: ST16/HC16, loading capacity: 2*16000kgs
Tire: 12.00R20 12R22.5 315/80R22.5
This tractor truck can be used to carry 40' container semi-trailer, low-bed semi-trailer, dump trailer and so on.

Cnhtc Sinotruk HOWO 380HP 6X4 tractor truck/trailer truck(ZZ4257N3247N1B
Engine	Maker: SINOTRUK
	Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling
	Engine model: D10.3 8 EURO III
	Max. output: 3 80 hp@2200rpm
	Equipped with Silicon oil fan
	Engine Brake: EV B
	Brake power: 230-250hp
Clutch	? 430B pull-type diaphragm clutch
WABCO	ABS+ASR+EBL+TPM
Transmission	SINOTRUK HW1 8 710 (mechanical type)
Front Axle	HF7 road-use front axle, 7 tons loading capacity, plate (disc) brake
Rear Axle	HW1697 (HOWO strengthened axle, double reduction driving axle)
Rear Axle	Ratio: 3.7 3 (4.22 are optional)
Chassis	Front overhang (mm): 15 40
	Rear overhang (mm): 845/870
	Wheel base (mm): 3225+1350
	Front track (mm): 2022
	Rear track (mm): 1830/1830
Steering	ZF8098 integral type power-steering
Wheel & Types	315/80R22.5 tubeless tire
Wheel & Types	Spring suspension: 4/12, 9/12, 4/-
Driver' s cab	A7-P , low roof with one sleeping bed. Air seats... Electricwindow lift. VDO music system (CD with USB interface). Double sleepers. Electric cab lifting system. BEHR A/C.
Dimensions in ( mm )	Dimension(mm): 698524963850
	Max speed: 101 km/h
	Max. gradeability(%): 25
	Approach angle: 15 degree
	Departure angle: 46 degree
	5th wheel: 3.5 "
weight	Kerb. mass: 8 800kg
	Total mass: 25 000kg
	Max towing load: 4 0 000kg
	Fuel tank capacity (L): 400L Aluminium alloy
	Fuel consumption (L/100km): 36
