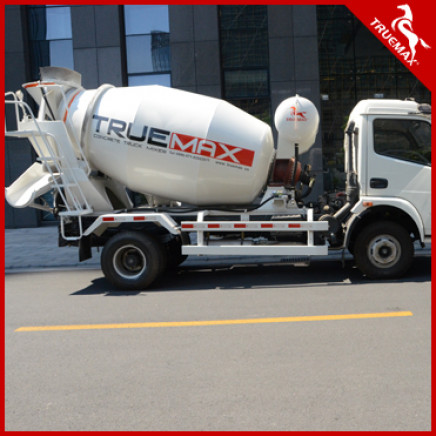

Concrete Heavy Truck Cement Mixer Concrete Mixer Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB

Payment Terms:L/C, T/T

Trademark:Truemax

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CTM6

Certification:ISO9000

Transmission Type:Manual

Emission Standard:State four

Displacement:1.8

Engine Type:2 Stroke

Payload:20T

Fuel:Diesel

Drive Mode:8x4

Maximum Horsepower:300-400hp

Condition:New

Vehicle:Dongfeng,Beiben,Sino

Different Chassia:Yes

Only Buy Upper Parts:Yes

Export Markets:Global

Additional Info.

Trademark:Truemax

Standard:ISO9001: 2000 and CE CERTIFICAT

Origin:China

HS Code:8479109000

Production Capacity:10 Units/Month

Product Description

MORE TRUEMAX PROJECTS ,PLEASE CHECK OUR COMPANY SHOW.
http://cntruemax.en.made-in-china.com/company-show.html

1.   Closed loop hydraulic system and constant hydraulic oil temperature controller are used. Key hydraulic accessories include: hydraulic plunger pump, adjuster mechanism with servo, hydraulic motor and reducer are all made by internationally known brands and offer stable and reliable and reliable performances.

2.   Pneumatic Water Supple System. The pressure is provided by the air tank on the chassis with pressure protection devices .The Water inlet connector fits for both normal water pipe and fire fitting.

3.   Multi-outlet washing design. Cleaning requirements are met by the three fixed pipes for washing the agitator drum ,charging hopper and discharging hopper respectively ,and another flexible water outlet.

4.   Three-point Operation System. One in the cab to allow control of the agitator drum to turn forward and reverse, and to perform the "feed" ,"discharge", "agitate" and "stop" functions .Two at the rear with one operation handle at each side to perform "charge" "accelerate" ,"discharge" ,"agitate" and "stop" .Three are interlocking.

Other Chassis can be customized

SPECIFICATIONS	3M³	6M³
Geometric volume of drum(m³)	4.53	9.7
Mixing capacity(m³)	3	6
Material of blades/drum	Q345/4,B520JJ/5	Q345
Inclination angle for drum(@)	15	16
Padding rate(%)	67%	61.85%
Residual rate(%)	<1%	<0.16%
Charging speed(m³/min)	?3	?3
Discharging speed(m³/min)	?1	?1.2
Mixing speed(r/min)	0-16	0-14
Capacity for water tank(\|)	300	360
Air pressure(mpa)	0.4	0.4
Max.External diameter of drum(mm)	1600	2118
Length of the drum(mm)	3100	3588
A Upper-fixing Length(mm)	4100	5530
B Subframe Length(mm)	3500	4690
C Chute Position(mm)	600	840
D Center of Gravity when Fully Load(mm)	1600	2325
E Hopper Height(mm)	1840	2500
F Upper-fixing Height(mm)	1840	2565
Overall dimension(LWH/mm)	410018401840	553024902565
Weight(Kg)	2500	3800
Water supple	Air pressure	Air pressure
