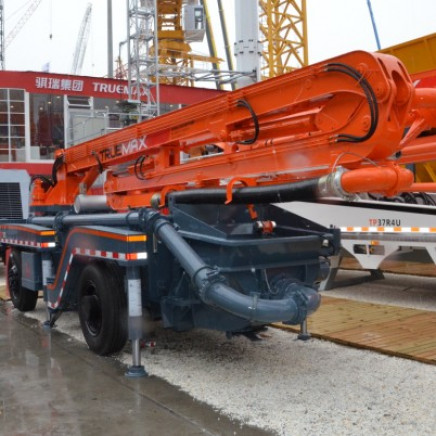

Pump and Boom Together Concrete Boom Pump

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T, D/P

Trademark:TRUEMAX

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BP25/17self-drive

Type:Concrete Pump

Shotcrete Type:Wet

Machining Process:Hydraulic

Productivity:25?/h

Certification:Utility Models and Designs

Condition:New

Color:Orange

Max. Radius of Placing Boom:17m

Max Concrete Pumping Pressure:8.6MPa

Hot Sale Country:Egyt

Diesel Engine Brand:Cummins

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:TRUEMAX

Packing:Standard or According to Your Detailed Requirement

Origin:Hangzhou, China

Production Capacity:5 Units/Month

Product Description

-BP25/17 combine the functions of pump and boom in one machine, which achieve the delivery
and pouring of concrete to the building. It is easy to operateit in a low cost of use.

-BP25/17 can be operated by one operator and the movement of boom can be controlled in use
of wireless remote control which may save labor and easy to operate.

-Optimized arc-shaped hopper make a high inhalation rate.

-Boom is slewed in tower rotation by hydraulic drive with 360°.

-Main electronic components are world-famous brands.

-Standard configuration with wireless remote control make the operating more easy and convenient.

Model	Unit	BP25/17 (Self-drive)
Max theoretical concrete conveying capacity	m³/h	25
Max concrete pumping pressure	Mpa	8.6
System pressure	Mpa	28
Distributing valve form	/	S valve
Concrete cylinder size(diameter x stroke)	mm	180×800
Outlet diameter	mm	?150
Inner diameter of the delivery pipe	mm	?125
Diesel engine brand	/	Cummins
Engine power	kw	74
Max aggregate size	mm	30
Max. radius of placing boom	m	17
Boom Type	/	"Z" type
Boom section	/	3
Slewing range	/	360°
Mode of control	/	Radio remote control
Tread distance	mm	3400
Overall dimension (length x width x height)	mm	7900×2260×2620
Weight	kg	106000
Max.drive speed	Km/h	3.5
Max.gradeablity	°	25

Specifications are subject to change without prior notice

Truemax Overview
TRUEMAX was established in 2003 at Hangzhou, China. In the past 10 years, TRUEMAX has established over 10 manufacturing base, to offer the one-stop services in construction machinery filed, including R&D, designing, manufacturing, quality control and delivery.
With core principle of "True to Quality, Ture to Customer", our product has been exported to more than 100 countries with high customer appreciation & brand popularity.
TRUEMAX provide the full series of construction machinery and one-stop overall solution. Our product range covers pre-fabrication including aggregate crushing, dedusting and block making; concrete series including mixing, batching, pumping & placing; construction series, such as tower crane, building hoist, suspension platform and lifting basket; light construction machinery, including compacting, cutting, surface finishing machines & rebar processing machines.
Especially the concrete placing boom, we're the No. 1 in term of products variety, with top quality placing boom of placing radius ranging from 10 meters to 51 meters over 10 different series, the excellent quality & performance has been tested & approved by being used in lots of world famous high buildings.

The manufacturing base of TRUEMAX adopts 6S management system. Quality control system are implemented strictly in the whole procedures, including components purchasing, fabricating and manufacturing, packing and dispatch pre-inspection, ensuring the perfect quality assurance for all of our products. With international certificates like ISO9001:2008, CE & SGS, TRUEMAX guarantee the international first-class level for all of our products.
At present, TRUEMAX is the"Grade A Export Enterprise of China Customs", "Famous Export Brand of Zhejiang", " Famous Export Brand of Hangzhou", "High & New Technology Enterprise of Hangzhou", "Top 100 innovation-type foreign trade enterprise of Hangzhou"&" Key enterprises of Xiacheng district, Hangzhou", with support from Zhejiang Public Foreign Trade Service Platforms consecutively in 2012 and 2013.

"Quality achieves outstanding success, innovation leads the bright future", our working principle has leads the rapid expansion of TRUEMAX, with branches and spare parts distribution centers established oversea step by step. We're targeting to complete the global layout of TRUEMAX Agent within next 2 years, and "TRUEMAX 6S" stores within 5years.
