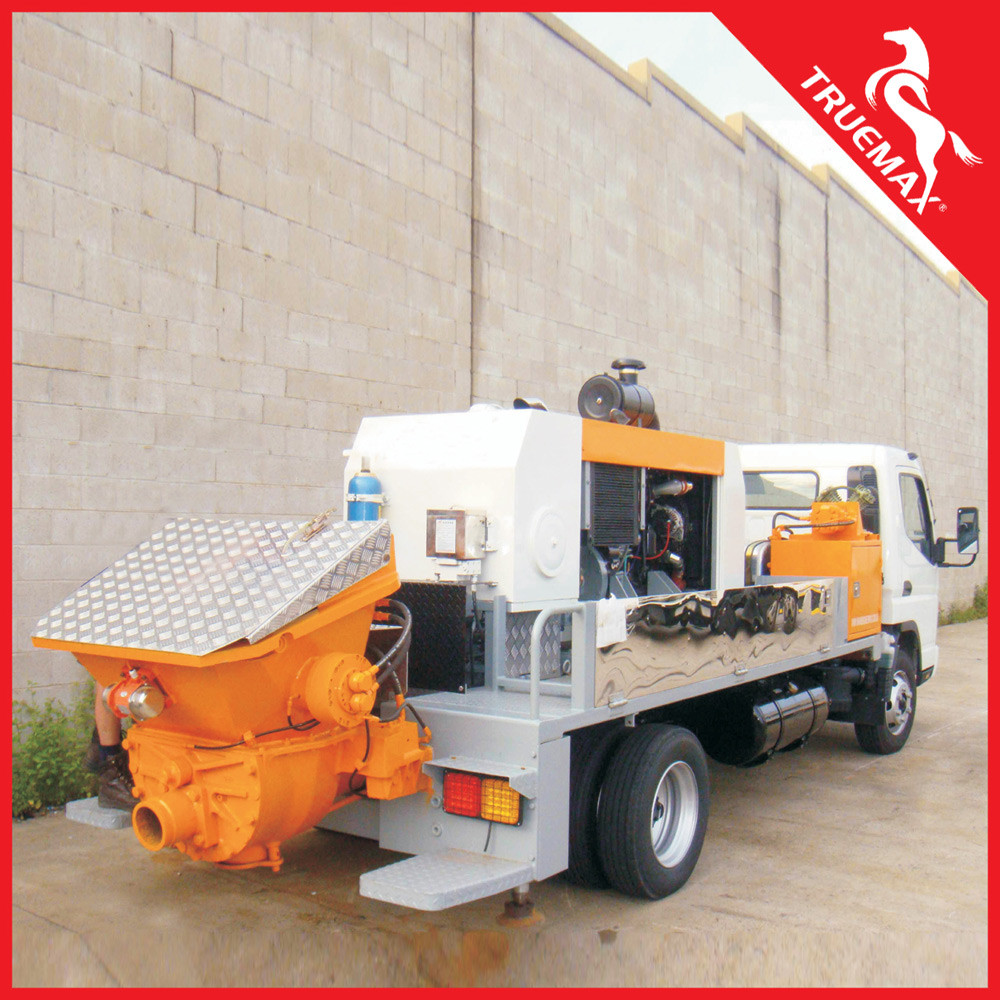

Hydraulic System Truck-Mounted Line Pump

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 set

Trade Terms:FOB, CIF

Payment Terms:L/C, T/T

Trademark:TRUEMAX

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Truemax-LP70.10.93DU

Type:Concrete Pump

Certification:ISO9001: 2000

Condition:New

Engine:Caterpiller

Export Markets:Global

Additional Info.

Trademark:TRUEMAX

Packing:Standard Packing or According to Your Requirements

Origin:China

HS Code:8413400000

Production Capacity:2 Units/Month

Product Description

Main features:

Strong power system
1. Engine_world famous brands such as CATERPILLER, DEUTZ and so on
2. Throttle double insurance
The perfect combination of manual and auto throttle provides you convenience.
3. Top brand main pump
Main pumps are original imported from Germany Rexroth, they feature first-class quality and reliable.

High efficiency pumping system
1 Double-pump and double-circuit hydraulic system
2 Adopt high-low pressure auto switch.
3 The special design of hopper and vane reduces the space of mixing blind angle thus makes the machine suitable for many kinds of concrete.;

Excellent electric system
1 PLC adopted MITSUBIHI, Siemens and other well known brands,
2. Wired/wireless remote control system

Processing details:

Delivery details:

Hydraulic System Truck-Mounted Line Pump

Specifications:

Model		Unit	LP70.10.93DU
Chassis	Chassis Brand	/	Dongfeng
	Engine(For Pumping Kit)	/	Cummins
	Engine Power	kw	93
	Engine Rated	rpm	2200
Pumping System	Max. Pumping Capacity(Rod side/Piston side)	m3/h	70/50
	Max. Output Pressure(Rod side/Piston side)	Mpa	5.7/10
	Hydraulic Oil Way Form	/	Open Circuit
	System Pressure	Mpa	30
	Main Hydraulic Pump Model	/	Kawasaki/Rexroth
	Hydraulic Oil Tank Volume	L	320
	Water Tank Volume	L	500
	High Pressure Water Pump	/	NNOVI (Italy)
	Main Valve Group	/	Atos/Sunny/Lixin
	Distributing Valve Form	/	Rock valve
	Main Oil Cylinder Size	mm	?100×1400
	Concrete cylinder size	mm	?180×1400
	Concrete hopper Volume	L	450
	Concrete hopper height	mm	1200
Others	Overall Dimension	mm	4910x2040x2205
Others	Weight (Without Chassis)	k	4100
