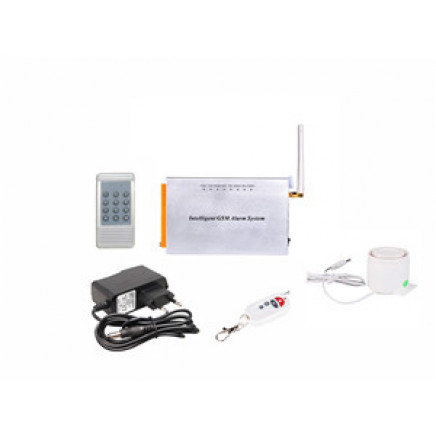

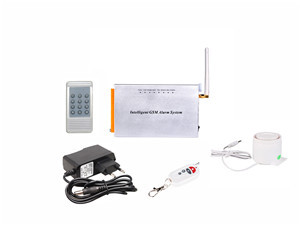

Digital Inputs Home Wireless Intruder Alarm System with GPS Tracking

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:200 Pieces

Trade Terms:FOB

Payment Terms:T/T

Trademark:Cayera

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:AM-F3

Type:Anti-Theft Alarm

Signal Transmission:Wireless Alarm

Working Mode:Active

Certification:CE, ISO, FCC, RoHS

Application:Indoor

Sensor Type:Infrared Alarm System

Working Principle:Electro-Optical Type

Transmission Mode:Wireless

Alarm Volume (within 1m):?80dB

Receive Frequency:315MHz

Usage:Door, Personal, Auto, Window, Fire, Smoke

GSM Network Frequency:850/1900MHz or 900/1800MHz

Alarm Response Time:Less Than 8s

Standby Battery:DC8.4V

Standby Battery Working Hours:More Than 10 Hours

Working Power Consumption:Less Than 5W

Operating Temperature:-20deg to +60deg

Export Markets:Global

Additional Info.

Trademark:Cayera

Standard:CE, FCC, ROHS

Origin:Shenzhen, China

Production Capacity:50000 PCS/Year

Product Description

Instruction

The alarm system adopts SMS data transmission and voice platform of GSM network to send control command and receive alarm remotely. When a signal is detected by detectors, the detectors will send alarm signal to host immediately, then the host sends alarm SMS to its preset mobile phone numbers, and meanwhile auto-dials its preset telephone/mobile phone numbers and enter into monitoring automatically.

Main functions

8 digital inputs and 10 wireless zones.
Can program open/closed alarm of digital inputs.
Digital inputs are adopted optical-coupled isolators, which can prevent external high voltage from destroying internal components.
Send SMS automatically to report the state of digital input when it returns normal status.
Send SMS to 3 preset mobile phone numbers while alarming.
Auto-dial 3 preset phone numbers while alarming and monitor the sound at site.
Modify zone name and enquire status of alarm host by SMS demand.
With standby rechargeable battery and external power failurealarm.
Aluminum alloy casing.
Connect with alarm centre through GSM network.

Specification

a) GSM network frequency: 850/1900MHZ or 900/1800MHZ
b) External power failure alarm Start-time: less than 2s
c) Alarm response time
Less than 8s (GSM in normality)
d) Power requirements: Input: AC110V~ 220V 50Hz ~ 60Hz
Output: DC9V~ 12V
Standby battery: DC8.4V
Standby battery working hours: more than 10 hours
e) Working power consumption: less than 5W
f) Working conditions
Operating temperature: -20ºC to +60ºC
Humidity: 20% to 95%
