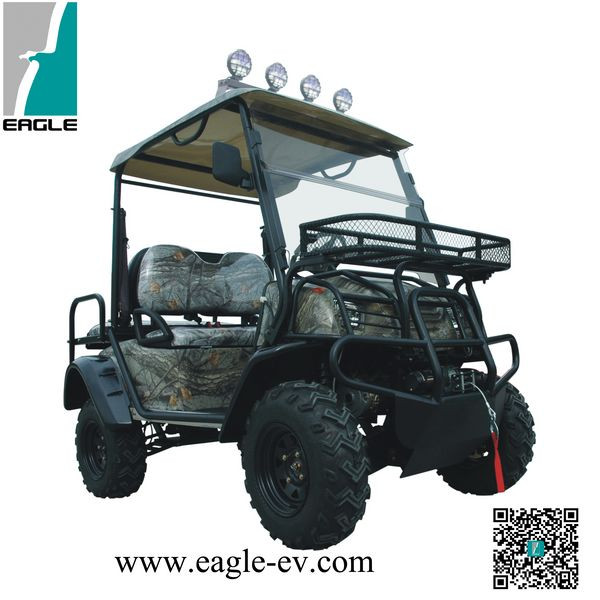

| Model | EG6020A4D |
| System | 48V/4KW Sepex |
| Key Components |
|
|
| Battery | 8xT105(185Ah@5hr rate) |
| Motor | Front 3.8KW Chinese motor+rear 5.3KW Chinese motor |
| Controller | 2XCurtis 1244 (400A@2minutes) |
| Performance |
|
|
| Passenger capacity | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >40 |
| Max. speed @12.49:1 gear ratio | 32 |
| Minimum turning radius (m) | 3.8(150inch) |
| Max. climbing ability (loaded) @ 12.49:1 gear ratio | 45% |
| Max. movement after brake at speed of 20km/h | ?4m |
| Max. loading weight | 320kgs(882lbs) |
| Net weight | 840kgs |
| Dimensions |
|
|
| Overall dimensions (mm) | 3030x1395x1990(without searching light) |
| Min. ground clearance (mm) | 415(16inch) |
| Wheelbase (mm) | 1660 |
| Front wheel tread (mm) | 850 |
| Rear wheel tread (mm) | 975 |
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) |
| Body and Frame |
|
|
| Chassis | Welded steel framework with phosphate+electro-coating treatment |
| Roof frame | Steel frame with phosphate+powder coating treatment,black color |
| Roof frame in camo color |
|
| Body | PP plastic front body + PP plastic rear body |
| Color (front body, rear body and top) | camouflaged |
|
| solid color |
|
| Roof | Fibreglass |
|
| Canvas |
| Windshield | one-piece Organic glass |
| Windshield, hinged |
| laminated windshield |
|
| laminated windshield with wiper |
|
| 3point seat belt | \ |
| front bumper | Carbon steel, powder coating |
|
| Front bumper in camo color |
|
| Metallic steel guard above front body | Carbon steel, powder coating |
|
| Front basket | Carbon steel, powder coating |
|
| Top basket | Carbon steel, powder coating |
|
| Gun holder | \ |
|
| Towing bar | \ |
|
| Large Seats: |
|
| 1) backrest and cushion | Rebond seat + artificial leather |
| backrest and cushion in camo |
|
| 2) armrest | Formed |
| 3) plastic seat bottom | \ |
| Formed seat&backrest vinyl | not include rear flip-flop seat |
| Backrest cover in wood finish | \ |
| Floor | rubber |
| Dashboard in black plastic | battery power meter, power key, F/R switch, 4WD and 2WD switching button, winch switch; switch for searchlight (option) |
| Dashboard in wood finish | \ |
| Steering wheel in wood finish | \ |
| Beverage holders | 4 cups drink holders |
| Glove box | \ |
| Glove box door (include two locks) in black plastic | 2 doors per set |
| Glove box door (include two locks) in wood finish (inside and outside) | 2 doors per set |
| Side trim | stainless steel |
| Wheel fender in camo | \ |
|
| Score card holder | on steering wheel |
| Inner rear view mirror | One piece per cart in the middle of the windshield |
| Side rear view mirror | Two pieces per cart |
| Battery watering system,48V system | without water supply tool |
|
| Manual Pump | water supply tool (other water supply tools are available) |
| Electric system |
|
|
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. |
| Reversing alarm | \ |
| Meter(only available for 48V system) | speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator |
| 12V accessory plug | to be mounted on the dashboard |
| Winch | \ |
|
| Searching light | 4pcs |
|
| Hour meter | \ |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A |
| Steering and Suspension |
|
|
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4-wheel hydraulic disc brake + hand brake |
| Accelerator | Stepless speed change |
| Front suspension system | Independent suspension |
| Rear suspension system | Integrated rear end, leaf spring + shock absorber |
| Driving mode | Front axle drive and rear axle drive (4x4) |
| Gear ratio | 12.49:1 |
| Wheel & Tyre | 12x7 Steel wheel, 24 x 8-12 tyre |
| 12x7 steel Rim in camo color |
|
| 12x7 steel rim in black color |
|
| 12X7 steel wheel, 23x8.5-12 tyre |
|
