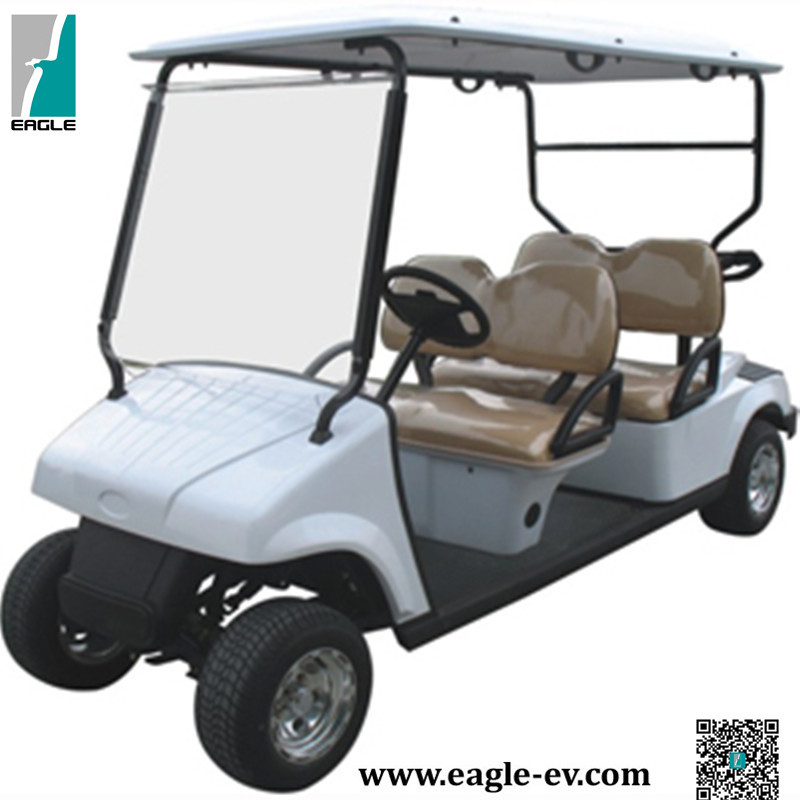

Electric Golf Cart, CE Approved, 4 Seats, Eg2046k

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF

Payment Terms:L/C, T/T

Trademark:Eagle

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EG2046K

Type:Buggy/Golf Carts

Seats:3-4

Power Fuel:Electric

Maximum Speed:>30 km/h

Suitable for:Golf Course

Certification:CE

Voltage of Battery:48V

Color:Customized

Description:Electric Golf Cart

Controller:Curtis 1266 (275A@2minutes

Motor:3kw ADC Motor

Battery:6pcsxt875(145ah@5hr Rate)

Max. Loading Weight:370kgs

Net Weight:542kgs

Overall Dimensions (Mm):3150X1180X1850

Min. Ground Clearance (Mm):120

Manual Pump:Water Supply Tool (Other Water Supply Tools Are AV

Export Markets:Global

Additional Info.

Trademark:Eagle

Standard:CE

Origin:China

Production Capacity:2500 Per Month

Product Description

Company History
Founded in 1999, Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. is a leading manufacturer specializing in designing and manufacturing 4-wheel electric vehicles. Our company has a workshop area of 30,000 square meters and 400 workers. Our current daily production capacity is 100units per day, this can be adjusted with the order volume increasing.
Our company has gotten the unique production license for electric vehicle by the Supervision Bureau of Quality and Technology of China. In 2003, we were approved by ISO9001. In 2006, we were approved by WMI quality system to get our own VIN.

With effective management and specialized talents, our company is dedicated to offering top quality products with competitive price and first class after-sales service.

Why EV?
There should be at least three reasons for EV:
Firstly, decrease pollution! EV as a zero-emission-car can help improve the environment a lot;
secondly, decrease the cost! Though the initial buy cost of EV is higher than gasoline car, the maintenance cost of EV will be extremely lower than gasoline car. Based on calculation, for a 48V EV, it only consumes 2KWH electricity per 100kms. Cost is much lower than gasoline car.
Thirdly, energy independent! For a country that is lack of oil source, it should find a way to make it independent from oil. Water resource, sun resource and wind resource are potential alternative resource; the problem is to find a medium to storage the energy. Then battery will be the best choice at this moment.

Key Components
Battery	6PCSxT875(145Ah@5hr rate)
Motor	3KW ADC motor
Controller	Curtis 1266 (275A@2minutes
Performance
Passenger capacity	4
Range (loaded) based on flat road at a speed of 20km/h (km)*	>55
Minimum turning radius (m)	4.5
Max. movement after brake at speed of 20km/h	?4m
Max. loading weight	370kgs
Net weight	542kgs
Dimensions
Overall dimensions (mm)	3150X1180X1850
Min. ground clearance (mm)	120
Wheelbase (mm)	2450
Front wheel tread (mm)	855
Rear wheel tread (mm)	975
Body and Frame
Frame	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front body + PP plastic rear body
Roof	Fibreglass
Roof	Plastic
Windshield	one-piece Organic glass
Windshield	Windshield, hinged
Stainless steel package	including front upright, rear upright, sweater basket and bracket
Floor	rubber
Center storage basket	Large volume
Dashboard in black plastic	forward/reverse switch, battery capacity indicator, ignition key
Beverage holders	4 cups drink holders
Side trim	plastic
Score card holder	on steering wheel
Towing bracket	on front of golf car
Inner rear view mirror	1 piece per cart in the middle of the windshield
Side rear view mirror	Two pieces per cart
Battery watering system,48V system	without water supply tool
Battery watering system,36V system	without water supply tool
Manual Pump	water supply tool (other water supply tools are available)
Electric system
Lighting system and horn	2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn.
12V accessory plug	to be mounted on the dashboard
Solar Panel	48V, 185W
Cooler	12V DC, 6L
Charger	China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Mechanical brake
	4-wheel hydraulic brake + hand brake
	4-wheel hydraulic brake, front disc brake, rear drum brake
Accelerator	Stepless speed change
Suspension system	Front and rear plate spring + cylinder hydraulic shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio 12.76:1
Rear axle	Integrated, Gear ratio 10.26:1
Wheel & Tyre	10x6 Alumimum wheel & 205/50-10 4PR
	6J-10 steel wheel with cap & 205/50-10 4PR
	87 steel wheel with cap & 188.5-8 6PR
