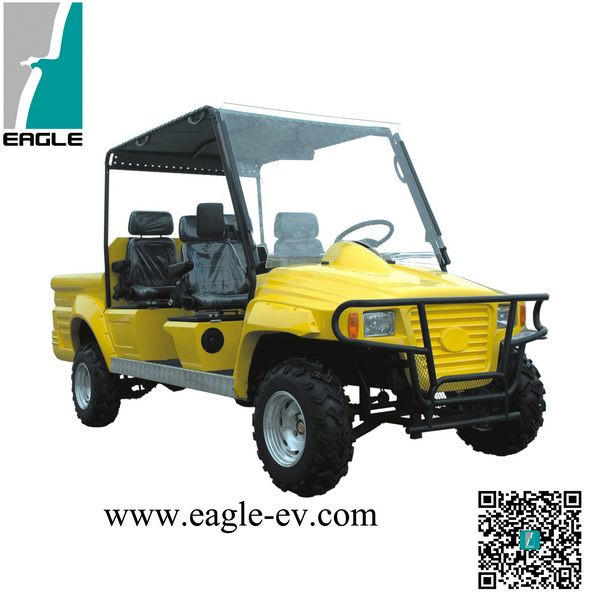

| Model | EG6042A | EG6042A02 |
| System | 72V/5KW Series | 72V/7.5KW AC |
| Key Components |
| Battery | 12xT105(185Ah@5hr rate) | 12xT105(185Ah@5hr rate) |
| Motor | 5KW Chinese motor | 7.5KW Chinese motor |
| Controller | Curtis 1209(400A@2minutes) | Zapi AC2(400A@2minutes) |
| Performance |
|
|
| Passenger capacity | 4 | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >70 | >75 |
| Max. speed | 50 | 50 |
| Minimum turning radius (m) | 5.42 | 5.42 |
| Max. climbing ability (loaded) | 0.2 | 0.2 |
| Max. movement after brake at speed of 20km/h | ?4m | ?4m |
| Max. loading weight | 620kgs | 620kgs |
| Net weight | 1136kgs | 1145kgs |
| Dimensions |
|
|
| Overall dimensions (mm) | 4150x1550x1950 |
| Cargo bed dimensions (mm) | 1090x1230x240 (inside) |
| Min. ground clearance (mm) | 190 |
| Wheelbase (mm) | 2580 |
| Front wheel tread (mm) | 1250 |
| Rear wheel tread (mm) | 1310 |
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) |
| Body and Frame |
|
|
| Frame | Welded steel framework with sand blasting+paint treatment |
| Body | Fibreglass |
| Roof | Fiberglass |
|
| Steel frame+ canvas roof |
|
| Front windshield | laminated windshield |
|
| One-piece organic glass |
|
| 2point seat belt | \ |
| Large Seats: |
|
| 1) backrest and cushion | Rebond seat + artificial leather |
| 2) armrest | Formed armrest |
| 3) Seatbelt | Retractable two point type |
|
| Floor | Bamboo board+ plastic |
| Cover for rear bed | plywood+ galvanized steel plate |
|
| air spring |
|
| steering wheel in wood finish |
|
|
| Beverage holders | 1 cup drink holders |
| Side rear view mirror | Two pieces per cart |
| Inner rear view mirror | One piece per car |
|
| Battery watering system,72V system | without water supply tool |
|
| Manual Pump | water supply tool (other water supply tools are available) |
| Hand bar | \ |
|
| Electric system |
|
|
| Lighting system and horn | front headlights, front turn signals, rear turn signals, taillights( combined brake lights with reverse lights), with DC-DC converter (converting from 72V to 12V) |
| Reversing alarm | \ |
| Horn | Normal beeper |
|
| Dashboard meter | current meter, voltmeter, speedometer |
| Combined Switch | Lights system and horn |
|
| Audio System | Radio with MP3 receiver (12v)(including 2 water-proof speakers, wired microphone) |
| CD player to replace radio |
|
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 72V, 25A |
| Onboard charger,imported, 96-247V 47-65Hz, 72V/12A, 2pcs |
| Steering and Suspension |
|
|
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4-wheel hydraulic brake + hand brake |
| Transmission system | Clutch, 4F+1R gear box, transmission shaft |
| Front suspension system | independent suspension, cylinder hydraulic vibration absorber |
| Rear suspension system | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
| Wheel & Tyre | 12X7 steel wheel+ 24*8-12 tyre |
|
| 12x7 steel wheel + 23*8.5-12 tyre |
