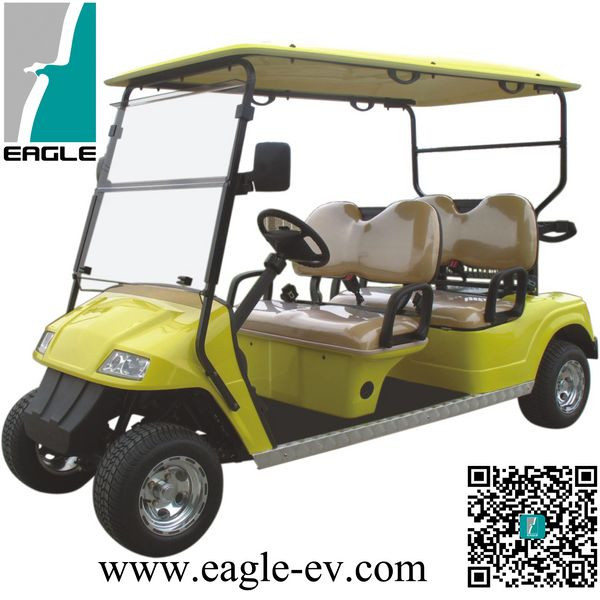

| Model | EG2048K | EG2048K01 | EG2048K02 |
| System | 48V/3KW Sepex | 48V/4KW Sepex | 48V/4KW Sepex |
| Key Components |
|
|
|
| Battery | 6PCSxT875(145Ah@5hr rate) | 6PCSxT875(145Ah@5hr rate) | 8PCSxT105(185Ah@5hr rate) |
| Motor | 3KW ADC motor | 3.8KW Chinese motor | 3.8KW Chinese motor |
| Controller | Curtis 1266 (275A@2minutes | Curtis 1268 (400A@2minutes) | Curtis 1268 (400A@2minutes) |
| Performance |
|
|
|
| Passenger capacity | 4 | 4 | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >55 | >55 | >80 |
| Max. speed @12.76:1 gear ratio | 25 | 32 | 32 |
| Max. speed @10.26:1 gear ratio | 32 | 40 | 40 |
| Minimum turning radius (m) | 4.5 | 4.5 | 4.5 |
| Max. climbing ability (loaded) @ 12.76:1 gear ratio | 25% | 25% | 25% |
| Max. climbing ability (loaded) @ 10.26:1 gear ratio | 15% | 20% | 20% |
| Max. movement after brake at speed of 20km/h | ?4m | ?4m | ?4m |
| Max. loading weight | 370kgs | 370kgs | 370kgs |
| Net weight | 542kgs | 544kgs | 594kgs |
| Dimensions |
|
|
|
| Overall dimensions (mm) | 3110X1180X1890 |
| Min. ground clearance (mm) | 120 |
| Wheelbase (mm) | 2450 |
| Front wheel tread (mm) | 855 |
| Rear wheel tread (mm) | 975 |
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) |
| Body and Frame |
|
|
|
| Frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body |
| Roof | Fibreglass |
| Plastic |
|
|
| Windshield | one-piece Organic glass |
| Windshield, hinged |
| Laminated windshield |
| Laminated windshield with wiper |
| Stainless steel package | including front upright, rear upright, sweater basket and bracket |
| Aluminum roof support | including front upright, rear upright,, caddie handle |
| 2point seat belt | \ |
| Large Seats: |
|
| 1) backrest and cushion | Rebond seat + artificial leather |
| 2) armrest | Formed |
| 3) plastic seat bottom | Last row of seat |
| Formed seat&backrest vinyl | exclude the front seat cushion |
| Backrest cover in wood finish | \ |
| Floor | rubber |
| Center storage basket | Large volume |
| Golf bag holder | \ |
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key |
| Dashboard in wood finish | \ |
| Steering wheel in wood finish | \ |
| Beverage holders | 4 cups drink holders |
| Glove box | \ |
| Glove box door (include two locks) in black plastic | 2 doors per set |
| Glove box door (include two locks) in wood finish (inside and outside) | 2 doors per set |
| Side trim | Aluminum |
| Score card holder | on steering wheel |
| Towing bracket | on front of golf car |
| Inner rear view mirror | 1 piece per cart in the middle of the windshield |
| Side rear view mirror | Two pieces per cart |
| Battery watering system,48V system | without water supply tool |
| Battery watering system,36V system | without water supply tool |
| Manual Pump | water supply tool (other water supply tools are available) |
| Overshadowing Curtain | \ |
|
|
| Enclosure | \ |
| Electric system |
|
|
|
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. |
| Reversing alarm | \ |
| Meter (only available for 48V system) | speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator |
| Police Light |
|
|
|
| 12V accessory plug | to be mounted on the dashboard |
| Hour meter | \ |
| Solar Panel | 48V, 185W |
| Cooler | 12V DC, 6L |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A |
| Steering and Suspension |
|
|
|
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Right hand drive system | \ |
|
|
| Brake system | Mechanical brake |
| 4-wheel hydraulic brake + hand brake |
| 4-wheel hydraulic brake, front disc brake, rear drum brake |
| Accelerator | Stepless speed change |
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated, Gear ratio 12.76:1 |
| Integrated, Gear ratio 10.26:1 |
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR |
| 6J-10 steel wheel with cap & 205/50-10 4PR |
| 8*7 steel wheel with cap & 18*8.5-8 6PR |
