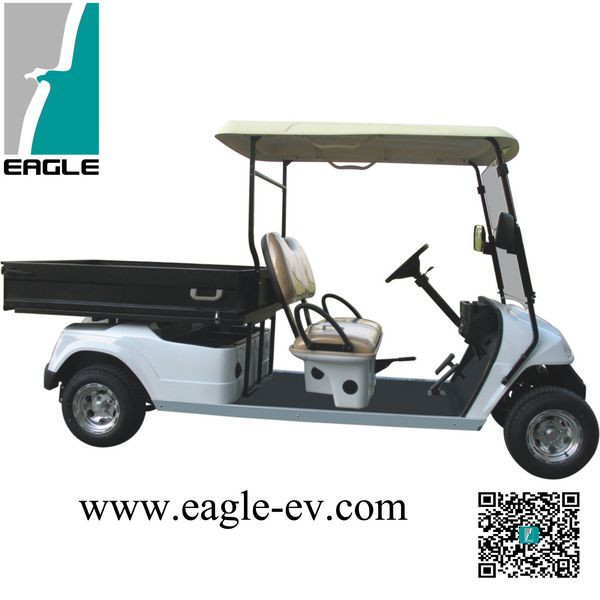

| Model | EG2048HCXR-01 |
| System | 48V/5KW AC Sepex |
| Key Components |
|
| Battery | 8PCSxT105(185Ah@5hr rate) |
| Motor | 5KW Chinese motor |
| Controller | Curtis 1236 (400A@2minutes) |
| Performance |
|
|
| Passenger capacity | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >100 |
| Max. speed (km/h) | 40 |
| Minimum turning radius (m) | 4.5 |
| Max. climbing ability (loaded) | 20% |
| Max. movement after brake at speed of 20km/h | ?4m |
| Max. loading weight | 300kgs |
| Net weight | 536kgs |
| Dimensions |
|
|
| Overall dimensions (mm) | 3420*1290*2060 |
| Min. ground clearance (mm) | 120 |
| Wheelbase (mm) | 1700 |
| Front wheel tread (mm) | 855 |
| Rear wheel tread (mm) | 975 |
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) |
| Body and Frame |
|
|
| Frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body |
| Roof | Fiberglass |
| Roof handle |
|
| Windshield | one-piece Laminated glass |
| Wiper and water tank | / |
|
| Upright and bracket | Carbon Steel, powder coating |
| 3point seat belt | 4 pieces |
| Large Seats: |
|
| 1) backrest and cushion | Rebond seat + artificial leather |
| 2) armrest | Formed |
| 3) plastic seat bottom | \ |
| Backrest cover in wood finish | \ |
| Floor | rubber |
| Center storage basket | Large volume |
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key |
| Dashboard in wood finish | \ |
| Steering wheel in wood finish | \ |
| Beverage holders | 4 cups drink holders |
| Glove box | \ |
| Glove box door (include two locks) in black plastic | 2 doors per set |
| Glove box door (include two locks) in wood finish (inside and outside) | 2 doors per set |
| Side trim | Aluminum |
| Score card holder | on steering wheel |
| Towing bracket | on front of golf car |
| Side rear view mirror | Two pieces per cart |
| Battery watering system,48V system | without water supply tool |
|
| Manual Pump | water supply tool (other water supply tools are available) |
| Electric system |
|
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. |
| Reversing alarm | \ |
| Meter | speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator |
| 12V accessory plug | to be mounted on the dashboard |
| Hour meter | \ |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A |
| Steering and Suspension |
|
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4-wheel hydraulic brake, front disc brake, rear drum brake |
| 4-wheel hydraulic brake + hand brake |
| Accelerator | Stepless speed change |
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated, Gear ratio 10.25:1 |
| Integrated, Gear ratio 12.49:1(Only for AC ststem) |
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR |
