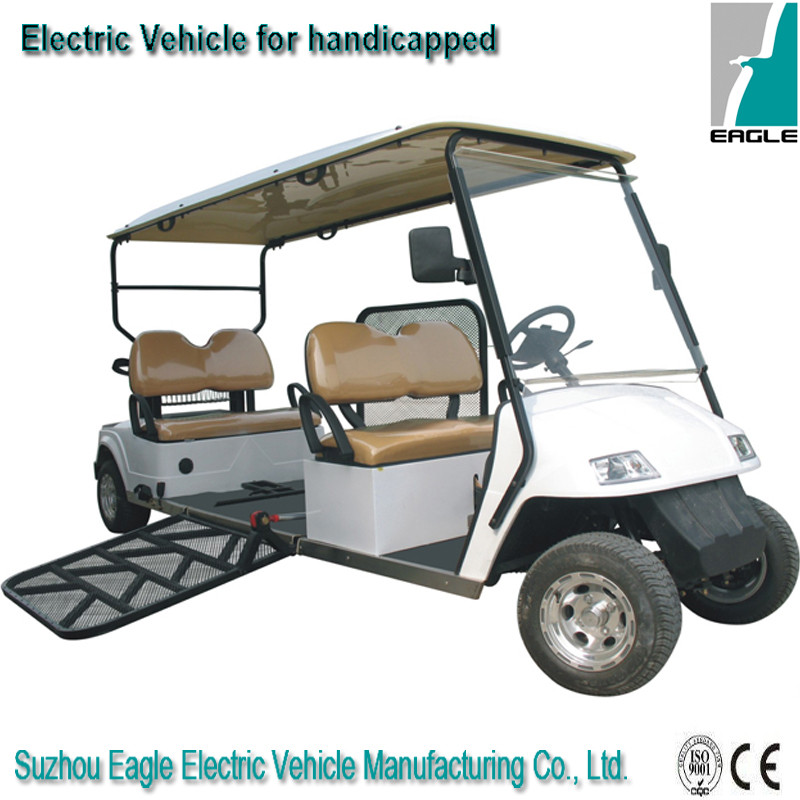

Electric Handicapped Vehicle, with Hydraulic Ramp for Wheelchair, Eg2068t, CE Approved

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 unit

Trade Terms:FOB, EXW, CIF

Payment Terms:L/C, T/T

Trademark:Eagle

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EG2068T

Type:Buggy/Golf Carts

Seats:4

Power:4kw/5kw/5.3kw

Power Fuel:Electric

Maximum Speed:>30 km/h

Gradeability:20-30%

Suitable for:Golf Course

Certification:CE, ISO

Voltage of Battery:48V

Color:Blue

Wheel:4 Wheel

Battery Type:Lead Acid

Motor Type:DC / AC System

Drive System:Left Hand / Right Hand Drive

Controller:Curtis / Zapi Controller

Charger:on Board Charger

Export Markets:Global

Additional Info.

Trademark:Eagle

Packing:SKD in a Steel Rack

Standard:CE, ISO

Origin:China

HS Code:8703101900

Production Capacity:2500 Units Per Month

Product Description

Electric handicapped vehicle, EG2068Tis most popular golf cart model in Suzhou Eagle. It has a delicate design. 48V is available. Motor power from 3.8KW to 5.3KW, aluminum rim

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. Was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: Electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc...It has a workshop area of 20, 000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; This can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Suzhou Eagle takes quality as its lifeline. Eagle invests a lot to make production moulds, jigs and checking moulds to ensure precise component parts. Eagle invests a lot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc. To ensure component parts are produced and treated correctly. Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles. In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.
Eagle people believe good service has the same importance as good quality. Eagle's sales persons can be reached in 24 hours x 365 days. Eagle's sales persons are willing to answer any emails from their customers within 24 hours. Eagle provides all the spare parts (Except battery) of its vehicles.
With effective management and specialized talents, Suzhou Eagle is dedicated to offering top quality products with competitive price and first class after-sales service.

Battery	Deep cycle, lead acid battery, Trojan brand, imported
Motor Power	3.8KW/5KW/5.3KW DC / AC
Controller	Curtis brand, Separately excited, imported
Passenger capacity	4
Range (loaded) based on flat road at a speed of 20km/h (km)	>60--100 depends on battery setup
Max. speed	21-40 depends on motor and rear axle setup
Minimum turning radius (m)	3.5
Max. climbing ability	20%
Max. loading weight	530kgs
Overall dimensions (mm)	3860x1180x1890
Body and Frame
Frame	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front body + PP plastic rear body
Roof	injected plastic
Windshield	one-piece Organic glass
Large Seats:	Rebond seat + artificial leather, formed armrest, plastic seat bottom
Floor	rubber
Dashboard in black plastic	forward/reverse switch, battery capacity indicator, ignition key
Beverage holders	4 cups drink holders
Electric system
Lighting system and horn	2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. Reversing alarm
Charger	input 110V-240V~50Hz-60Hz, output 36V/48V, 20A/25A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	hydraulic brake
Accelerator	Stepless speed change
Suspension system	Front and rear plate spring + cylinder hydraulic shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated
Wheel & Tyre	10x6 Alumimum wheel & 205/50-10 4PR
Color
Body Color	6 standard color: Pure white/Pure Black/Champagne/Coca Cola Red/Navy Blue/Metallic Green
Seat Color	2 standard color: white and tan
Others
Provides various options like: hinged windshield, wood finish dashboard/backrest cover/steering wheel, onboard charger, STS roof supports, 4-wheel hydraulic brake, enclosure, solar panel, cooler,etc..
