Factory Supply Brake Shoe Riveting and Grinding Machine

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1/ Piece

Price:US $1.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: T/T, Western Union

Price Valid Time:From Jul 20, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZM-280

Name:Brake Lining Riveting and Grinding Machine

Power:Pneumatic

Max Rivet Diameter:10mm

Air Source Pressure:0.8-1MPa

Stroke:35mm

Export Markets:Global

Additional Info.

Trademark:Haolida

Packing:Export Plywood Case

Standard:ISO9001

Origin:Shandong China

HS Code:84639000

Production Capacity:300PCS Per Month

Product Description

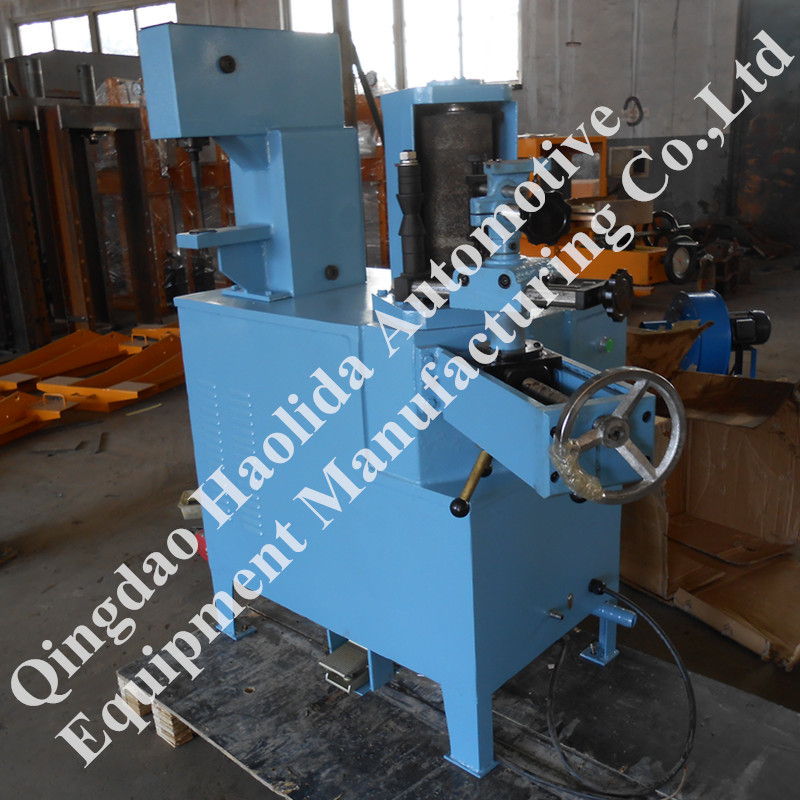

ZM-280 Model Factory Supply Brake Shoe Riveting and Grinding Machine

General introduction
It is used for riveting rivets of all kinds of brake shoes\brake disc\brake drum\brake lining \ brake pad and other auto parts.
It can grind brake shoes to proper size.

Advantages:

1.It uses air source as power.
2.It is suitable for heavy duty truck brake lingings,etc.
3.Pressure can be adjusted according to size and material of the rivets.
4.Pedal room is big.
5.It can be matched with dust collecting system, to collect dust, it is environment friendly.
6.Good discount based on order quantity

Technical parameter:

Model no	ZM-280
Material	Metal plate
Painting	High quality paint
Color	Blue&black
Max rivet force	60KN(6T)
Suitable rivet diameter	3-10mm
Power	1.5KW
RPM of grinding wheel spindle	3000r/min
Max grinding width	280mm
Accessories:
Riveters: 6pcs, used for working on ?3, ?4,?5,?6,?8,?10 rivets Puncher: 2pcs, used to remove old rivets 3mm-10mm
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 100% in advance
Delivery time	10days after receiving downpayment
HS code	8463900090
Packing sizes	Export plywood case 1300780146mm=1.48CBM N.W: 90kgs G.W: 120kgs

Why Choose us:

1.32 years' design,development and produce experience
2.Professional R&D team
3.Strict QC
4.A good pre-sale and after-sale service
5.Can design and make according to customer's requests

Company Introcution:

Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment.
Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers' request.
