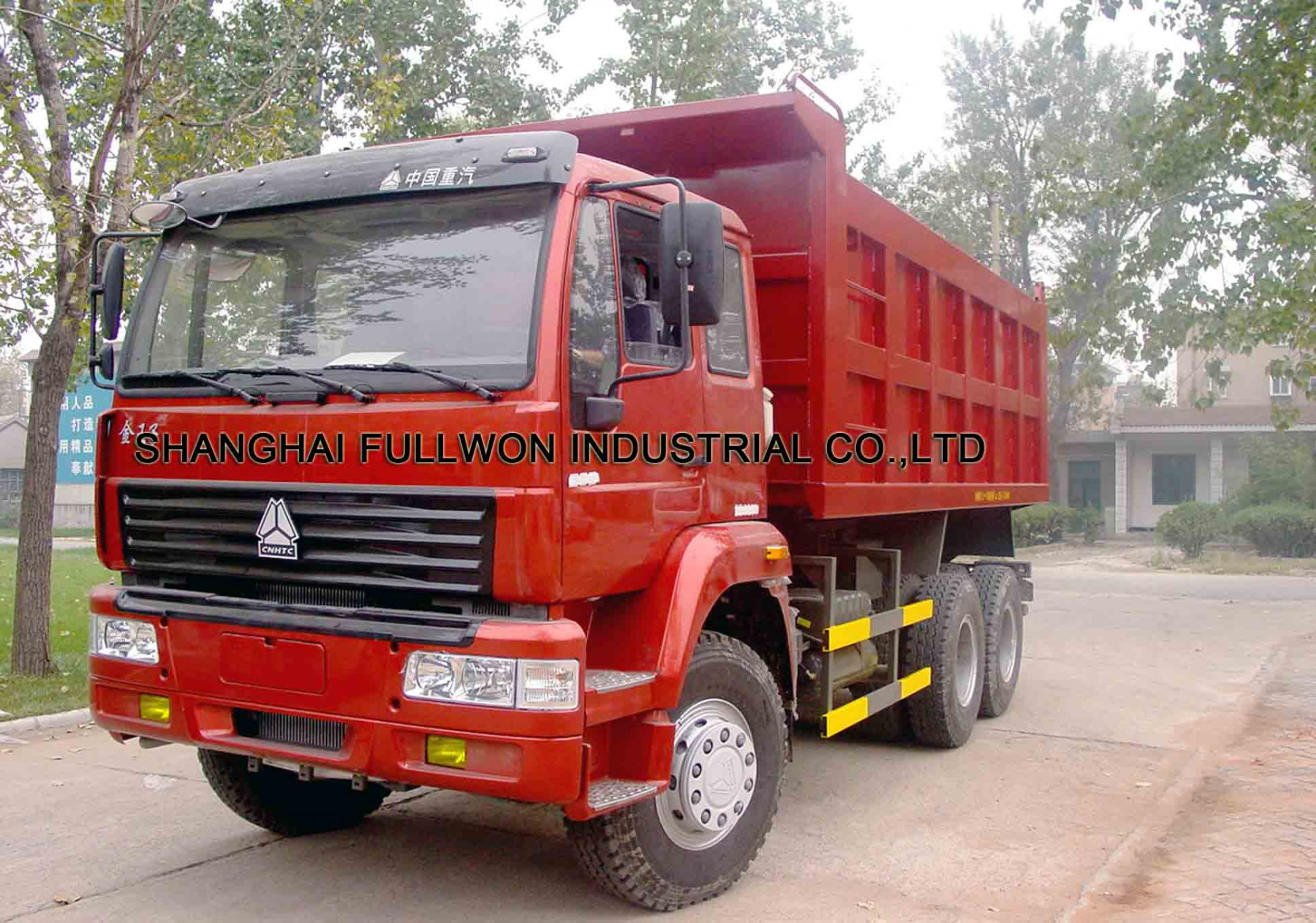

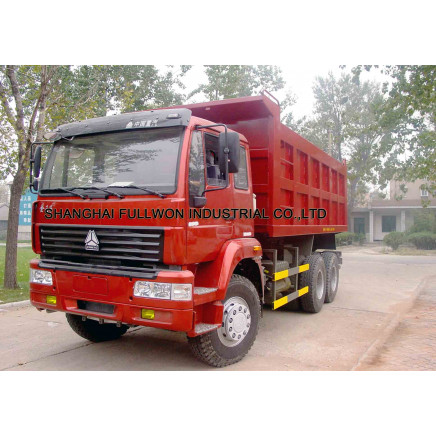

Golden prince 6x4 DUMP TRUCK 290HP/213KW/EURO2

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Trade Terms:FOB

Trademark:CNHTC

Standard:CCC

Production Capacity:50, 000 PCS/YEAR

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Additional Info.

Trademark:CNHTC

Standard:CCC

Production Capacity:50, 000 PCS/YEAR

Product Description

Cargo body size: 5800*1200 mm / 6300*1200 mm /6500*1200 mm
Cargo wheel base: 4.2 / 4.4 / 4.6 m

Cab	MAN L2000 standard
	No sleeper without AC
	Left Hand Drive
Cargo body size	Wheel base 4.2 m			Wheel base 4.4 m	Wheel base 4.6 m
Length	5800 mm			6300 mm	6500 mm
Width	2300 mm			2300 mm	2300 mm
Height	1200(1400,1500) mm			1200(1400,1500) mm	1200(1400,1500) mm
Volume	16.01(18.68,20.01)M 3			17.39(20.29,21.74) M 3	17.94(20.93,22.43) mm
Steel Thickness
Bottom	8 mm			8 mm	8 mm
Side	4 mm			4 mm	4 mm
Dimensions	Wheel base 4.2 m			Wheel base 4.4 m	Wheel base 4.6 m
Length	8655 mm			9155 mm	9405 mm
Width	2490 mm			2490 mm	2490 mm
Height	3250 mm			3250 mm	3250 mm
Wheel base	4200 mm			4400 mm	4550 mm
Gross Weight	25000 kg			25000 kg	25000 kg
Product Highlight	MAN L2000 cab from Germany VOSS Brake interface VDO Instrument and Electric control Behr Intercooler and water tank
Engine	WD615-energy-efficient EURO 2- produced by Sinotruk
Clutch	* GF420J-introduced from STEYR strengthed ?420 coil spring clutch made by Sinotruk, euipped with 260-336ps engine.
Transmission
HW15710	Sinotruk 10 Transmission, Satellite epicyclic gear strcture, first gear ratio 14.28, torque 1500NM,for 336HP or below models as standarded configuration.
Driving Axle	HC16 is Sinotruck's independent research, high reliable twin driving axle with cast axle housing hub reduction, option for ratio 4.22
Suspension	* Widened special structure deflector * With groove spring * Dump truck lateral stabilizing device * Absolutely suitable for dump truck working condition
Front Axle	Golden prince 7 tons of JW07 front axle shaft, 2008 after several technical improvement and ascend
Steering system	JL80Z China made, inherit the technology of ZF8098
Tyre	11.00-20 12.00-20	12.00-20	11.00R20 12.00R20	12.00R20	315/80R22.5
Oil tank	300 L
Option	ABS ABS+ASC AC 16 twin driving axle Distance recorder right hand drive
