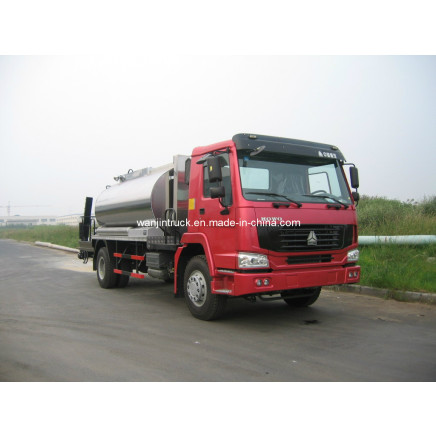

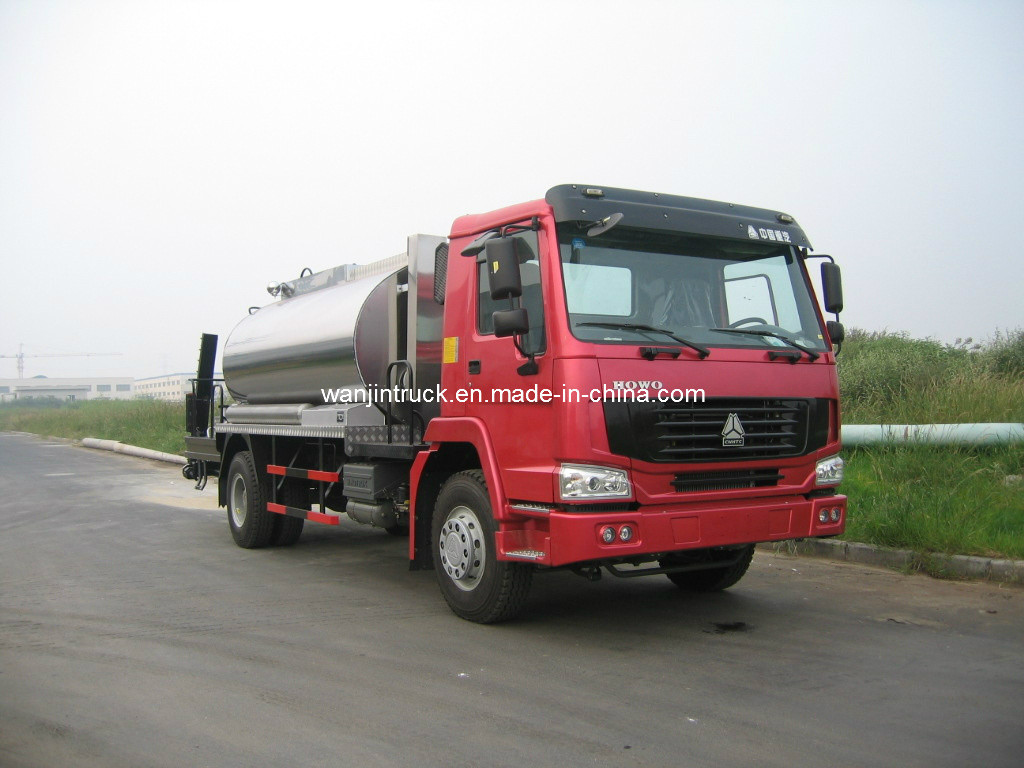

HOWO Bitumen 6*4 Sprayer Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 70000.0-130000.0/ Piece

Price:$70000.0 - $130000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 28, 2015 To Aug 28, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HOWO Bitumen

Engine:266HP

Transmission:Hw15710

Front Axle:Hf7

Driving Axle:Hc16

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SINOTRUK

Packing:Nude

Standard:CCC

Origin:China

HS Code:8704190000

Production Capacity:20000

Product Description

HOWO Bitumen Sprayer Truck
Cab: HW70, 2 seats no bed, with air conditioner
Engine: 266hp
Transmission: HW15710
Front axle: HF7
Driving axle: HC16
Tire: 12R22.5
Asphalt Tank: 10M3

Condition:New
Storage:bitumen
Drive Wheel:6x4
Horsepower:251 - 350hp
Transmission Type:Manual
Fuel Type:Diesel
Tank Volume:10001 - 15000L
Engine Capacity:9L
Dimensions (L x W x H) (mm):10100*2500 *3563,3420
Gross Vehicle Weight:9000
color:red
equipment:insulating layer

Weight	Curb Weight(kg)		8800
	Gross Vehicle Weight(kg)		25000
	Gross Combination Weight(kg)		50000
Dimension	Overall Dimensions(mm)	Length	6800
		Width	2496
		Height	2958(3718)
	Wheel Base(mm)		3225+1350,3200+1400
	Minimum Ground Clearance(mm)		298
Performance Parameters()	Maximum Speed(km/h)		102
	Economic Speed(km/h)		82
	Maximum Gradability(%)		35
	Minimum Turning Diameter(m)		15
Specification	Cabin		HW76(2 seats and 1 bed)
	Engine	Model	WD615.87
		Net Power(Hp)/Rotating Speed(r/min)	290/2200
		Maximum Torque(Nm)/Rotating Speed(r/min)	1160/1100-1600
	Gearbox		HW15710
	Clutch(mm)		430
	Rear Axle	Type	ST16
		Gear Ratio	4.42
	Oil Tank(L)		400
	Tires		12.00R20, 12.00R22.5, 295/80R22.5, 315/80R22.5

Additional Information
