Green Power Electric City Bike En15194 Approval

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
10.0	US $ 460/ Piece

Price:US $460.0 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jul 19, 2013 To Sep 17, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:TDF30Z

Running Distance:<45KM

Motor:Brushless

Brake:V Brake, Disc Brake, Servo Brake

Max Speed:20-40km/h

Battery Type:Lithium-Ion Battery

Frame Material:Aluminum/Alloy

Voltage of Battery:36V

Power:200-250W

Certification:CE, En15194

Maximum Loading Capacity:75-120kg

Wheel Hub:Alloy Hubs

Wheel Size:26"

Folded:Unfolded

Charging Time:<6h

Part:Wheel

Export Markets:Global

Additional Info.

Trademark:HONG DU

Packing:Carton

Standard:CE, EN15194

Origin:Jiangsu, China

HS Code:8710901010

Production Capacity:500, 000PCS/Year

Product Description

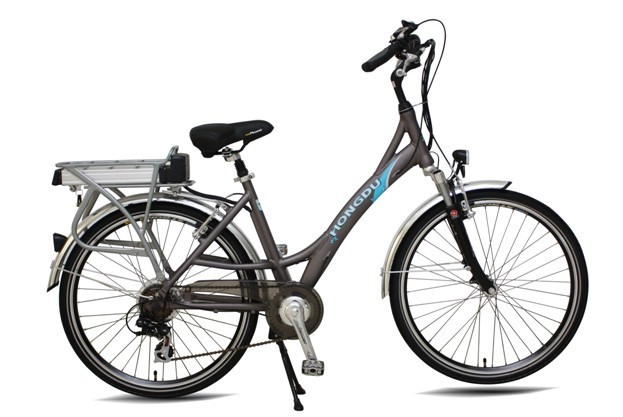

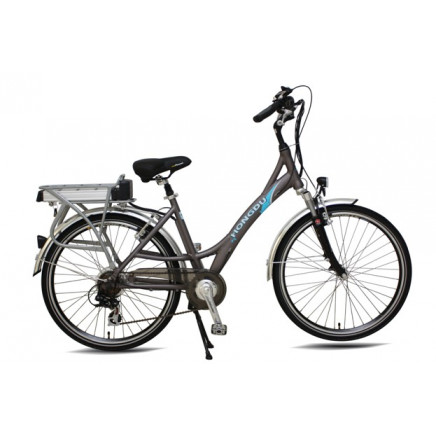

Green power electric city bike EN15194 approval

Features:
1) Frame: Aluminum alloy(Painting)
2) Front fork: ZOOM Suspension
3) Motor: 250W brushless
4) Derailleur: Shimano, 7-speed(Tourney)
5) PAS and grip accelerator
6) Battery: 36V, 10Ah Lithium battery in rear rack
7) Wheel size: 26", reflection tyre
8) Brake: F/R V Brake
9) Speed: 0 - 25km/h
10)Range: 40-45(PAS)

Outer packing:
Carton dimensions: 145*27*86cm

N. W.: 27kg
G. W.: 32kg

Conveyance:
Qty/20GP: 78 units
Qty/40HQ: 192 units

Model	TDF30Z
Frame	Alloy Aluminum
Fork	Zoom, Suspension
Handbar&Stem	Zoom, Alloy Aluminum
Wheel&Rim	26", Alloy Al. Rim
Tyre&Tube	26", Kenda,
Derailleur	Shimano, 7 Speed
Brake	F-V, R-Servo Brake
Mudguard	Alloy Plastic or Aluminum
Motor	250W
Controller	36V15A,
Display	LED (3speed Optional)
Throttle	Wuxing(Optional)
Max Loading	95KG
Rear Rack	Aluminum
Saddle Post	Suspension
Battery	36V10AH Lithium
Range	45KM(PAS)
Speed	0-25KM/H
Charging Time	6 Hours
Net Weight	25KG
Gross Weight	30KG
Packing	Carton, 78pcs/20GP 192pcs/40HQ
