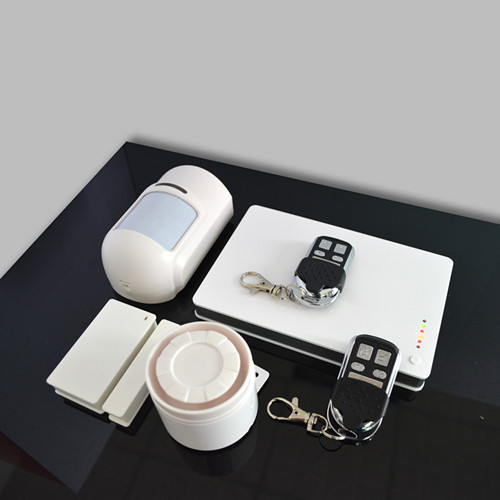

High Quality Smart Network Home Security Wireless Intruder Alarm System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:200 Pieces

Trade Terms:FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms:T/T

Trademark:Cayera

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:AM-F1A

Type:Anti-Theft Alarm

Signal Transmission:Wireless Alarm

Working Mode:Active

Certification:CE, FCC, RoHS

Application:Indoor

Sensor Type:Infrared Alarm System

Working Principle:Electro-Optical Type

Transmission Mode:Wireless

Alarm Volume (within 1m):?80dB

Receive Frequency:315MHz

Usage:Door, Personal, Auto, Window, Fire, Smoke

Remote Monitoring:Support

GSM Frequency:900/1800/850/1900MHz (Optional)

Wireless Frequency:315MHz/433MHz for Optional

Alarm Response Time:Less Than 8s

Power Supply:12V 1A

Working Consumption:< 0.6W

Export Markets:Global

Additional Info.

Trademark:Cayera

Standard:CE, FCC, ROHS

Origin:Shenzhen, China

Production Capacity:50000 PCS/Year

Product Description

Features:

SMS alert features: If any wireless sensors are triggered, the GSM alarm control panel will send SMS to preprogrammed cell phone numbers for alerting, e.g. Wireless door magnetic sensor, wireless PIR motion detector, etc.
SMS report when arm/disarm through remote controllers. When you arm or disarm via remote controllers of command alarm system, you will not know the system in arm or disarm status, but you will know it with this smart alarm system. Since the system will report a SMS about the arm/disarm status when you arm or disarm the system through remote controllers.
The name of zone 01 to 10 can be modified via SMS command.
For example, you want to change the original "Zone 5" into "Financial room PIR Alarm"
Setup independent zone for separately disarm
Such as the financial room, you may setup the financial room one or several as independent zones. The independent zones can be only disarmed through SMS command, the wireless keypad & remote controllers are unable to program it.
Two ways communication
Connect an external speaker for realizing two ways communication, using as a mobile phone to call any number and have two way talking
With user-friendly voice reminder when you operate the system through phone keypad.
Record voice function, you can pre-record a voice to the alarm panel and it will be automatically playback when the alarm panel calls you. The pre-record voice can be like something "Office's kitchen smoke sensor", "parent's living room PIR sensor" etc, you can make it as you like, but within 10 seconds.
Exit time delay 30seconds; so that you have enough time to walk out the house and close your door without trigger any sensors.
Support unlimited wireless remote controllers, wireless sensors, and 2 or 3 wireless flashing sirens.
With 2 wired zones for connecting wired sensors, which keep high safety and no transmitting distance. Such as, wired fence detectors, wired beams detectors for enclosure, wired PIR motion sensor which far from alarm panel.
Specification

GSM frequency	900/1800/850/1900MHz
Wireless frequency	315MHz/433MHz for optional
Alarm response time	8s (GSM signal in normal)
Power requirements	AC 220V 50Hz/60Hz
Power supply	12V 1A
Working consumption	0.6W
Backup battery	DC7.4V/850MA, lithium battery
Backup battery working hours:	More than10 hours
Working condition:	temperature:-20 ºC~+60ºC , humidity:less than95% (non-condensation)
Size	150mm(L)×100mm(W)×16mm(H)
Record time	10s
Remote control the system	Arm
	Disarm
	Monitor
	Talking(External)
	Play records
Basic Functions	LED Display Arm/Disarm/Stay arm/Alarm/Setting
	Default language:English; French, Spanish and Russian extra
	Password protection function
	Operating the host by SMS and Phone
	External power on and off SMS notification
	Reset factory setting
