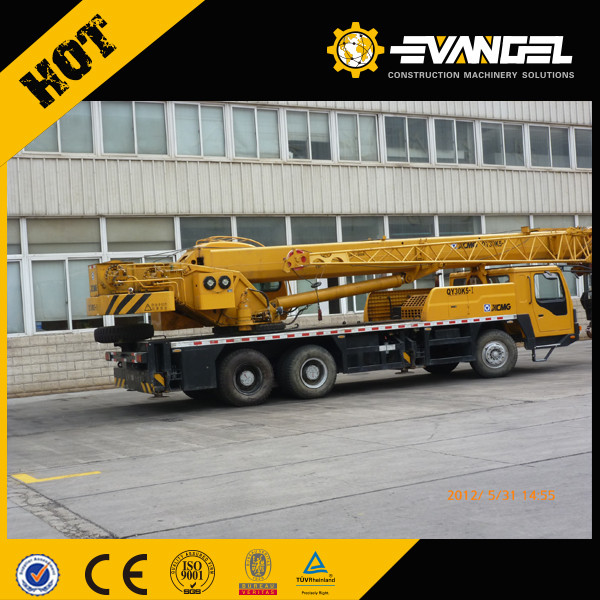

Hot XCMG Brand New 30ton Mobile Truck Crane Qy30k5

More Views

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1000/ Piece

Price:US $1000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Nov 18, 2014 To Feb 18, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Model NO.:QY30K5

Type:Small Crane

Application:Construction Usage, Workshop Usage, Container Usage, Mineral Area Usage

Tower Crane Type:Under Slewing Cranes

Sling Type:Cable

Main Girder Form:Double Girder

Power Source:Hydraulic

Moving Type:Orbital

Installation:Assembled

Certification:ISO9001: 2000

Condition:New

Color:Gloden Yellow

Export Markets:Global

Trademark:XCMG

Packing:RO-RO Boat

Standard:40FR

Origin:Jiangsu China

HS Code:87051092

Production Capacity:100/Month

1. XCMG
2. Engine SC8DK280Q3 (Eurolll)
3. Max. Travel speed 75km/h
4. Max, total rated lifting load 30t

QY30K5	QY30K5
Classificatory	Item	Unit	Parameter
Dimensions	Overall length	mm	12070
	Overall width	mm	2500
	Overall height	mm	3390
Weight	Dead weight in travel state	kg	32400
	Front axle load	kg	7000
	Rear axle load	kg	25400
Power	Engine model		SC8DK280Q3(Euro)
	Engine rated output	kW/(r/min.)	206/2200 213/2200
	Engine rated torque	N.m/(r/min.)	1170/1400 1160/1400 1112/1400
Travel	Max. travel speed	km/h	75
	Min. turning diameter	m	20
	Min. ground clearance	mm	291
	Approach angle	°	16
	Departure angle	°	13
	Max. gradeability	%	30
	Fuel consumption of per 100km	L	40
Lifting performance	Max.total rated lifting load	t	30
	Min. rated working radius	mm	3000
	Turning radius at swing table tail	m	3.065
	Max. load moment	KN.m	1025
	Base boom	m	10.1
	Fully extended boom	m	38.7
	Fully-extend boom+Jib	m	47.6
	Outrigger longitudinal distance span	m	5.85
	Outrigger lateral distance span	m	6
Working speed	Boom elevating time	s	68
	Boom full extending time	s	150/140
	Max. swing speed	r/min	2.5
	Main winch max.speed(single line)	m/min	120
	Auxiliary winch max.speed(single line)	m/min	120
