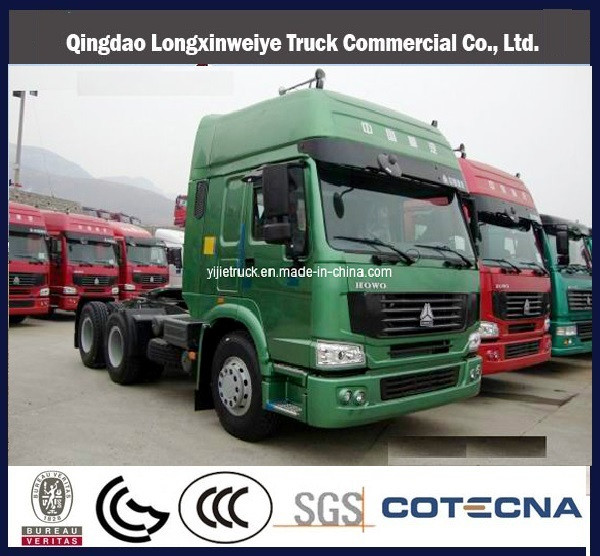

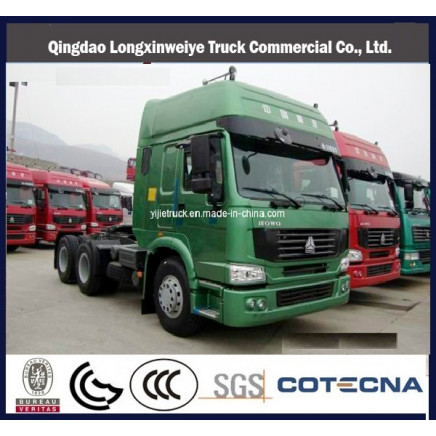

HOWO 6X4 380HP 80ton Capacity Tractor Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:SINOTRUK-HOWO

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4257N3241V

Transmission Type:Manual

Power:Diesel

Load Capacity:30t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SINOTRUK-HOWO

Standard:Euro 2 or 3

Origin:China

Production Capacity:3000sets/Month

Product Description

HOWO 6x4 380HP 80ton Capacity Tractor Truck

1. HOWO tractor truck 6x4 type
2. Based on Steyr technology
3. WD615 STR engine (336, 375, 420HP)
4. Strong chassis for heavy mission
5. HW19710 transmission
6. ZF8098 steering
7. Timely delivery

Model
Cabin	Four point s suspension Howo Cabin with spring and air shock absorber, A/C, Adjustable steering, Sun cover
Engine	Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
Model:	371HP/273KW	STEYR technology(CNHTC)
	Displacement(L):	9.726liter (Euro 2 standard)
	Max torque:	1500NM@1100-1600rpm
	Bore/stoke:	126mm/130mm
	Fuel consumption:	193g /kwh
Gear box	CNHTC	Max torque:1900NM
	Model:	HW19710
	Speed:	10speed, 2 reverse
Axle(front/rear)
Front axle	HF7 STEYR technology front steering axle
Tandem	HW1697 double reduction hub reductor driving axle
Clutch	D430 diaphragm type clutch
Brake	Service brake: Dual lines air brake
	Parking brake: Spring-Power drum brake
	Engine brake: Engine exhaust brake(EVB)
Steering	ZF8098, driver sit at the left hand side
Electric Equipment
	Operating voltage:		24Vnegative grounded
	Starter:		24V,5.4KW
	Alternator		28V,758W
	Battery voltage		12V/135Ah,cigar lighter
Frame	Strengthen steel frame, designed according to tough road condition.
Tyre	10+1 spare tyre with rim
	12.00-20
Suspension system: Strongthen heavy duty Leaf spring type
	Front/Rear			9/12
Overall dimension(mm): 6800 x 2496 x 3000(Length x width x height)
Wheelbase	3225+1350mm
Track:
	Front/Rear			2041/1830
	Approach/Departure angle			16/70
	Front /Rear overhang			1500/725
	Max speed			90km/h
Kerb weight:	9180kg
Oil tank capacity	400L fuel tank
