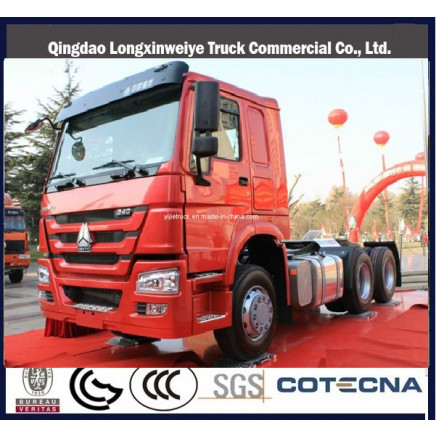

HOWO Tractor Head Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 38700/

Price:US $38700.0 / Unit

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 26, 2015 To Aug 26, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:ZZ4257N3241W

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 2

Drive Wheel:6×4

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:HOWO

Packing:Nude Packing

Standard:Euro 2 or 3

Origin:China

Production Capacity:3000sets/Month

Product Description

HOWO Tractor Head Trailer

Cabin: HOWO cab, flat head, double doors, tippable, normal-roof

Engine brand: Sino truck

Engine model: WD615.69

Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line

with water cooling, turbo-charging & intercooling

Displacement: 9.726 liters

Max. Output: 336HP@2200rpm

Gear box:

Model: Fuller 9 speeds

Front axle: HOWO front axle

Rear axle: HOWO 1697 drive axles

Tyre: 12.00-20 (rim: 8.5-20)

Spring: 9/12

Fuel consumption (L/100km): 36

Max. Speed (km/h): 90

Max. Gradeability(%): 25

Kerb. Mass: 9180kg

Total mass: 25000kg

Max towing load: 39200kg

Max load on 5th wheel: 15690kg

Wheel base (mm): 3225+1350/3200+1400

Front overhang (mm): 1500

Rear overhang (mm): 725/700

Front track (mm): 2022

Rear track (mm): 1830

Turning circle diameter: 24m

Approach angle: 16 degree

Departure angle: 70 degree

Dimension (mm): 6800x2496x2958/3718

Descriptions & Specifications

HOWO 6x4 Tractor ZZ4257S3241W LHD ;

Engine: CNHTC brand WD615.47, 371hp , Euro II emission;

Transmission: 10 speeds (HW15710);

Steering: ZF8098 hydraulic steering with power assistance;

Front axle: HF9 drum, rated loading 9T;

Rear axle:HC16 double reduction driving axle;

Cab: HW76 length cab, with A/C , with one sleeper;

Rim/Tyres: 12.00-20 bias tire;

Brake: with ABS system;

Wheelbase(front/rear):2022/1850mm;

Max speed: 102 km/h;
