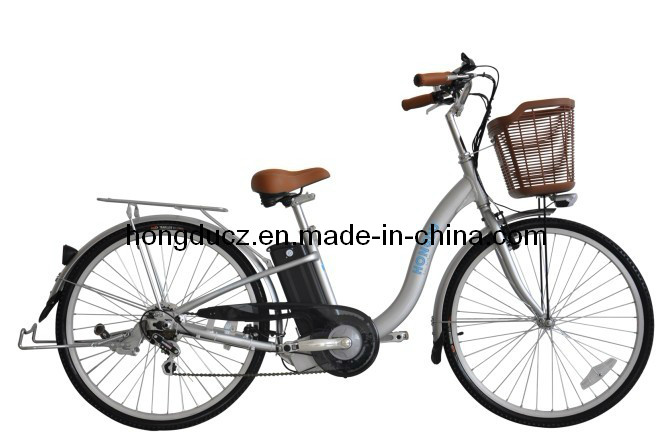

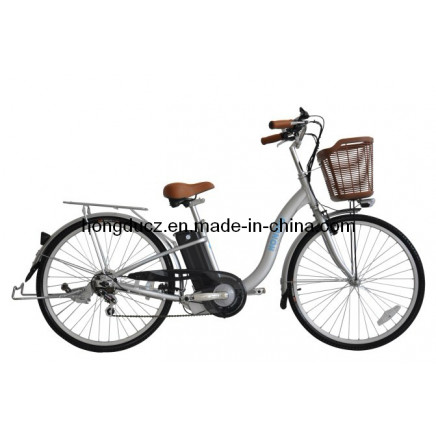

Lady Electric Bicycle with Basket for Shopping (TDF06Z-1213)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
10.0	US $ 498/ Piece

Price:US $498.0 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jul 01, 2013 To Oct 01, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:TDF06Z-1213

Running Distance:<45KM

Motor:Brushless

Brake:Front and Rear V Brake

Max Speed:20-40km/h

Battery Type:Lithium-Ion Battery

Frame Material:Aluminum/Alloy

Voltage of Battery:24V

Power:200-250W

Certification:CE

Maximum Loading Capacity:75-120kg

Wheel Hub:Alloy Hubs

Wheel Size:26"

Folded:Unfolded

Charging Time:6-8h

Part:Frame

Export Markets:Global

Additional Info.

Trademark:Hongdu

Packing:Carton

Standard:CE, EN15194

Origin:China

HS Code:8710901010

Production Capacity:500000PCS/Year

Product Description

Model: TDF06Z-1213
Battery: 24V 7AH Lithium battery
Frame: Alloy
Handle bar & stem: ZOOM, STEEL
Rim: Alloy silver
Wheel size: 26 inch
Derailleur: SHIMANO 6-speed(Tourney)
Brakes: F/V-brake, R/V brake

Motor: 250W brushless with gear
Display: 3 LED leven function
Working style: Pedal assisted&throttle controller
Charging time: 5-6hours
Range: 35-40km
Speed: 0-25km/h
NW: 22kgs incluing 2.2 kgs of battery
GW: 26kgs
CTN. Size: 165cm*27cm*77cm
Container loading qty: 80 units/20GP, 180units/40GP

Model	TDF06Z-1213
Frame	Alloy Aluminum
Fork	Steel
Handbar&Stem	Zoom, Steel
Wheel&Rim	26", Alloy Al. Rim
Tyre&Tube	26", Kenda,
Derailleur	Shimano, 6 Speed
Brake	F-V, R-V Brake
Mudguard	Aluminum
Motor	250W
Controller	36V15A,
Display	LED (3speed Optional)
Throttle	Wuxing(Optional)
Max Loading	95KG
Rear Rack	Steel
Saddle Post	Folding Steel
Battery	24V7AH Lithium
Range	35KM(PAS)
Speed	0-25KM/H
Charging Time	6 Hours
Net Weight	25KG
Gross Weight	30KG
Packing	Carton, 78pcs/20GP
