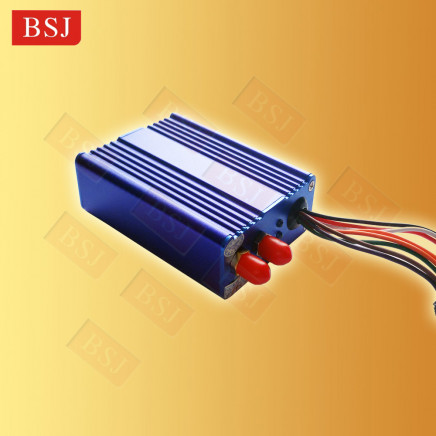

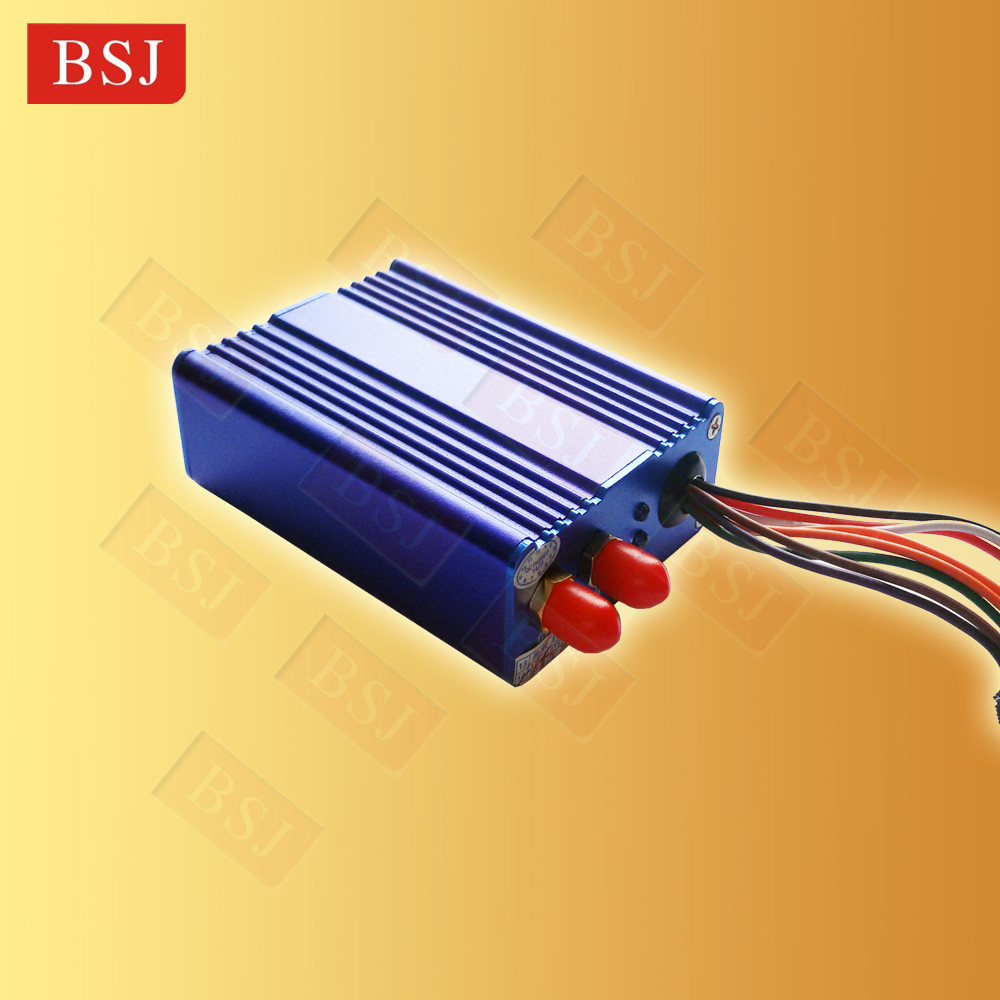

Micro GPS Transmitter Tracker Vehicle Tracking Device Quad Band

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 300/ Box

Price:US $300.0 / Box

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Jul 31, 2014 To Aug 31, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:BSJ-M10

Function:Anti-theft Warning, GSM Network Remote Real-time Monitoring, Mute Anti-theft

Type:GSM

GSM Frequency:850/900/1800/1900MHz

GPS Chipset:U-Blox

GPS Sensitivity:-159db

Position Accuracy:10-15 Meters

Size:72*55*24mm

Weight:53G

Working Voltage:DC 9V-36V

Working Current:50mA

Working Temperature:-20 to 80 Centigrade

Working Humidity:5%~95% Rh

Export Markets:Global

Additional Info.

Trademark:BSJ/Customized brand is accepted

Packing:Gift Box/Netural Box

Standard:ISO9001; CE; Rohs; CCC; SGS; COC;

Origin:Shenzhen, China.

HS Code:85311010

Production Capacity:2, 000, 000PCS/Week

Product Description

Micro GPS Transmitter Tracker Vehicle Tracking Device Quad Band

1. Features of Micro GPS Transmitter Tracker Vehicle Tracking Device Quad Band M10

Real-time GPS tracking
Real-time vehicle status monitoring
Vehicle Immobilization Control
GPS mileage report
Geo-Fence with 60 rectangle area
Car battery power cut off alarm
Anti-theft and emergency alarm
Speed alarm
Remote control via mobile phone
Parking overtime alarm
Remote firmware upgrade via GPRS
TCP/UDP dual mode communication

2. Indicator lights of Micro GPS Transmitter Tracker Vehicle Tracking Device Quad Band M10

(1) GPS light(yellow light):

Effective positioning(0.5 seconds light on/off, light quick flashing)
Invalid positioning(one seconds light on/off, light slow flashing)
Reasons: Weak GPS signal; Not search the satellite signal; Antenna disconnects( the signal lights keep lighting)
Solution: Check whether GPS antenna covered by some metal objects; Whether the copper coil of the port break off.

GPS module broken (the lights keeps lighting off)
Reasons: The lights tube broken/GPS module broken; Suggest send the terminal back to factory for repairing.

(2) GSM light (red light):

GPRS connects to the center successfully (0.5 seconds light on/off, light flashing quickly)
SIM card register GPRS failed(one seconds light on/off, light flashing slowly)
Solution: Check whether the SIM card have enough telephone charge, or whether you open the GPRS service, and check if you set the wrong IP and port.

GSM module broken/the light tube broken ( lights keeps go out)
Suggest return the terminal to factory for repairing.

No signal/can't read the SIM card (lights keeps on)
Solution: Do not truck loading in the blind area, or change another SIM card.
If these methods can't work, you can send the terminal back to factory for repairing.

3. Alarm functions of Micro GPS Transmitter Tracker Vehicle Tracking Device Quad Band M10

(1) over-speed alarm

When the car speed is more than setted data(>10km/h), Over-speed alarm will triggered. User can send a sms to diable this function.

(2) Parking overtime alarm

When the car speed is 0 and lasting longer than the setted data, parking overtime alarm will be triggered. This alarm can be disabled by a SMS.

(3) SOS alarm

When the sos button pressed for longer than 1 second, sos alarm will be triggered. This alarm can be disabled from online tracking platform.

(4) Power failure alarm

When the 12V power is disconnected(<=4V) or with low voltage(<=10V), power failure alarm or low power alarm will trigered.

Item	Parameter
Communication band	Quad-Band 850/900/1800/1900Mhz
GPS chipset	Latest U-blox high sensitivity chipset
GPS sensitivity	-159dB
Position accuracy	10-15 meters
Dimension	725524mm(LWH)
Weight	53g
Working Voltage	DC 9V-36V
Working Current	50mA
Working Temperature	-20~+80 centigrade
Working Humidity	5%~95% RH
Interface	3 digital inputs(2 negative inputs; 1 positive input), 1 digital output
