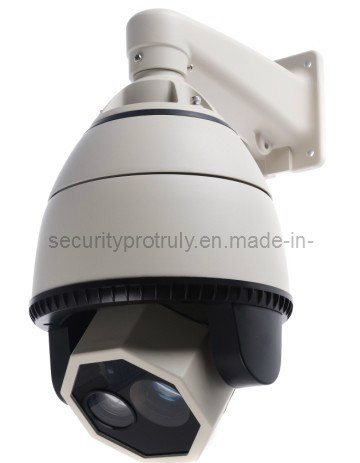

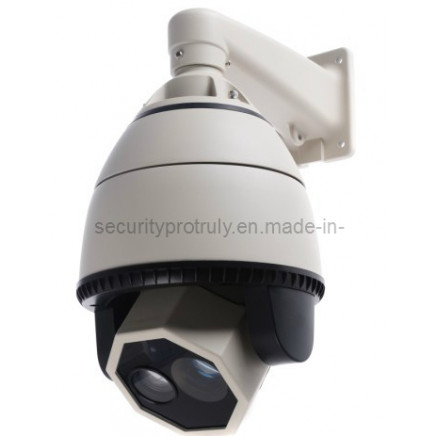

Protruly IR 150m PTZ Camera (BQL/BeJ89-270/CL)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:2 Pieces

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Western Union

Trademark:OEM/ROTRULY

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BQL/BeJ89-270/CL

Technology:Pan / Tilt / Zoom

Style:Dome Camera

Type:CCD Camera

Sensor:CCD

Horizontal Resolution:540tvl

Kind:Auto/Manual

Feature:Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC, Awb, Mask, Strong Light Inhibition, Mirror, WDR, Defog

Image Sensor:1/4" Sony CCD

Lens:3.2-86.4 Mm

OSD:Full -Screen Menu

Material:Aluminum Shell, Waterproof IP66

Effective Pixel:PAL:752(H)X582(V) NTSC:768(H)X494(V)

Iris:Auto-Iris

Export Markets:Global

Additional Info.

Trademark:OEM/ROTRULY

Standard:CE/FCC/ROHS/3C

Origin:China

HS Code:8525801390

Production Capacity:500PCS / Week

Product Description

PROTRULY 7 inch 12M IP66 high speed dome PTZ Camera with FCC and CE Certificate

HOT: 1. Real Auto-iris

Special function: AWB, MASK, DNR, Strong light inhibition, Mirror, WDR, DEFOG

Protruly PTZ camera Feature:
> Horizontal 360 ° , continuous rotation, no blind spot, automatic tracking smart dome camera series.
> Double Case protect Camera device, continuing work temperature lower than 50. º C
> Use high quality components, high & minute sub-step into TV, long life conductive slip ring, high-quality belts, stable operation, high reliability.
> Adopted domestic the most advanced "zoom and optics sync" way control IR lamp, in effect solve "electric to rch" domino effect, original creation intelligent control IR lamp on and off, utilize IR light-source in reason
> Design special camera, IR lamp sub-depot separate system, no sphere case glisten, fogging malady
> Constant voltage constant current circuit design, ensure IR lamp work in long time, long life. IR lamp life lasting to above 20000hours
> Low Power, IR effective distance 150 meters
> Optional temperature control system, suitable for working in high or low temperature environment, Science, beautiful and fixedness structure.
> Triple lighting protection technology, effectively raising the speed dome mine and anti-jamming capability.

Protruly PTZ camera Application places:
Applicable to all walks of life activities target surveillance.
Such as power systems, telecom departments, bank security, mines, intelligent building, intelligent community, city road monitoring, airports, railway stations, etc as security monitoring situation, and the fire monitoring system of image monitoring equipment.

Technical program about Sony DSP
EFFIO (Enhanced Features and Fine Image Processor. It has high resolution, high SNR and excellent Color reproduction). It was came into the market by Sony and changed into three versions later, in fact, it has four versions: Effio, Effio-E, Effio-P, Effio-S

Features of EFFIO-S:
1/3 "Sony EX-VIEW HAD II CCD with High-quality and high-sensitivity. Up to 650 tvl of horizontal resolution, high-definition images, excellent low light performance
Range of AWB, it can monitor environments with a variety of shine
WDR, apply to environment with complex ray: Doors
2D and 3D DNR., Frame accumulation mode, The minimum illumination is 0.00002lux
Multi-language OSD to meet different customer needs, enhanced DSP.

7" Outdoor/Indoor Infrared high speed dome camera (B - IR 150m series)
Madel No.	BQL/BeJ89-270/CL
Image Sensor	1/4" SONY CCD
Signal Model	PAL/NTSC
Horizontal Resolution	540TVL
Effective Pixel	PAL: 752(H)X582(V) NTSC: 768(H)X494(V)
Iris	Auto-iris
Lens	3.2-86.4 mm
Minimum Illumination	0Lux, Color to B/W
Application Environment	Indoor/Outdoor
Installation way	histing mounted , wall mounted
Housing protection	IP66
S/N Radio	? 60dB ( enhanced )
Filter	IR-CUT
Backlight Compensation	On/Off
White Balance	Auto
Electronic Shutter	PAL: 1/50~1/10000 seconds, NTSC: 1/60~1/12000 seconds
IR distance	120m IR
Optical zoom	27X
Digital zoom	Optional 10X
Focus	Auto/manual , take high-performance DSP to realize complete digital and ultra-high speed focus function.
Preset	255
Pattern scan	4 groups , each can record 200 actions
Tour scan	4 groups , every group have16 presets can join cruise, can setting the presets' residence time
Other Scan	4 groups, support horizontal scan, deuce area scan, scan random
Rotation Range	Horizontal 360° unlimited rotation, Vertical 180° , auto reversal
Rotation Speed	Horizontal & Vertical Min 0.01° /s, Max 300° /s
Camera protocols	supported SONY or CNB
Communications	RS485, PELCO D, PELCO P
Baud Rate	2400/4800/9600/19200
Dome address	255
Camera menu	8 languages
OSD	Whole screen Chinese/English menu
Special function	AWB, MASK, DNR, Strong light inhibition, Mirror, WDR, DEFOG
Power Supply	AC24V/3A, DC12V/4A
Material	Aluminum shell
Work Environment	-20 Celsius degree ~+50 Celsius degree (select temperature control accessories), < 95%RH
Light board	4 PCS45° ? 8 LED / 6 PCS10° ? 8 LED
