Protruly LCD Monitor (BQL-2055-JSNB/07D)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Western Union

Trademark:Protruly/OEM

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BQL-2055-JSNB/07D

Screen Size:55"

Application:Indoor, Advertising, Surveillance, Big-Screen Project

Feature:LED Backlight Display, With Remote Control, Support TV Function

Type:TFT

Interface Type:HDMI, VGA, S-Video, Ypb/Pr, AV

Brightness:700nits

Full HD Resolution:1920 X 1080P

Display Mode:1. Splicing to Full Screen Display by M X N. 2. Sp

Seam:5.3mm

Panel Type:Samsung Did Industrial Panel- LCD

Advantage 1st.:DVI Digital Signal Transmission

Advantage 2ND.:Embedded Imaging Processor Design

Control Ways:IR Remote Controller, RS232 of Software

Export Markets:Global

Additional Info.

Trademark:Protruly/OEM

Packing:Ply-Wooden Case Outside and A7 Carton Inside

Standard:CE, FCC, 3C Certificate

Origin:Shenzhen, China

HS Code:8529908100

Production Capacity:1000PCS/Week

Product Description

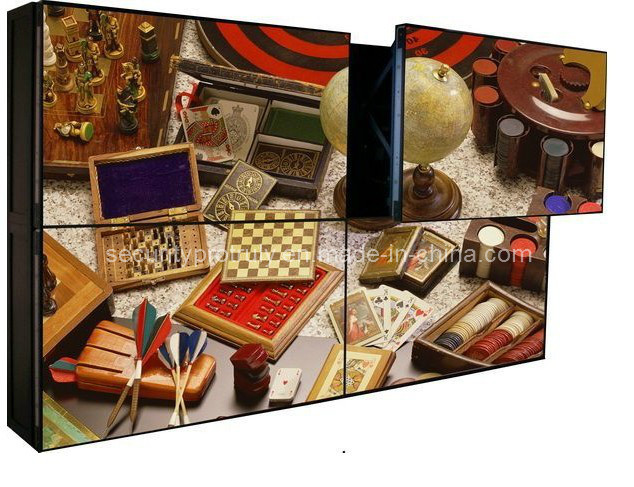

Protruly Super Narrow Bezel LCD monitor

Features:
1. Support M X N Group (Including: VGA, DVI, AV, Y/C, YPrPb, HDMI) video signal input at the same time.

LCD monitor Application Places:
1. Command Center: Convention, Sport Event.
2. Information Management Center: Airport, Station, Exhibition Hall.
3. Video Conference Center: Group Company.
4. Distributed Management Center: Gas Station, Police Station.

LCD monitor Control Software:
1. Both Chinese and English are optional.
2. Apply to Windows.

LCD monitor Display Mode:
Built- in Matrix.
1. Splicing to full screen display by M X N.
2. Splicing display by any screen.
3. Each screen with different video.

LCD monitor overview
The LCD screen adopts original Samsung industrial grade panel (DID panel, digital information display) for image processing, with high brightness up to 700CD, 3000: 1 contrast ratio and 97% color saturation. Having top image quality with high brightness and solution, wide color saturation, uniform brightness, Further more, coupled with PVA (Patterned Vertical Alignment) technology, its viewing angle goes up to 180° In horizontal and vertical direction. With 120Hz fresh frequency, the DID splicing display wall can effectively solve the smearing and fuzzy in image during moving process. And upgrades displaying effect through enhancing image clarity and contrast ratio. Completely reliving eye fatigue regardless of long time watching.

Full HD DID LCD screen with built-in FPGA hardware control system which works smoothly and with package function. Equipped with composite video, Ypb/Pr, S-VIDEO, VGA, HDMI, TV and AV port. Full HD 1920X1080P is supported. DID LCD screen is an integrated entity, free of external accessories. Easy for transportation and operation like building blocks. Any quantity LCD screens can be combined as per your needs. Such as 2× 2, 4× 4, 2 × 4, ...M× N.

2000 series has one channel digital matrix, supporting one channel signal transmission in DVI cable. The preceding signal will be replaced if one more channels signal processes simultaneously. 5000 series has four channels digital matrix, the upgraded version based on original 2000 series. Supporting up to four channels signals input and display simultaneously, no signal interference. 3000 series is vertical splicing display wall. Nearly same features with 2000 series except for display pattern

Shenzhen Protruly Electronics Co., Ltd.
Samsung DID industrial panel- LCD video wall system (One channel signal splicing 2000 series Built-in Matrix)
Features: 1. Support M x N Group (Including: VGA, DVI, AV, Y/C, YPrPb, HDMI) video signal input at the same time. Display Mode: Built- in Matrix. 1. Splicing to full screen display by M x N. 2. Splicing display by any screen. 3. Each screen with different video. Application Places: 1. Command Center: Convention, Sport Event.. 2. Information Management Center: Airport, Station, Exhibition Hall. 3. Video Conference Center: Group Company. 4. Distributed Management Center: Gas Station, Police Station. Control Software: 1. Both Chinese and English are optional. 2. Apply to Windows.



Model Parameter	BQL-2055-JSNB/07D
Screen Diagonal	55"
Size(WxHxD)mm	1215.3 x 686.1 x 120.4
Screen resolution	1920 x 1080P
Active display(HxV)	1209.6 x 680.4
Color Saturation	97%
Brightness	700cd/ square meter
Contrast ratio	3500:1
Back light	LED
Refresh Frequency	60HZ
Display Color	16.7M (8-bit)
Viewing Angle	178°
Seam	5.3mm
Input Interface	HDMI, AV, YPr/Pb, S-VIDEO, VGA,
Signal Format	NTSC, PAL, 480P, 576P, 720P, 1080I, 1080P
Control Interface	RS232 AND IR REMOTE CONTROLLER
Image Processing Technique	An orginal creation of Dynamic Super Resolution Technique will clearly display low resolution image on high resolution screen.De-interlacing Technique will eliminate flash.Dynamic value compensate,3D dynamic digital reduce sound,3D pectination filtration,10 digital brightness and increase color,image frame can select compensate and cover,full high definition signal real time processing.
Work Temperature	0 - 50
Work Humidity	15 - 75%
Power Supply.	AC220V - AC240V
Average Power	285W
Net weight	29KG
Install way	Wall hanging, Floor stand, Cabinet
Recommend Use Location	Security, control center, entertainment places, advertising, meeting center any indoor place you like.
Display Function Summarize	Manual / Timing / Cruise / Alarm plan settings, kaleidoscope display, intelligent temperature control and alarm, communication failures automatic detection. Single screen display; Full screens display; Any combination of screens display.
Acessories	Free Accessories included: DIV Cables, RS232 Cables, AC Power Cables, IR Romote, IR Receiver, Controlling Software DC, Screws for Installing Brakcet and Display, User Manual.
BUSINESS TERMS
1) Above price based on EXW.
2) Payment terms: 30% T/T deposit, rest before delivery.
3) Lead time of delivery: Within one week after payment rec'd.
4) Package: A7 carton for inner package, wooden carton for master package.
