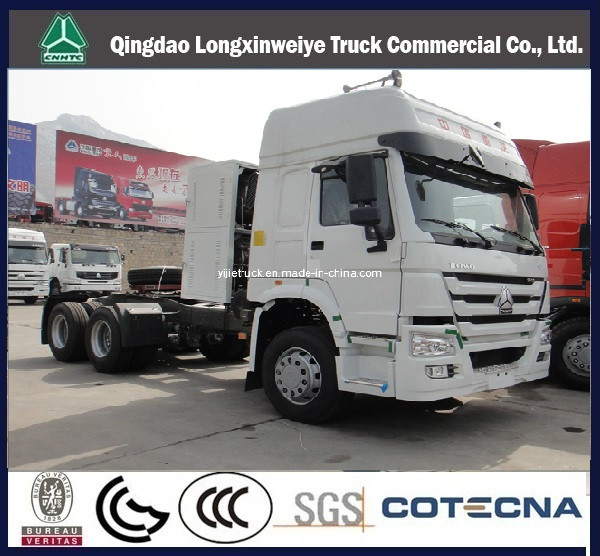

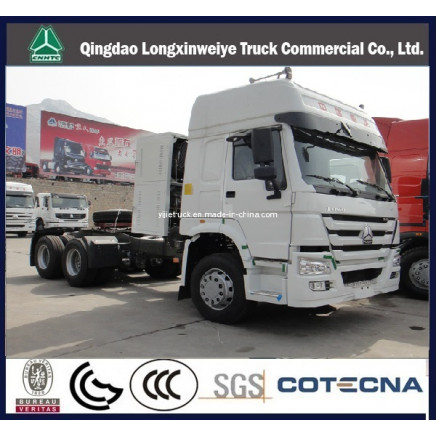

Sinotruk HOWO 6X4 336HP Diesel Engine Tractor with A/C

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 38200/

Price:US $38200.0 / Unit

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jan 12, 2015 To Apr 12, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4257N3247C

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Drive Wheel:6×4

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SINOTRUK

Packing:Nude Packing

Origin:Shandong, China

Production Capacity:6000units/Month

Product Description

Sinotruk HOWO 6X4 336HP Diesel Engine Tractor with A/C

Qingdao Longxiweiy Truck Commercial Co., Ltd. Is located in Qingdap City, the capital of Shandong Province, P. R. China. It is the exporting department of CNHTC (China National Heavy Duty Truck Group Co., Ltd. )

With more years' developing, we specialize in exporting SINOTRUK series trucks such as dump trucks, cargo trucks, tractor trucks, special-using trucks and semi-trailers.

We have been exporting trucks and construction machineries to many countries across the world. The products we export have attained many certifications such as ISO9001, ISO14001, CE, EU, GOST. They enjoy a high reputation for their high quality and competitive price.

Now we are cooperating with foreign customers around the world to establish sales and service organization in Africa, Southeast Asia, South American, Middle East and Eastern Europe.

Adhere to the concepts of belief, preciseness, diligence, progress and innovation, we will spare no efforts to dedicate ourselves to the satisfaction and benefit of our customers. Please just send us your inquiry with detailed specification and quantity, we will then send you our breathtaking offer immediately. You are assured of our best-quality products and the strongest support.

The faster movement will definitely make you get more market share and profits!

HOWO 6x4 Tractor Configuration And Parameter(Euro II)
Cabin		HW76(extended cabin, one bunk, adjustable steering wheel, VDO panel, control module, safe belt with two locks, outer sun shade, cold A/C
Engine	Model	WD615.69
	Rated power	247kw/2200rpm
	Max. torque	1350nm/rpm
	Discharge	9.726L
	Type	6 cylinder, inline, turbo charger inter cooled, 2 valves, postposition supercharger
Gear box		Diameter 430 single plate diaphragm, hydraulic with air assist
Transmission		HW15710, 10 speeds, main and auxiliary box structure, main box double counter shaft Planetary reducer
Front axle		HF7 drum rated loading 7 tons
Rearing driving axle		HW1697 single reduction
Suspension		Front and rear suspension are semi-elliptic leaf springs+shock absorber+stabilizer
Steering system		ZF8098 steering gear box, ZF power steering pump, system pressure 18MPa
Brake system		Driving brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating at rear wheel Auxiliary: EVB+engine exhaust(ABS is available)
Electric system		CAN bus control, voltage 24V, alternator 1540W; starter 7.5KW, battery 12V/165Ah, 2 pieces
Tire		12.00-20(12.00R20 steel wire tire)
Fuel tank capacity		400L
Payload		9180kg
Gross vehicle weight		25000kg
Overall size		6800x2496x2958(mm)
Axle base		3200+1400
Front/rear suspension		1500/725(mm)
Wheelbase		2022/1850
Min. Ground clearance		267mm
Approach/departure angle		16/70º
Max. speed		102km/h
Max. Climbing capacity		20%
Min. Turning circle		15m
Fifth wheel size		50#
