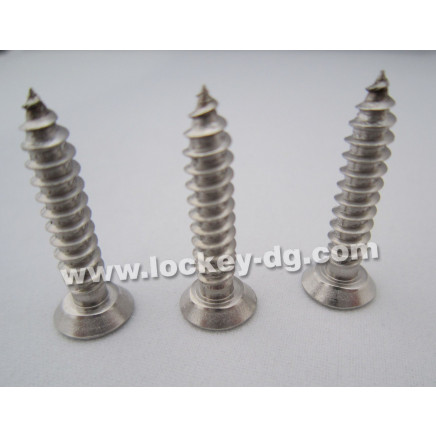

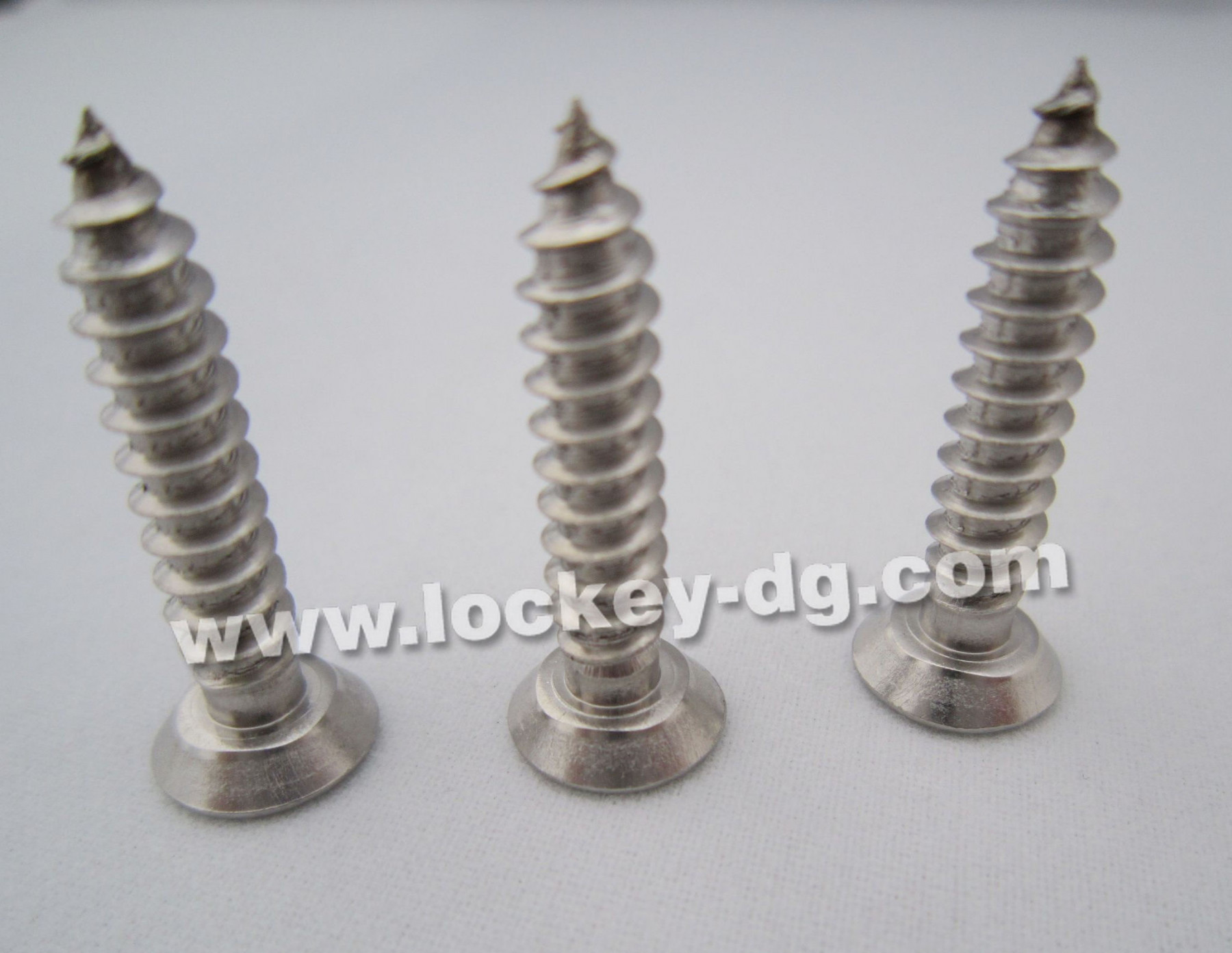

Stainless Steel Flat Head Undercut Self Tapping Screw

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.012 - $0.015 / Piece

Min. Order (Pieces)	Unit Price
10000.0	US $ 0.015/ Piece
1000000.0	US $ 0.012/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jun 05, 2015 To Oct 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LKSR

Material:Stainless Steel, Alloy Steel, Steel, Brass

Type:Flat Head Undercut

Groove:Cross

Connection:Tap

Head Style:Round

Standard:DIN, GB, ANSI, BSW, JIS

Grade:to Standard

Market:Global

Sample:Free (If in Store)

Surface:Passivated

Specification:Drawings

Special Features:Undercut

Thread Style:Right Hand

Certificate:ISO9001/Ts16949

Additional Info.

Trademark:LK

Packing:Bulk Pack, Small Box Packing

Standard:DIN, ANSI, ISO and Non-Standard

Origin:China

HS Code:7318

Production Capacity:500 Ton/Month

Product Description

Stainless Steel Flat Head Undercut Self Tapping Screw
1> Description: Stainless Steel Flat Head Undercut Self Tapping Screw
2> Material: Carbon Steel, Stainless Steel
3> Surface: Zinc Plated, Painted.......Passicvated
4> Size: 2.5mm (#6) up to 6.3mm (#14)
5> Length: Up to 150mm (6 Inch)
6> Head style: Pan Head, Flat Head, Hex Head, Oval Head, Truss Head......
7> Drive size: Phillips, Slotted, Pozi, Six-lobe, Square......
8> Packing: Bulk packing, box packing & to customer's requested.

Main products include, but not only,
Chipboard Screw,
Drywall Screw,
Self tapping Screw(Sheet Metal Screw),
Self-drilling Screw,
Concrete Screw,
Furniture Screw (Connecting Bolt),
Plastic Screw,
Deck Screw,
Wood Screw etc.

Quotation will be sent shortly afetr getting your inquiry.

Technical Delivery Conditions
Material	Steel	Stainless steel
General requirements	As specified in DIN 267 part 1
Screw thread and thread ends	As specified in DIN 7970
Cross recesses	As specified in DIN 7962
Mechanical properties and Material	As specified in DIN 267 part 12

Limit deviations geometrical tolerance	Product grade A as specified in ISO 4759 part 1
	ISO 4759 Part 1
Surface finish	As processed	Bright
	DIN267 Part 2 shall apply with regard to surface roughness
	DIN267 Part 19 shall apply with regard to permissible surface discontinuities
	DIN267 Part 9 shall apply with regard to electropiating
	Other type of surface protaction being suject to agreement
Acceptance inspection	DIN267 Part 5 shall apply with regard to acceptance inspection

Additional Information
