Top Selling Steel-Bars Truss Deck Sheet for Floor/ Country House

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$15.5 - $68.8 / Square Meter

Min. Order (Square Meters)	Unit Price
1000.0	US $ 15.5-68.8/ Square Meter

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jul 31, 2014 To Oct 31, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Model NO.:TD70-TD200

Type:Steel Plate

Technique:Cold Rolled

Standard:GB

Surface Treatment:Galvanized

Special Use:High-strength Steel Plate

Application:Ship Plate, Flange Plate, Decking Sheet

Place of Origin:Xiamen China(Mainland)

Brand:Sxgg

Model Number:Td1-70 to Td7-270

Steel-Bars Truss Deck Sheet Thickness:From 100mm to 300mm

Height of Truss:From 70mm to 270mm

Sheet Plate Thickness:>=0.5mm

Effective Width:<11.8m

Describtion:ASTM A653m, Zn>=60

Steel-Bar Truss Spacing:188mm

Export Markets:Global

Additional Info.

Trademark:Shengxin JKS

Packing:Seaworthy, as Customer?s Requirement

Origin:Xiamen China

Production Capacity:10000ton/Per Month

Product Description

Factory Supply Steel Reinforced Truss Deck At Cheap Price

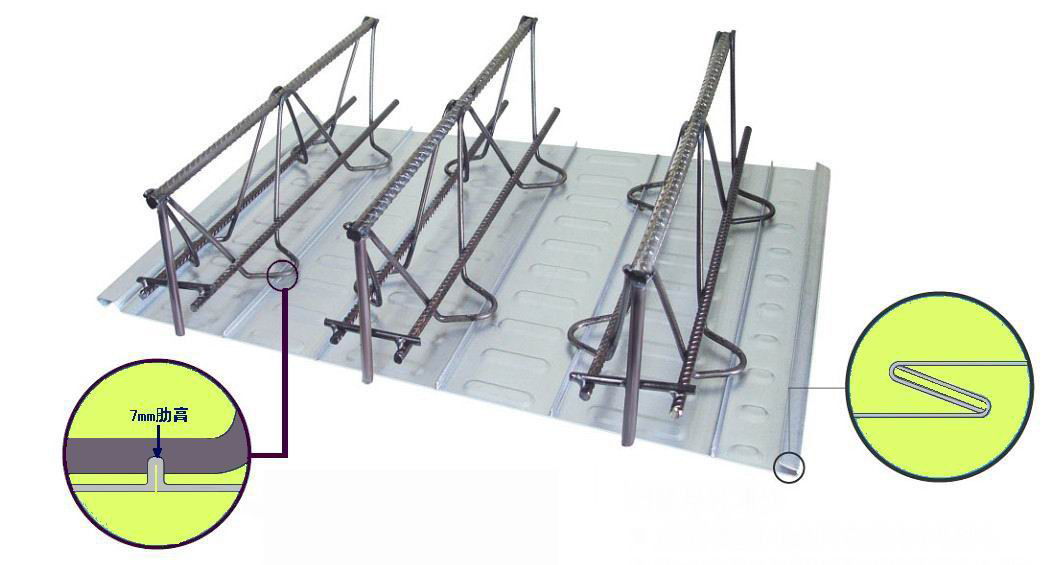

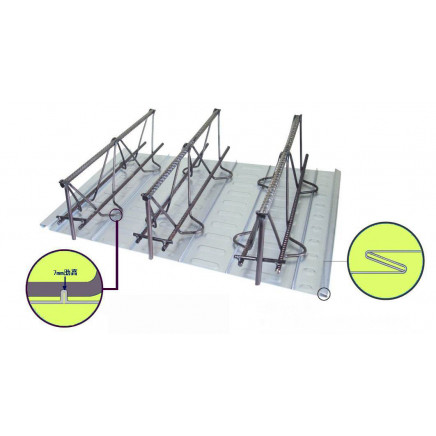

Steel bar truss decking is a composite of corrugated sheet and steel bar truss which replace wooden template to bear all the construction loads in the construction phase and participate in bearing structure load in the service stage. Composite deck is floor deck which replace all or part of the force steel bar and work together with concrete to in service stage, while steel sheet of steel truss deck does not participate in bearing structure load, it, s non-composite deck.

Effective width: 576mm
Maximum length: 1m-11.8m
Steel truss deck sheet height: 100mm-300mm
Steel truss height: 70mm-270mm
Top and bottom bar diamerer: "6mm-12mm
Brace bar diameter: 4mm-8mm
Decking thickness: Galvanized steel sheet 0.5mm, 0.75mm;

Application area
Large board structure, Multi-layer buildings, slab of reinforced concrete structures
Lower board structure leaning roofing, Housing steel structure

Advantages
Economy: The mode of truss is reasonable with low price and has an obvious
Advantage in this area; Can be designed as double-sides deck.
Convenient: Shorten the project comstruction time, reduce temporaty support.
Security: Good performance of cracking resistance and fire resistance;
Reliability: Good property to prevent earthquake.
