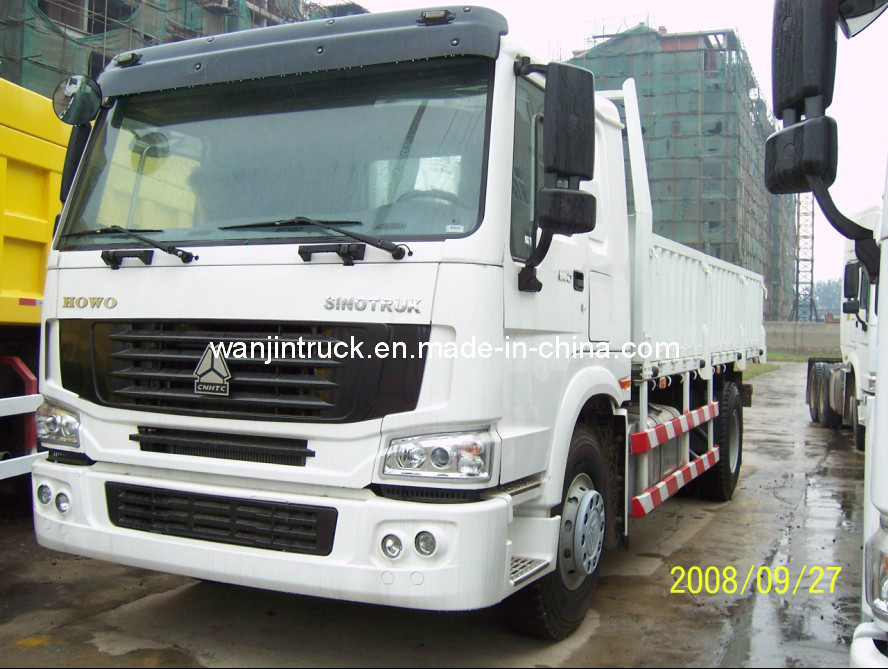

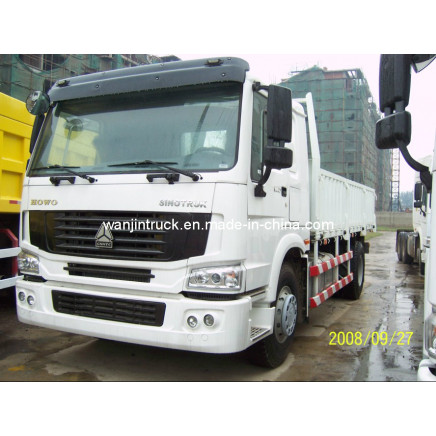

Model
| ZZ1167M4617
|
Engine
| Make: SINOTRUCK
Diesel:4-stroke direct injection, diesel engine
Engine model:WD615.69, Euro e mission standard
6-cylinder in-line with water coolingh,turbo-charging and intercooling
Maximum output:371hp(273kw) at 2200 rpm according to DIN
Maximum torque:1450Nm at 1300-1600rpm
Bore:126mm
Stroke:130mm
Mean piston speed:9.5m/s
Compression ratio :17.5 :1
Specification fuel consumption:197g/kwh
Engine oil filling quantity:19L
Cooling system filling quantity(long term filling):40L
Thermostat with 71 degree opening begin:
|
Clucth
| Single-plate dry coil-spring clutch, diameter 420mm,hydrqulically operating with air assistance
|
transmission
| Model:HW9,synchromesh,9 forward &1 reverse
|
Propeller shaft
| Double universal joint propeller shaft with gear-shaped coupling flange
|
Front axles
| Steering with double T-cross section beam
|
Rear axles
| Pressed axle housing,central single reduction with hub reduction and with differential locks between wheels and axles
|
Chassis
| Frame: U-profile parallel ladder frame with section of 300*80*8mm,all cold riveted cross members
From suspension;9 semi-elliptic leaf springs wth width of 90mm,hydraulic telescopic double-action dhock absorbers and stablilizer
Rear suspension:15 leaf semi-elliptic springs with width of 90mm and bogic spring
Aluminum fuel tank:300 litre capacity,with locking fuel cap,fitted to the off side of the chassis
|
Steering
| ZF power steering. Model ZF8098,hydraulic steering with power assistance
|
Brakes
| Service brake: dual circuit compressed air brake
Parking brake(emergency brake):spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
|
Wheel types
| Rims:8.5-20,10 hole-steel
Tyres:12.00-20 Nylon tires
|
Drivers cab
| Standard cab, all-steel forward control,70 degree hydraulically titable on the front,2-arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable drivers seat and rigid adjustable co-drivers seat ,with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts, adjustable steering, air horn and air conditioner
|
Electrics
| Operating voltage:24V,negative grounded
Starter: 24V,7.5kw according to ISO 8856 at temperature of 20 degree
Alternator:3-phrase,28V,1540W
Batteries:2*12V,135Ah/180Ah
Cigar-lighter,horn,headlamps,brake lights, indicators and reverse light
|
Instrument panel
| Active check central controller with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging
|
Dimension in mm
| Wheel base 4600mm
Front overhang 1500mm
Rear overhang 2277mm
Approach angle 23
Departure angle 15
Length*width*height 6065*2300*600
|
Weight in kg
| Permissible loading capacity 8010kg
Gross vehicle weight 16000kg
Total mass 7860kg
Rear axles loading capacity 13000
|
Performance
| Maximum driving speed(km/h) 102
Fuel consumption(1/100km) 262 |
